Control valve actuators are vital components of fluid management systems, enabling precise control over the flow, pressure, and temperature of various fluids. The selection of an actuator, whether pneumatic, hydraulic, electric, or manual, is a critical process that can directly impact the performance, safety, and efficiency of an operation. This detailed guide delves into the types of actuators available, the considerations for choosing the right actuator, and the technical aspects to ensure proper sizing and compatibility.
Understanding Control Valve Actuators
Actuators serve as the mechanism that converts control signals into mechanical motion, enabling the movement of a valve to regulate flow. These devices are integral to automation and process control in industries such as oil and gas, chemical processing, water treatment, and HVAC systems.
Control valve actuators fall into several categories based on their power source and motion type. Here are the primary types:
Types of Valve Actuators
1. Pneumatic and Hydraulic Actuators (Fluid Power) – Quarter-Turn
Designed for valves that require a 90-degree rotation, such as butterfly and ball valves.
Operated using compressed air or hydraulic fluid, these actuators offer fast response and precise control.
2. Pneumatic and Hydraulic Actuators (Fluid Power) – Multi-Turn
Best suited for multi-turn valves, such as globe or gate valves.
These actuators are ideal for high-torque applications and allow for slower, controlled operation.

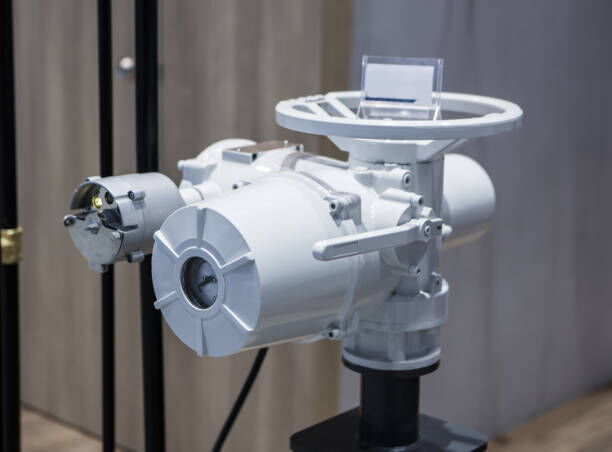

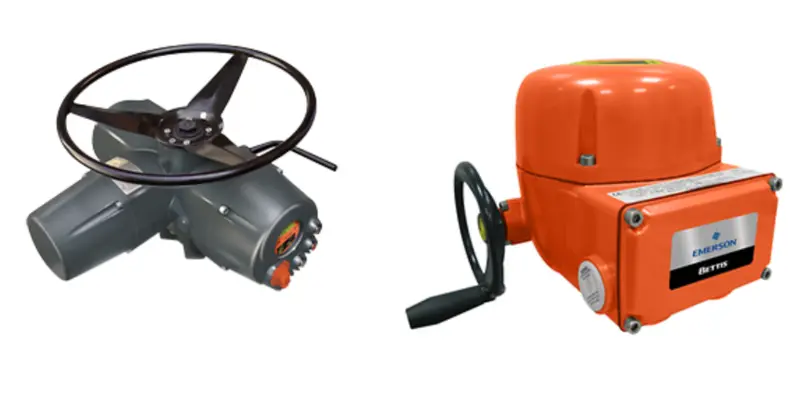

3. Electric Actuators – Multi-Turn
Commonly used with globe and gate valves in automated systems.
Electric actuators are valued for their precise operation and seamless integration into electronic control systems.
4. Electric Actuators – Quarter-Turn
Typically used for ball and butterfly valves, these actuators provide reliable performance with minimal maintenance.
They are often preferred in applications requiring compact design and electric control.
5. Manual Actuators
Operated by handwheels or levers, manual actuators are used in applications where automation is unnecessary or as a backup.
They are simple, cost-effective, and suitable for emergency or maintenance operations.
Key Factors in Selecting Control Valve Actuators
The correct selection of a control valve actuator involves evaluating multiple factors to ensure optimal performance, durability, and safety. Below are the critical considerations:
1. Maximum Differential Pressure and Allowable Differential Pressure
The differential pressure across a valve is a crucial parameter in selecting an actuator. Manufacturers provide differential pressure range sheets in their catalogs to assist in the selection process.
Understand Differential Pressure Limits
Determine whether the valve’s maximum allowable differential pressure falls within the actuator’s specified range.
Match with Standard Actuator
If the valve’s maximum differential pressure is less than the allowable range, a standard actuator is sufficient.
Adjust for Higher Pressures
If the valve’s maximum differential pressure exceeds the allowable range, consider modifying the trim design, increasing actuator thrust or torque, or selecting a specialized actuator.
Example:
For single-seated globe valves, differential pressure ranges differ based on the type of seat—soft or metal. Ensure the actuator is appropriately rated to handle the specific configuration.
2. Electric Actuator Sizing for Control Valves
Electric actuators are increasingly popular for their precision and ease of integration with modern control systems.
Match Thrust Requirements
The thrust of the electric actuator should be equal to or slightly greater than that of the pneumatic actuator.
Verify Compatibility
Check actuator specifiations to ensure seamless operation with the valve under all conditions, especially at maximum differential pressure.
3. Outlet/Downstream Pressure for Control Valve Actuator Sizing
Proper estimation of outlet or downstream pressure is critical for accurate actuator selection, particularly for pneumatic systems. Two common methods to estimate outlet pressure are:
Method A
For valves with an inlet pressure of less than 100 bar (e.g., P1 = 70 bar), assume the outlet pressure to be approximately 0 bar. For inlet pressures above 100 bar, use atmospheric pressure or the pressure at the liquid level to estimate outlet pressure.
Method B
Calculate the outlet pressure using the formula:
Actual Outlet Pressure=Inlet Pressure−Differential Pressure
These methods ensure that the selected actuator provides the necessary force or torque to handle the process conditions.
4. Consider Valve and Process Requirements
Flow Control Precision
Select actuators that offer smooth and precise positioning to achieve desired flow characteristics.
Environmental Conditions
Consider factors such as temperature, humidity, and exposure to corrosive substances when choosing an actuator.
Operating Speed
Evaluate the required speed of valve operation. Pneumatic actuators are generally faster, while electric actuators offer better control.
Steps for Selecting the Right Control Valve Actuator
Evaluate Process Conditions
Assess flow rate, pressure, temperature, and other operating conditions.
Choose the Appropriate Actuator Type
Select between pneumatic, hydraulic, electric, or manual actuators based on process requirements and system capabilities.
Size the Actuator Correctly
Ensure the actuator has adequate thrust or torque to operate the valve under maximum differential pressure.
Check Compatibility
Verify that the actuator’s mounting and control signal interface are compatible with the valve and control system.
Account for Safety and Redundancy
Consider fail-safe features, such as spring-return mechanisms, to ensure safe operation during power loss or system failure.
Why Partner with Professional Manufacturers?
The selection, assembly, and testing of control valve actuators involve dozens of intricate steps. Partnering with a professional manufacturer ensures:
Expert Guidance
Receive tailored advice on actuator and valve selection for your specific application.
High-Quality Components
Access actuators and valves built to industry standards with superior materials and craftsmanship.
Comprehensive Testing
Manufacturers conduct rigorous testing to verify the compatibility and performance of the actuator-valve assembly.
Relying on experienced manufacturers reduces the risk of system failures and ensures optimal performance, compared to working with low-cost traders who may lack technical expertise.
Conclusion
Choosing the right control valve actuator is a critical process that demands careful consideration of differential pressure, actuator type, outlet pressure, and process requirements. Pneumatic, hydraulic, and electric actuators each have unique strengths suited to specific applications, while proper sizing and compatibility checks ensure reliable performance.
By collaborating with a professional manufacturer, you gain access to expert guidance, high-quality products, and comprehensive support, ensuring your system operates efficiently and safely.
Investing in the right actuator today ensures long-term reliability, better process control, and improved system efficiency for your operations.
