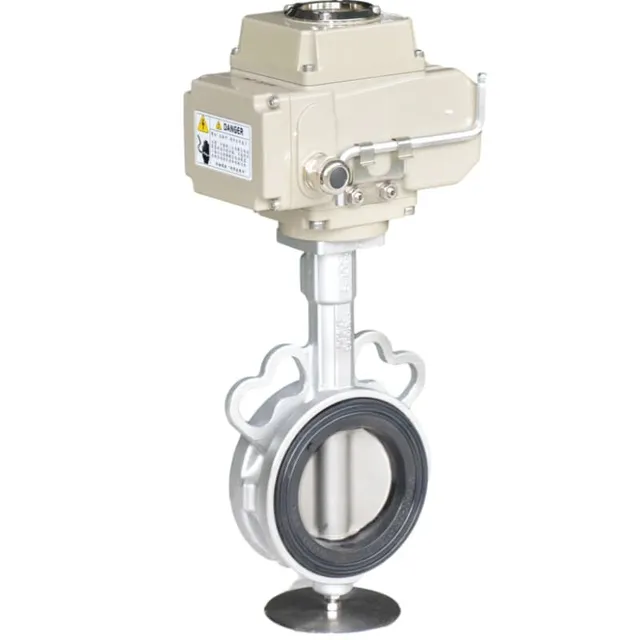

Stainless Steel Electric Control Valve, On/Off, DN50-DN1000
Key Specifications / Features
Hits: 1
As an exporter of stainless steel electric control valves, we offer a comprehensive range of benefits. Our valves provide reliable On/Off control, ensuring seamless operation in various industrial applications. Crafted from high-quality stainless steel materials, including A351 CF8 and CF8M, they boast exceptional durability and corrosion resistance. Available in sizes ranging from 2 to 40 inches and designed to withstand Class 150 LB pressure ratings, our valves offer versatility and performance. With options for wafer and lug ends, they cater to diverse installation requirements. Additionally, our valves feature explosion-proof capabilities, ensuring safety in hazardous environments.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Stainless Steel Electric Control Valves
Key Features: On/Off, Explosion-proof, Motorized Actuator
Body Material: Stainless Steel, ASTM A351 CF8, CF8M, CF3M
Disc: Duplex Stainless Steel (UNS S32750), 1.4529 (Alloy 926, UNS N08926), Stainless Steel, ASTM A351 CF8, CF8M, CF3M
Seat: NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), VITON (Fluorocarbon Rubber)
End Connection: Wafer, Lug
Size Range: 2 Inch - 40 Inch, DN50-DN1000
Pressure Rating: PN10-PN16, Class 150 LB
End:
EN 1092: PN6, PN10, PN16
ASME Class 150 LB
AS 4087 PN10, PN16
JIS 5K, 10K
Medium: Gas, Water and Oil, etc
Electric Actuator: On/Off, Adjustable Type
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
Optional:
Explosion-proof actuator: Exd II CT5, Exd II BT5
Product Name: Stainless Steel Electric Control Valves
Key Features: On/Off, Explosion-proof, Motorized Actuator
Body Material: Stainless Steel, ASTM A351 CF8, CF8M, CF3M
Disc: Duplex Stainless Steel (UNS S32750), 1.4529 (Alloy 926, UNS N08926), Stainless Steel, ASTM A351 CF8, CF8M, CF3M
Seat: NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), VITON (Fluorocarbon Rubber)
End Connection: Wafer, Lug
Size Range: 2 Inch - 40 Inch, DN50-DN1000
Pressure Rating: PN10-PN16, Class 150 LB
End:
EN 1092: PN6, PN10, PN16
ASME Class 150 LB
AS 4087 PN10, PN16
JIS 5K, 10K
Medium: Gas, Water and Oil, etc
Electric Actuator: On/Off, Adjustable Type
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
Optional:
Explosion-proof actuator: Exd II CT5, Exd II BT5
Drawing of Butterfly Control Valve
