Pneumatic Globe Control Valve, PN16-PN100, ASTM A216 WCB
Key Specifications / Features
Hits: 1
The pneumatic globe control valve consists of an actuator and an adjustment mechanism. The actuator provides thrust based on control signal pressure to move the adjustment mechanism. The valve body regulates flow, pressure, and temperature by contacting the medium directly. Key features include simple control, rapid response, intrinsic safety, and no need for explosion-proof measures. Widely used in petroleum, chemical, electric power, and metallurgy industries, it boasts a simple structure, high torque, explosion-proof design, reliable sealing, and easy installation. The valve minimizes friction, corrosion, and emissions while ensuring high vibration resistance and precise flow control with a streamlined fluid channel.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Pneumatic Globe Control Valve
Key Features: Single Seat, Cost-Effective, Explosion-proof
Size Range: 3/4 Inch - 8 Inch, DN20-DN200
Pressure Rating: PN16-PN100, Class 150 LB - 600 LB
Materials: ASTM A216 WCB, SS 304, SS 316, SS 316L, HT200, ZG25I, ZG1Cr18Ni9, ZGOCr17Ni12Mo2, 1.25Cr0.5Mo, 5.0Cr0.5Mo, SCPH21, Ti
Inherent Regulation Ratio: 50:1
Service Temperature: -100°C to -60°C, -200°C to -100°C, -250°C to -200°C
Ambient Temperature: -30°C to 70°C
Air Supply Pressure (KPa): 0.14, 0.25, 0.40
Spring Range (KPa): 20 to 100(Basic Type), 40 to 200, 80 to 240
Connection Thread:
G1/4 Inch: BSPP (parallel) thread, 1/4 inch nominal diameter, 19 TPI.
M16x1.5: Metric thread, 16 mm nominal diameter, 1.5 mm pitch.
Product Name: Pneumatic Globe Control Valve
Key Features: Single Seat, Cost-Effective, Explosion-proof
Size Range: 3/4 Inch - 8 Inch, DN20-DN200
Pressure Rating: PN16-PN100, Class 150 LB - 600 LB
Materials: ASTM A216 WCB, SS 304, SS 316, SS 316L, HT200, ZG25I, ZG1Cr18Ni9, ZGOCr17Ni12Mo2, 1.25Cr0.5Mo, 5.0Cr0.5Mo, SCPH21, Ti
Inherent Regulation Ratio: 50:1
Service Temperature: -100°C to -60°C, -200°C to -100°C, -250°C to -200°C
Ambient Temperature: -30°C to 70°C
Air Supply Pressure (KPa): 0.14, 0.25, 0.40
Spring Range (KPa): 20 to 100(Basic Type), 40 to 200, 80 to 240
Connection Thread:
G1/4 Inch: BSPP (parallel) thread, 1/4 inch nominal diameter, 19 TPI.
M16x1.5: Metric thread, 16 mm nominal diameter, 1.5 mm pitch.

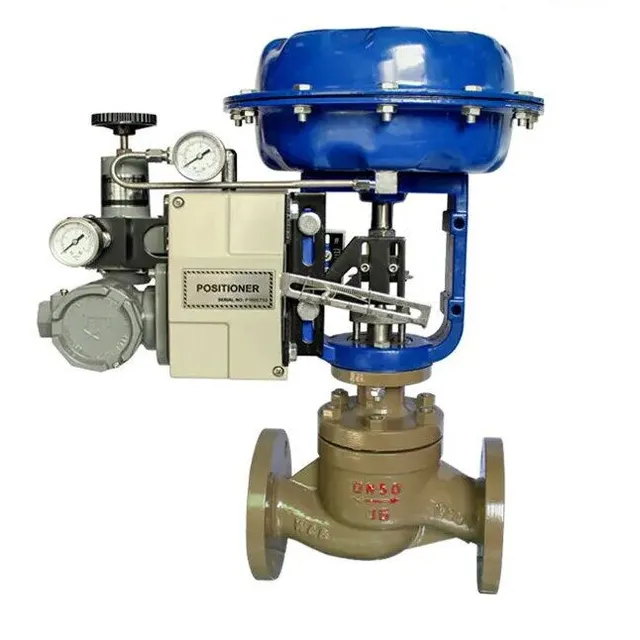

Pneumatic Globe Control Valve

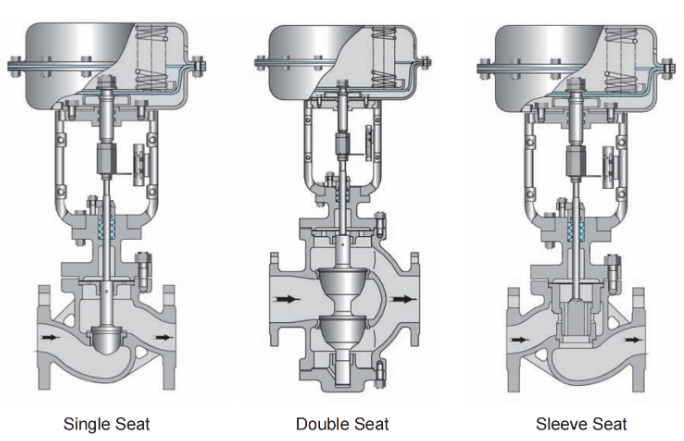

Dimension of Pneumatic Globe Control Valve
Dimension of Pneumatic Globe Control Valve
