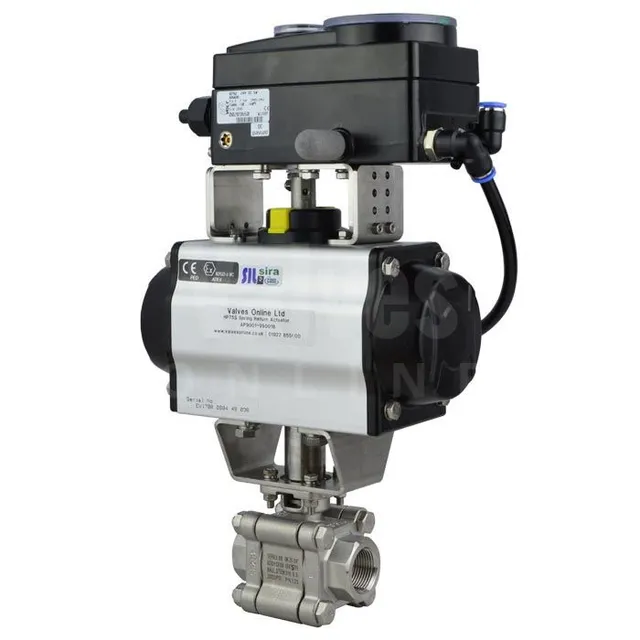

Pneumatic V Sector Ball Control Valve, 1/2-3 IN, A351 CF8M
Key Specifications / Features
Hits: 0
Our Pneumatic V Sector Ball Control Valve is a robust, compact solution designed to meet stringent process flow demands. Ideal for commercial and industrial applications, it features a high-performance modulating ball valve, a durable pneumatic actuator, and an advanced positioner.
At its core is a heavy-duty, fully encapsulated 3-piece stainless steel ball valve with 50% stainless steel / 50% PTFE filled seats, ensuring reliable performance and longevity. This valve excels in maintaining flow rates in continuous or batch processing, controlling liquid filling line pressures, and adjusting heat exchanger temperatures with steam feed lines.
Setting up and programming is straightforward with the self-auto tune positioner, accommodating 4-20mA or 0-10 volt input signals. Available with a choice of 30°, 60°, or 90° V-notch balls, it offers versatility to suit various flow control needs.
Request a quote
Tags
Detail Information
Technical Attributes
Product Name: V Sector Pneumatic Ball Control Valves
Key Features: Pneumatic Actuator, V Sector, High Flows, Spring Return
Sizes: 1/2 Inch (DN15), 3/4 Inch (DN20), 1 Inch (DN25), 1 1/4 Inch (DN32), 1 1/2 Inch (DN40), 2 Inch (DN50), 2 1/2 Inch (DN65), 3 Inch (DN80)
Pressure Range: 1/4-1 Inch 2000 PSI, 1-1/4-3 Inch 1500 PSI
Body Material: ASTM A351 CF8M, Stainless Steel
Seat Material: 50% Stainless Steel / 50% PTFE
Ball Material: SS 316
Stem: SS 316
Bolt/Nut: SS 304
Joint Gasket: PTFE
Stem Seal: RTFE
Design: 3 Piece, Full Bore, Female x Female

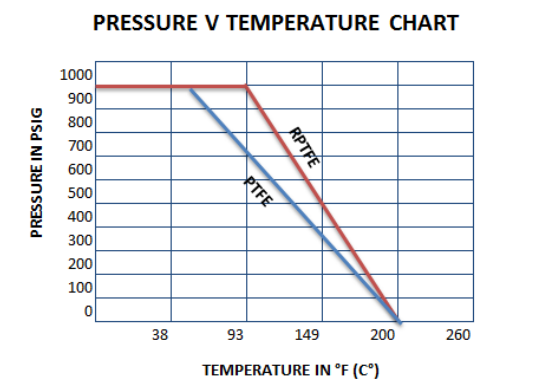

Temperature Range: -20°C to +200°C
Media: Liquid, Steam / Gas
Control Technology: V Sector
Features
1. Robust pneumatic actuator for enhanced power
2. Advanced positioner for precise control
3. Stainless steel valve body for durability and corrosion resistance
4. Seats filled with 50% stainless steel and 50% PTFE for optimal sealing
5. BSP screwed connection for secure installation
6. Available with 30°, 60°, or 90° V-notch ball for versatile flow control

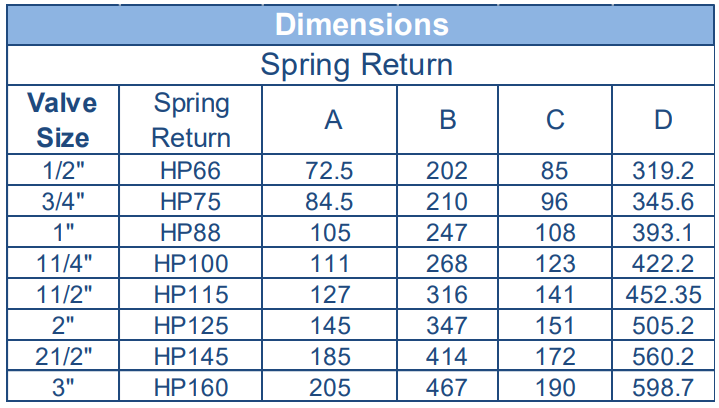

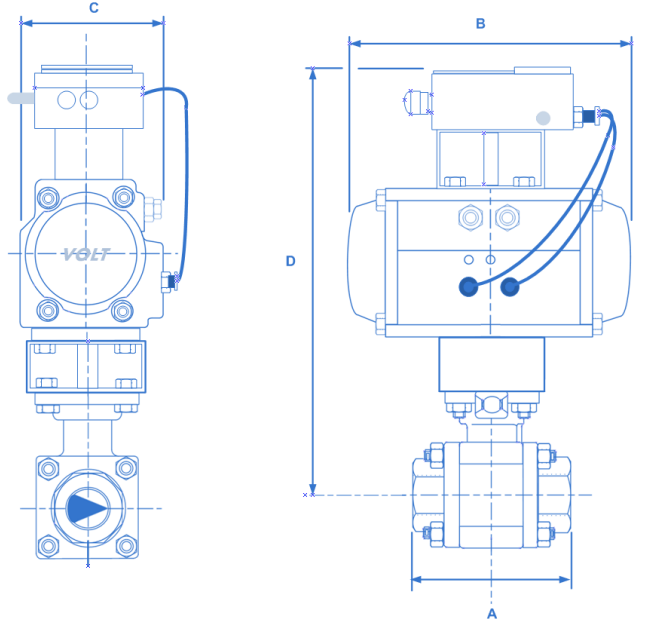

Dimensions
