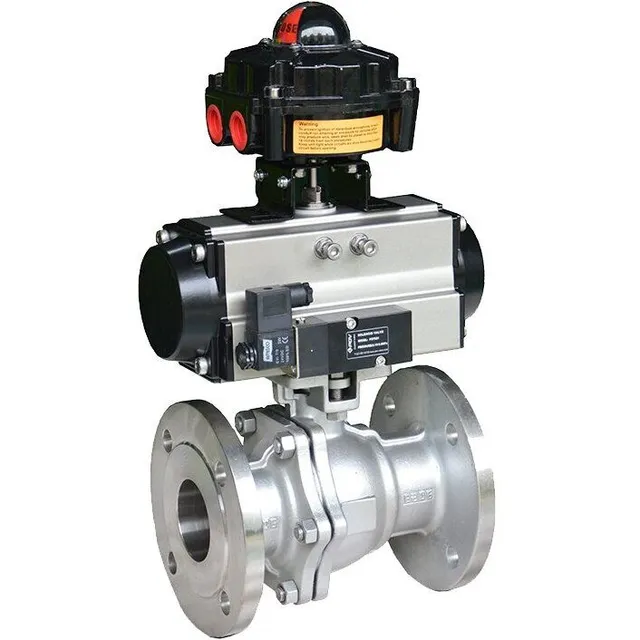

ASME B16.34 Pneumatic Ball Control Valve, 1/2 IN, PN10-PN40
Key Specifications / Features
hits: 1
Introducing our Pneumatic Control Valve, expertly manufactured using lost-wax casting for superior precision and durability. This valve is designed with fire-safe and anti-static features, ensuring maximum safety and reliability in your operations. Available in sizes ranging from 1/2 to 8 inches and pressure classes 150 LB and 300 LB, it meets stringent standards such as API 608 and ASME B16.34. With flanged connections for easy installation, this control valve is perfect for various industrial applications, providing exceptional performance, enhanced safety, and long-lasting reliability. Choose our valve for unmatched quality and peace of mind.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Pneumatic Ball Control Valve
Design Standard: GB/T 12237/1989, ASME B16.34, API 608, DIN 3357/1, EN 12516-1
Design Features: Lost-wax, Fire Safe, Anti-static, Blow-out Proof Stem
Size Range: 1/2 Inch - 8 Inch, DN15-DN200
Pressure Rating: Class 150 LB, Class 300 LB, PN10-PN40
Materials: ASTM A351 CF8, CF8M, CF3M, ASTM A216 WCB, SS 316L, SS 316, SS 304, SS 304L
Ball: SS 316L, SS 316, SS 304, SS 304L
Working Tempearature: -46°C to 343°C
End:
ASME B16.34 Class 150 LB, ASME B16.34 Class 300 LB
DIN PN16, PN25, PN40
JIS 10K, 20K
Seat: PTFE, TFM1600, PEEK
Pneumatic Actuator: Double Acting, Single Acting Normally Closed, acting, Single Normally Open
Medium: Gas, Water and Oil, etc
Option: Olenoid valve, Limit Switch Box , Filter, E/P positioner, Hand Wheel
Product Name: Pneumatic Ball Control Valve
Design Standard: GB/T 12237/1989, ASME B16.34, API 608, DIN 3357/1, EN 12516-1
Design Features: Lost-wax, Fire Safe, Anti-static, Blow-out Proof Stem
Size Range: 1/2 Inch - 8 Inch, DN15-DN200
Pressure Rating: Class 150 LB, Class 300 LB, PN10-PN40
Materials: ASTM A351 CF8, CF8M, CF3M, ASTM A216 WCB, SS 316L, SS 316, SS 304, SS 304L
Ball: SS 316L, SS 316, SS 304, SS 304L
Working Tempearature: -46°C to 343°C
End:
ASME B16.34 Class 150 LB, ASME B16.34 Class 300 LB
DIN PN16, PN25, PN40
JIS 10K, 20K
Seat: PTFE, TFM1600, PEEK
Pneumatic Actuator: Double Acting, Single Acting Normally Closed, acting, Single Normally Open
Medium: Gas, Water and Oil, etc
Option: Olenoid valve, Limit Switch Box , Filter, E/P positioner, Hand Wheel

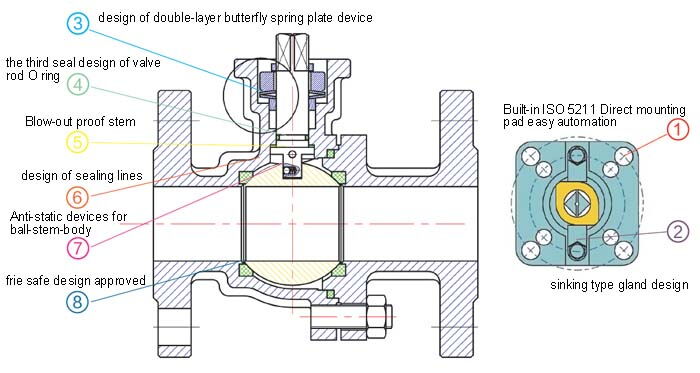

Drawing of Ball Control Valve
Drawing of Ball Control Valve
Drawing of Ball Control Valve
