High Flows On/off Ball Control Valve, 2-12 Inch, 150-600 LB
Key Specifications / Features
Hits: 0
This high-flow ball control valve is engineered for both on/off and throttling applications, accommodating high flow rates with its V-ball design. Available in sizes ranging from 2 to 12 inches and pressure ratings from Class 150 to 600 LB, it is constructed from ASTM A352 LCC, ASTM A216 WCB, or ASTM A351 CF8M materials. The valve features a standard ball with a triangular wedge shape, enabling precise control and reliability in diverse industrial settings. Compatible with various actuators, it ensures versatile performance in both on/off and throttling operations.
Request a quote
Tags
Detail Information

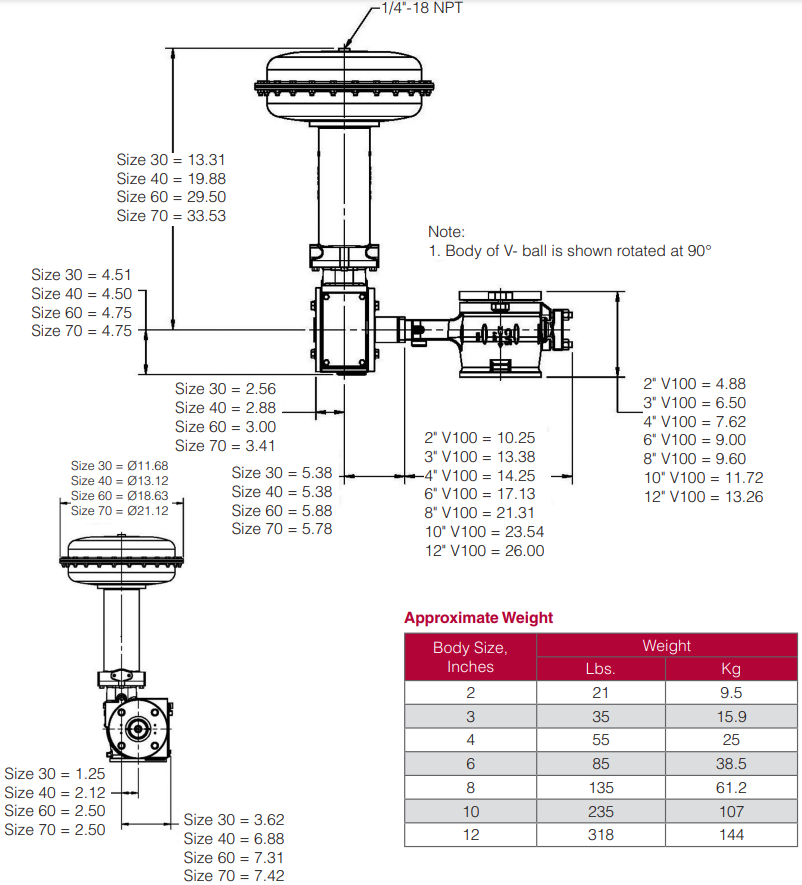

SPECIFICATIONS
Product Name: High Flows Ball Control Valves
Key Features: On/off, High Flows, V-ball
Size Range: 2-12 Inch, DN50-DN300
Pressure: Class 150 LB - 600 LB
Body Materials: ASTM A352 LCC, ASTM A216 WCB, ASTM A351 CF8M
Trim Materials: Ball- CG3M/ Chrome Plated
Seats: Metal, TCM
Shutoff:
Metal Ball Seal: 0.001% of valve capacity at full travel: 1/10 of Class IV per ASME/FCI 70-2.
TCM Ball Seal: 2 ml of air/min/inch of nominal valve size at 50 psi differential (3.4 bar, differential).
Flow Ring: 2% of valve capacity at full travel.
Flow Characteristics: Modified Equal Percentage.
Flow Direction:
Normal (forward) flow is into the convex side of the V-ball.
Bi-directional flow is into either side of the V-Ball; TCM ball seal, metal ball seal, or flow ring.
Features & Benefits
1. Suitable for both throttling and on-off applications.
2. Flangeless body design fits seamlessly between raised face flanges.
3. Supports high flow rates.
4. Utilizes a modified equal percentage flow characteristic; V-ball closes with a shearing action against the ball seal during rotation.
5. Ideal for low-pressure drops and effective in slurry applications.
6. Ensures tight shutoff for reliable operation.
