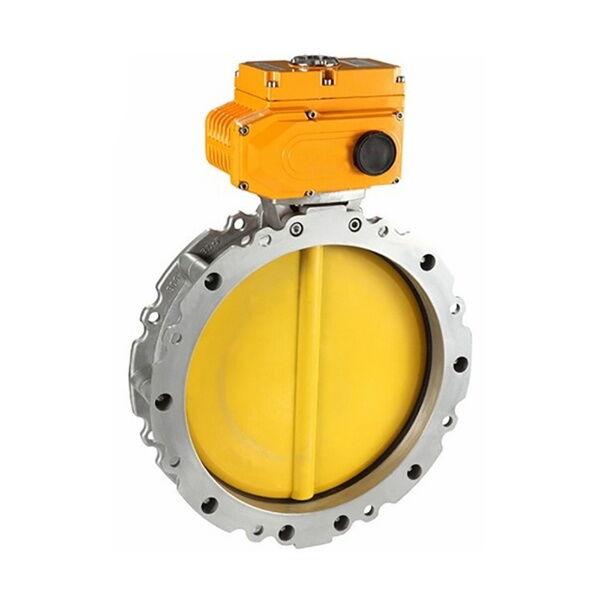

Powder Electric Butterfly Control Valve, 4-16 Inch, 0.4 MPa
Key Specifications / Features
Hits: 1
The Powder Electric Butterfly Control Valve, designed for on/off control, features a durable cast aluminum alloy body. Ideal for handling powder and cement, it comes in sizes ranging from 4 to 16 inches (DN50-DN600) with a PN4 pressure rating and flanged connections. This valve is perfect for hopper switches and silo applications, effectively managing powdery or granular materials. It can be installed under hoppers, silos, or conveyors and connects seamlessly with pneumatic conveying pipelines. Its robust design and engineering materials make it an economical and efficient choice for dry material handling in industrial settings.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Electric Butterfly Control Valve
Key Features: Lightweight, Corrosion Resistance, Recyclability
Port Size Range: 4 Inch - 16 Inch, DN50-DN600
Pressure: PN4, 0.4 (MPA)
Body Material:
Port Thread: Flange
Applicable Scope: Concrete Mixing Station and Dry Powder
Medium Temperature: -20°C to 90°C
Protection Class: IP65
Voltage Optional: AC 110-240V 380V 50/60Hz, DC12V, DC24V, Special Voltage Can be Customized.
Product Name: Electric Butterfly Control Valve
Key Features: Lightweight, Corrosion Resistance, Recyclability
Port Size Range: 4 Inch - 16 Inch, DN50-DN600
Pressure: PN4, 0.4 (MPA)
Body Material:
Port Thread: Flange
Applicable Scope: Concrete Mixing Station and Dry Powder
Medium Temperature: -20°C to 90°C
Protection Class: IP65
Voltage Optional: AC 110-240V 380V 50/60Hz, DC12V, DC24V, Special Voltage Can be Customized.
