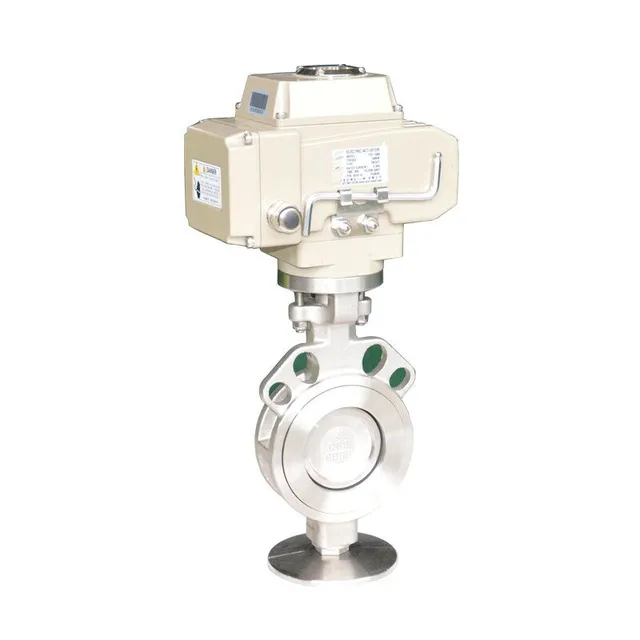

Electric Butterfly Control Valve, ASTM A351 CF8, 2-40 Inch
Key Specifications / Features
hits: 0
Introducing our Electric Butterfly Control Valve, made from robust ASTM A351 CF8 stainless steel and available in sizes DN50-DN1000 (2-40 Inch). This valve offers precise fluid flow control with electric actuation, ensuring reliable performance and energy efficiency. It supports remote operation for enhanced safety and convenience and seamlessly integrates into automated systems. Designed for durability, it withstands harsh environments with excellent corrosion resistance. The quick response feature allows for swift adjustments to changing conditions, making it ideal for HVAC, water treatment, and chemical processing applications. Additionally, its low-maintenance design reduces downtime and operational costs, providing a versatile and efficient solution.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Electric Butterfly Control Valve
Body Material: ASTM A351 CF8, CF8M, CF3, CF3M, Stainless Steel, Carbon Steel
Disc: Stainless Steel, ASTM A351 CF3M, CF3, CF8M, CF8, Double Stainless Steel, SAF 2507, 1.4529
End Connection: Wafer, Lug
Size Range: 2 Inch - 40 Inch, DN50-DN1000
Pressure Rating:
ANSI Class 150 LB - 600 LB
JIS 5K, 10K, 20K
PN10, PN16, PN25, PN40
Seat: PTFE, RPTFE
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
Product Name: Electric Butterfly Control Valve
Body Material: ASTM A351 CF8, CF8M, CF3, CF3M, Stainless Steel, Carbon Steel
Disc: Stainless Steel, ASTM A351 CF3M, CF3, CF8M, CF8, Double Stainless Steel, SAF 2507, 1.4529
End Connection: Wafer, Lug
Size Range: 2 Inch - 40 Inch, DN50-DN1000
Pressure Rating:
ANSI Class 150 LB - 600 LB
JIS 5K, 10K, 20K
PN10, PN16, PN25, PN40
Seat: PTFE, RPTFE
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%

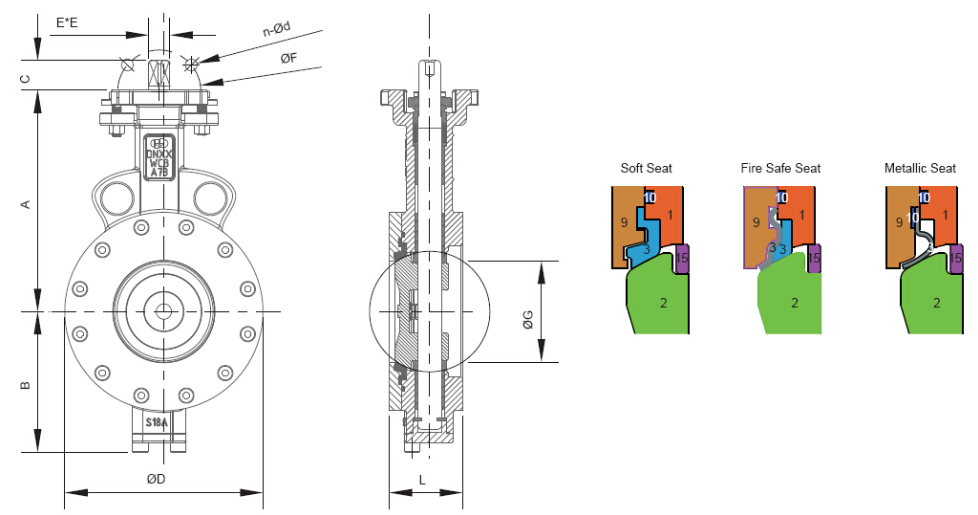

Drawing of Butterfly Control Valve
