2 Way Pneumatic Ball Control Valve, SS 316, 1/2-3 IN, 600 LB
Key Specifications / Features
Hits: 3
Introducing the 2 Way Pneumatic Ball Control Valve, built for precision and reliability. Sized from 1/2 inch to 3 inches, it features robust Stainless Steel 316 construction for durability and resistance to corrosion.
Operating at PN63 pressure, this valve ensures secure performance in challenging conditions. It includes a Stainless Steel 316 disc and ISO5211 compliant cover flange for seamless integration with pneumatic systems.
With connection standards like B2.1 BS21 1973 DIN 259/2999 NPT, it offers versatility across installations. Ideal for the chemical industry, it excels in applications involving acids, chemical controls, drainage, and treatment plants. Featuring PTFE sealing, the valve reliably contains fluids, suitable for a wide range of corrosive substances.
Request a quote
Tags
Detail Information
Product Description
Product Name: 2 Way Pneumatic Ball Control Valve
Size Range: 1/2 Inch - 3 Inch, DN15-DN80
Working Pressure: PN63, Class 600 LB
Body Material: Stainless Steel 316
Disc Material: Stainless Steel 316
Cover Flange: ISO 5211
Connection Standard: B2.1 BS21 1973 DIN 259/2999 NPT
Applications: Chemical Industry, For acids and chemical controls, For purpose of drain and stopper atthe end of the line, Treatment plants, Stainless Steel Resistant Fluid Types
Sealing: PTFE
Pneumatic Actuator Details
Type: Single acting, Double Acting
Position: 2 Positions
Angle of Rotation: 90°
Protection Class: IP65, IP68
ATEX Protection Class: II 2GDc T4
Working Pressure: 4 to 8 Bar
Working Temperature: -20°C to +80°C
Torque Range: 12Nm to 80 Nm
Body: Aluminium Extrusion
Strok Adjustment: ± 5°
Fluid Control: On/Off, Proportional
Valve Connection: ISO 5211
Accessories Connections: Namur standards
Product Name: 2 Way Pneumatic Ball Control Valve
Size Range: 1/2 Inch - 3 Inch, DN15-DN80
Working Pressure: PN63, Class 600 LB
Body Material: Stainless Steel 316
Disc Material: Stainless Steel 316
Cover Flange: ISO 5211
Connection Standard: B2.1 BS21 1973 DIN 259/2999 NPT
Applications: Chemical Industry, For acids and chemical controls, For purpose of drain and stopper atthe end of the line, Treatment plants, Stainless Steel Resistant Fluid Types
Sealing: PTFE
Pneumatic Actuator Details
Type: Single acting, Double Acting
Position: 2 Positions
Angle of Rotation: 90°
Protection Class: IP65, IP68
ATEX Protection Class: II 2GDc T4
Working Pressure: 4 to 8 Bar
Working Temperature: -20°C to +80°C
Torque Range: 12Nm to 80 Nm
Body: Aluminium Extrusion
Strok Adjustment: ± 5°
Fluid Control: On/Off, Proportional
Valve Connection: ISO 5211
Accessories Connections: Namur standards

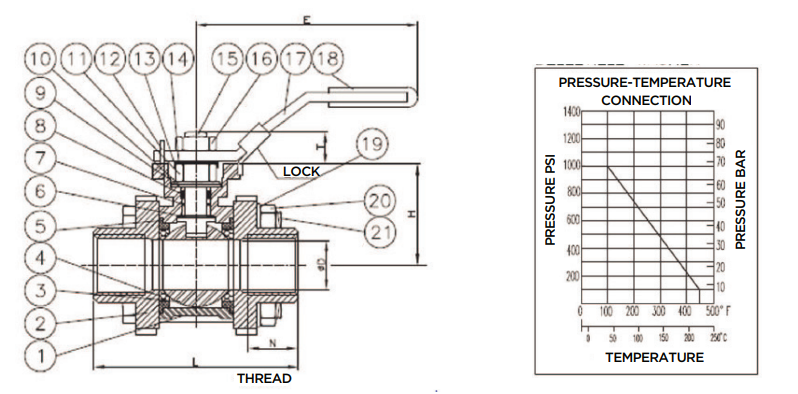

| Size | Ø D | L ± 2 | H | E ± 3 | T | S | Ø D1 | L1 ± 2 | ISO 5211 | N | KV VALUES | ||
| DN | INCH | Ø K1 | Ø K2 | ||||||||||
| 15 | 1/2 Inch | 15 | 75 | 38.0 | 140 | 9 | 9 | 21.8 | 70 | F03 | F04 | 20.0 | 9.7 |
| 20 | 3/4 Inch | 20 | 80 | 47.0 | 140 | 9 | 9 | 27.2 | 85 | F03 | F04 | 21.0 | 18.2 |
| 25 | 1 Inch | 25 | 90 | 57.2 | 154 | 11 | 11 | 34.0 | 95 | F04 | F05 | 21.0 | 30.3 |
| 32 | 1-1/4 Inch | 32 | 110 | 62.5 | 154 | 11 | 11 | 42.7 | 110 | F04 | F05 | 27.5 | 49.3 |
| 40 | 1-1/2 Inch | 38 | 120 | 77.5 | 184 | 14 | 14 | 48.8 | 120 | F05 | F07 | 26.5 | 69.2 |
| 50 | 2 Inch | 50 | 162 | 86.5 | 184 | 14 | 14 | 61.2 | 142 | F05 | F07 | 31.0 | 129.7 |
| 65 | 2-1/2 Inch | 65 | 162 | 108.0 | 261 | 17 | 17 | 74.0 | 168 | F07 | F10 | 28.0 | 229.2 |
| 80 | 3 Inch | 80 | 184 | 115.0 | 261 | 17 | 17 | 90.0 | 182 | F07 | F10 | 33.5 | 358.9 |
| 100 | 4 Inch | 100 | 228 | 141.0 | 337 | 22 | 22 | 115.6 | 227 | F10 | F12 | 41.0 | 674.6 |
