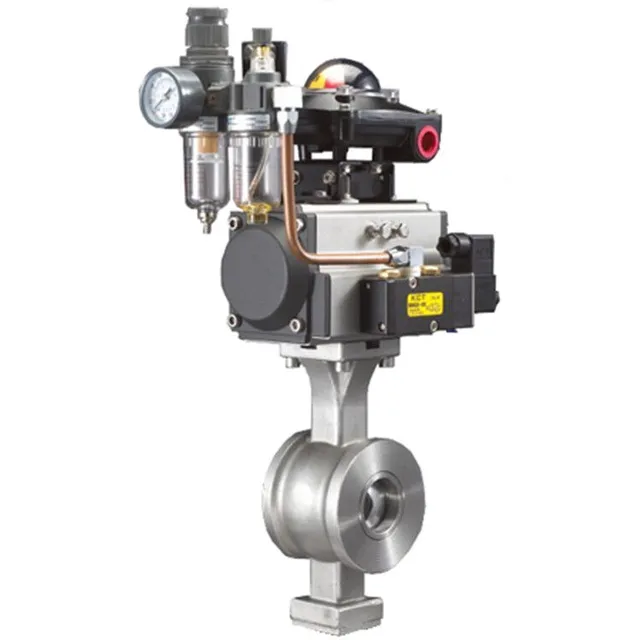

Segmented Pneumatic Ball Control Valve, API 608, 1/2-10 IN

Key Specifications / Features
Hits: 3
Announcing our Segmented Pneumatic Ball Control Valve, engineered for optimal performance and safety. With anti-static features, it prevents static buildup, ensuring reliable operation in sensitive environments. Crafted using precision lost-wax casting and fire-safe design, it guarantees durability and enhanced safety. Available in sizes ranging from 1/2 to 10 inches, it accommodates diverse applications with ease. Compliant with ASME B16.34 and API 608 standards, it meets industry benchmarks for quality and performance. Constructed from premium SS 316L, it offers superior corrosion resistance. With options for wafer and flanged connections, installation is simplified, ensuring seamless integration into your system.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Segmented Pneumatic Ball Control Valve
Design Standard: GB/T 12237/1989, API 608, ASME B16.34, DIN 3357/1, EN 12516-1
Materials: Stainless Steel, Carbon Steel, SS 316L, SS 316, SS 304, SS 304L, ASTM A216 WCB
Ball: SS 316L, SS 316, SS 304, SS 304L
Size Range: 1/2 - 10 Inch, DN15-DN250
Pressure: Class 150 LB, Class 300 LB, PN10-PN40
Seat: PTFE, TFM1600, PEEK, Metal seal+STL
End Connection: Wafer, Flange

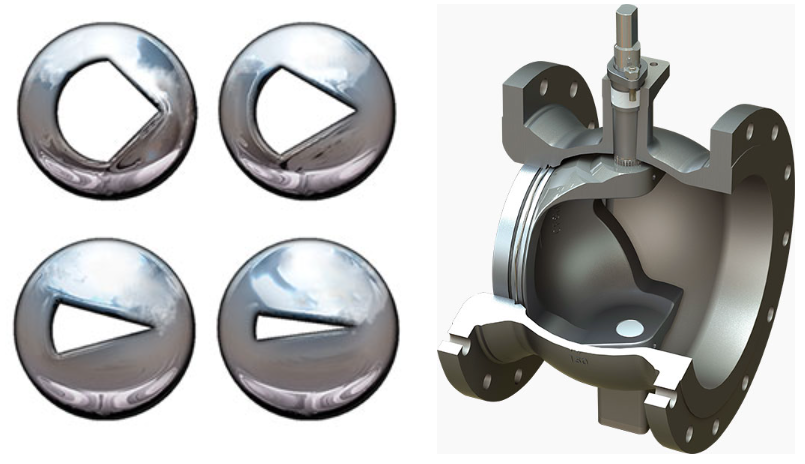

V-Port Angle: 15° V-Port, 30° V-Port, 60° V-Port, 90° V-Port
End:
ASME B16.34 Class 150 LB, ASME B16.34 Class 300 LB
DIN PN16, PN25, PN40
JIS 10K, 20K
Medium: Gas, Water and Oil, etc
Option: Olenoid valve, Limit Switch Box , Filter, E/P Positioner, Hand Wheel.
Pneumatic Actuator: Double Acting, Single Acting Normally Closed, Acting, Single Normally Open.
Product Name: Segmented Pneumatic Ball Control Valve
Design Standard: GB/T 12237/1989, API 608, ASME B16.34, DIN 3357/1, EN 12516-1
Materials: Stainless Steel, Carbon Steel, SS 316L, SS 316, SS 304, SS 304L, ASTM A216 WCB
Ball: SS 316L, SS 316, SS 304, SS 304L
Size Range: 1/2 - 10 Inch, DN15-DN250
Pressure: Class 150 LB, Class 300 LB, PN10-PN40
Seat: PTFE, TFM1600, PEEK, Metal seal+STL
End Connection: Wafer, Flange
V-Port Angle: 15° V-Port, 30° V-Port, 60° V-Port, 90° V-Port
End:
ASME B16.34 Class 150 LB, ASME B16.34 Class 300 LB
DIN PN16, PN25, PN40
JIS 10K, 20K
Medium: Gas, Water and Oil, etc
Option: Olenoid valve, Limit Switch Box , Filter, E/P Positioner, Hand Wheel.
Pneumatic Actuator: Double Acting, Single Acting Normally Closed, Acting, Single Normally Open.

Segmented Pneumatic Ball Control Valve
