3PC Pneumatic Ball Control Valve, SS316, DN15-DN100, Flanged
Key Specifications / Features
hits: 3

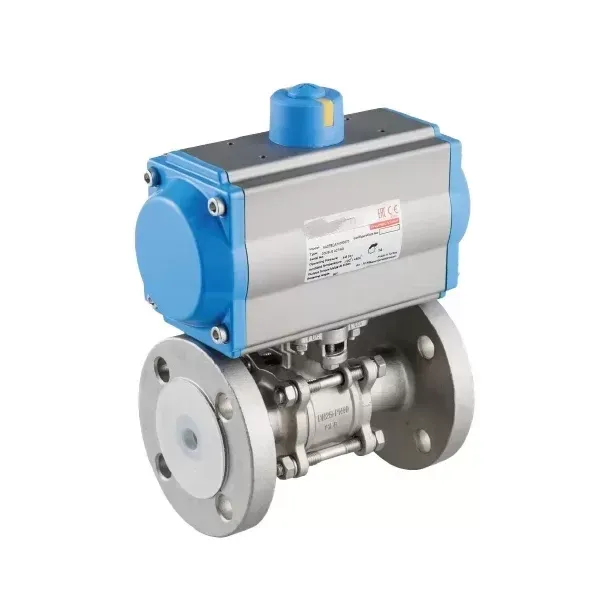

Meet the 3PC Pneumatic Ball Control Valve, meticulously crafted for precision and reliability across diverse applications. Available in sizes from 1/2 inch to 4 inches (DN15-DN100), this valve boasts a robust Stainless Steel 316 construction, ensuring durability and resilience against corrosive environments prevalent in the chemical industry.
Operating seamlessly under pressures ranging from PN16 to PN40 (Class 150 LB to Class 300 LB), it guarantees steadfast performance in demanding conditions. Featuring a Stainless Steel 316 ball and ISO5211-compliant cover flange, it facilitates effortless integration with pneumatic systems.
With flanged end connections and PTFE sealing, this valve is ideal for managing acids, chemical controls, drainage tasks, and treatment plants dealing with resilient stainless steel fluids. Its design emphasizes reliability and longevity, making it a versatile choice for critical industrial processes.
Request a quote
Tags
Detail Information
Product Description
Product Name: 3PC Pneumatic Ball Control Valve
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure: PN16-PN40, Class 150 LB - Class 300 LB
Body Material: Stainless Steel 316
Ball Material: Stainless Steel 316
Cover Flange: ISO 5211
End Connection: Flange
Applications: Chemical Industry, For acids and chemical controls, For purpose of drain and stopper atthe end of the line, Treatment plants, Stainless Steel Resistant Fluid Types
Sealing: PTFE
Pneumatic Actuator Details
Type: Single acting, Double Acting
Position: 2 Positions
Angle of Rotation: 90°
Protection Class: IP65, IP68
ATEX Protection Class: II 2GDc T4
Working Pressure: 4 to 8 Bar
Working Temperature: -20°C to +80°C
Torque Range: 12Nm to 80 Nm
Body: Aluminium Extrusion
Strok Adjustment: ± 5°
Fluid Control: On/Off, Proportional
Valve Connection: ISO 5211
Accessories Connections: Namur standards
Drawing for Pneumatic Ball Control Valve
Product Name: 3PC Pneumatic Ball Control Valve
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure: PN16-PN40, Class 150 LB - Class 300 LB
Body Material: Stainless Steel 316
Ball Material: Stainless Steel 316
Cover Flange: ISO 5211
End Connection: Flange
Applications: Chemical Industry, For acids and chemical controls, For purpose of drain and stopper atthe end of the line, Treatment plants, Stainless Steel Resistant Fluid Types
Sealing: PTFE
Pneumatic Actuator Details
Type: Single acting, Double Acting
Position: 2 Positions
Angle of Rotation: 90°
Protection Class: IP65, IP68
ATEX Protection Class: II 2GDc T4
Working Pressure: 4 to 8 Bar
Working Temperature: -20°C to +80°C
Torque Range: 12Nm to 80 Nm
Body: Aluminium Extrusion
Strok Adjustment: ± 5°
Fluid Control: On/Off, Proportional
Valve Connection: ISO 5211
Accessories Connections: Namur standards
Drawing for Pneumatic Ball Control Valve| NO | PART NAME | Stainless Steel Valve | |
| 1 | BODY | S.C. AISI 304- AISI 316 | S.P. AISI 304- AISI 316 |
| DN15-DN100 | DN125-DN200 | ||
| 2 | CAP | S.C.. S.P. AISI 304- AISI 316 | S.C.. S.P. AISI 304- AISI 316 |
| DN15-DN65 | DN80-DN200 | ||
| 3 | BALL | AISI 304 | AISI 316 |
| 4 | BALL SHAFT | AISI 304 | AISI 316 |
| 5 | NUT | A2 STAINLESS | |
| 6 | STAMP | STAINLESS | |
| 7 | RING | STAINLESS | |
| 8 | NECK GASKET | PTFE | |
| 9 | SHAFT STEEL RING | STAINLESS | |
| 10 | ORING | VITON | |
| 11 | BALL GASKET | PTFE | |
| 12 | VALVE HANDLE | AISI 304 | |
| 13 | NUT | AISI 304 | |
