Segmented Ball Control Valve, DN80, PN16, ASTM A351 CF8/CF8M

Key Specifications / Features

Available in sizes DN25 to DN500, this ball control valve features ASTM A351 CF8, CF8M, and ASTM A216 WCB construction for durability, with integrated ISO 5211 actuator connections for seamless automation. It operates across a range of pressures from PN16 to PN40 and Class 150 LB to Class 600 LB, meeting diverse operational needs. Certified with ISO9001 and CE, it ensures high-quality standards and easy installation with ISA S75.04 and IEC/DIN 534-3-2 flange types. The ball control valve achieves superior seal tightness with options for metal seats with Class V or Class VI Tungsten Carbide trim, and Class VI soft seals. Featuring clockwise valve trim rotation and an equal percentage flow characteristic, it excels in applications including pulp and paper, wastewater treatment, food and beverage, chemical plants, power plants, and the steel industry.

Request a quote

Detail Information

Product Description

Product Name: Segmented Ball Control Valves
Size Range: DN25-DN500
Body Material: ASTM A351 CF8, CF8M, ASTM A216 WCB
Actuator Connection: ISO 5211
Technical Features:
Working Pressure: PN16, PN25, PN40, Class 150 LB, 300 LB, 600 LB
Certificate: ISO 9001 & CE Accredited
Flange Type:

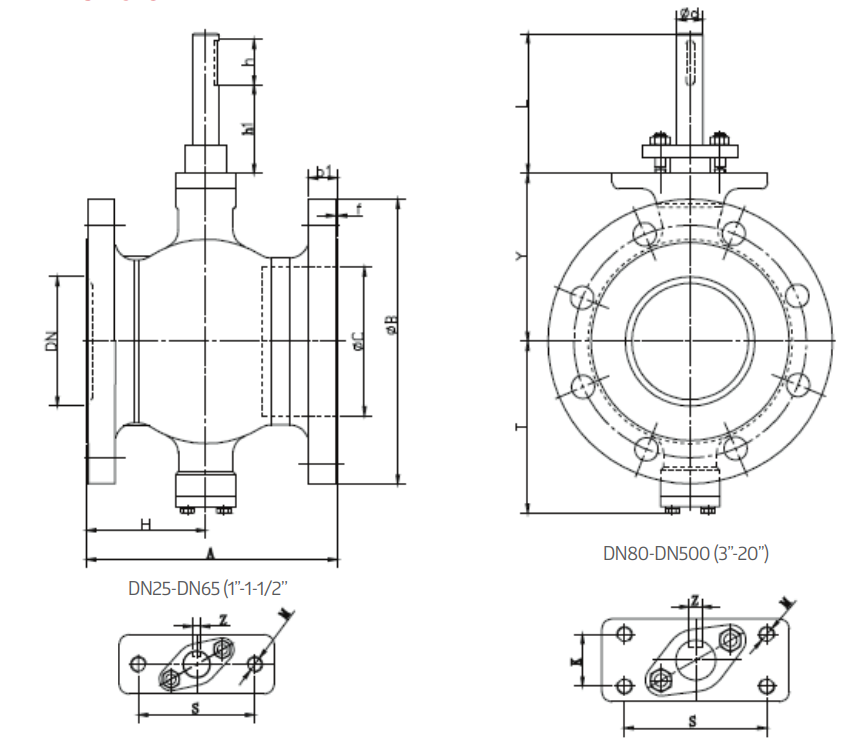

Face to Face: ISA S75.04, IEC/DIN 534-3-2
Seal Tightness:
Metal Seat: Class V (standard), Class VI (with Tungsten Carbide Coated Trim)
Soft Conta: Class VI
Valve Trim Rotation: Clockwise to close

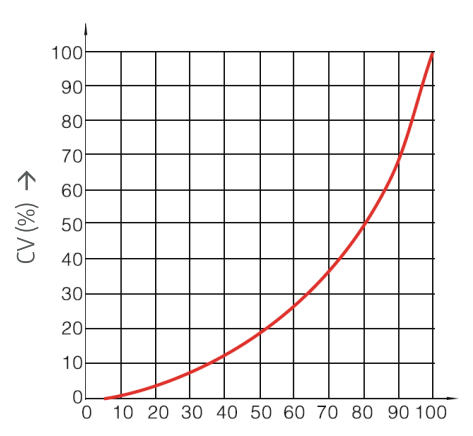

Flow Characteristic: Equal Percentage
Application: Pulp and paper, waste water treatment, food and beverage, chemical plants, power plants, steel industry, etc.
