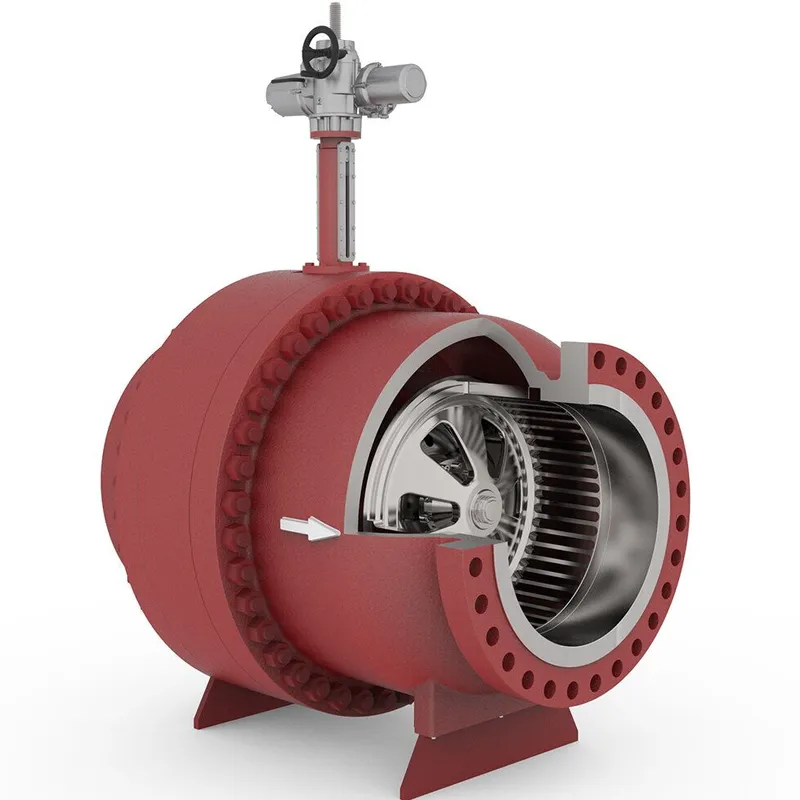

Axial Ball Control Valve, ASME B16.34, 6-42 IN, 150-1500 LB
Key Specifications / Features
Hits: 0
Proposing our Axial Control Valve, available in sizes from 6 inches (DN150) to 42 inches (DN1050) and pressure ratings from Class 150 LB to 1500 LB (PN20 to PN250). Designed to meet API 6D, ASME B16.34, ISO 14313, and ISA standards, this valve ensures low noise and vibration during operation. It features fixed lifting lugs for easy handling and is designed for easy maintenance, making it a reliable choice for various industrial applications.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Axial Control Valve
Design Standard: API 6D, ASME B16.34, ISO 14313, ISA Standards
Size Range: 6 Inch - 42 Inch, DN150-DN1050
Pressure Rating: Class 150 LB - 1500 LB, PN20-PN250
Flow Characteristics: Equal Percentage, Linear, Quick Opening
Operator: Pneumatic Actuator, Electric Actuator
Material: Carbon Steel, Stainless Steel, Duplex, Alloy Steel
Operating Temperature: Standard, High
Leakage Class: API 598, ANSI FC70-2, ISO 5208
Face to Face Standard: ASME B16.10
Test Standard: API 6D, API 598, ISO 14313
Fire Safe Standard: API 607, ISO 10497, API 6FA
End Connection: RF (Raised Face), RTJ (Ring Type Joint), BW (Butt Weld)
End Connection Standard: ASME B16.5, ASME B16.25, DIN EN 1092-1
Features:
1. Low noise and vibration.
2. Fixed lifting lugs on the valve.
3. Easy maintenance.
Product Name: Axial Control Valve
Design Standard: API 6D, ASME B16.34, ISO 14313, ISA Standards
Size Range: 6 Inch - 42 Inch, DN150-DN1050
Pressure Rating: Class 150 LB - 1500 LB, PN20-PN250
Flow Characteristics: Equal Percentage, Linear, Quick Opening
Operator: Pneumatic Actuator, Electric Actuator
Material: Carbon Steel, Stainless Steel, Duplex, Alloy Steel
Operating Temperature: Standard, High
Leakage Class: API 598, ANSI FC70-2, ISO 5208
Face to Face Standard: ASME B16.10
Test Standard: API 6D, API 598, ISO 14313
Fire Safe Standard: API 607, ISO 10497, API 6FA
End Connection: RF (Raised Face), RTJ (Ring Type Joint), BW (Butt Weld)
End Connection Standard: ASME B16.5, ASME B16.25, DIN EN 1092-1
Features:
1. Low noise and vibration.
2. Fixed lifting lugs on the valve.
3. Easy maintenance.
