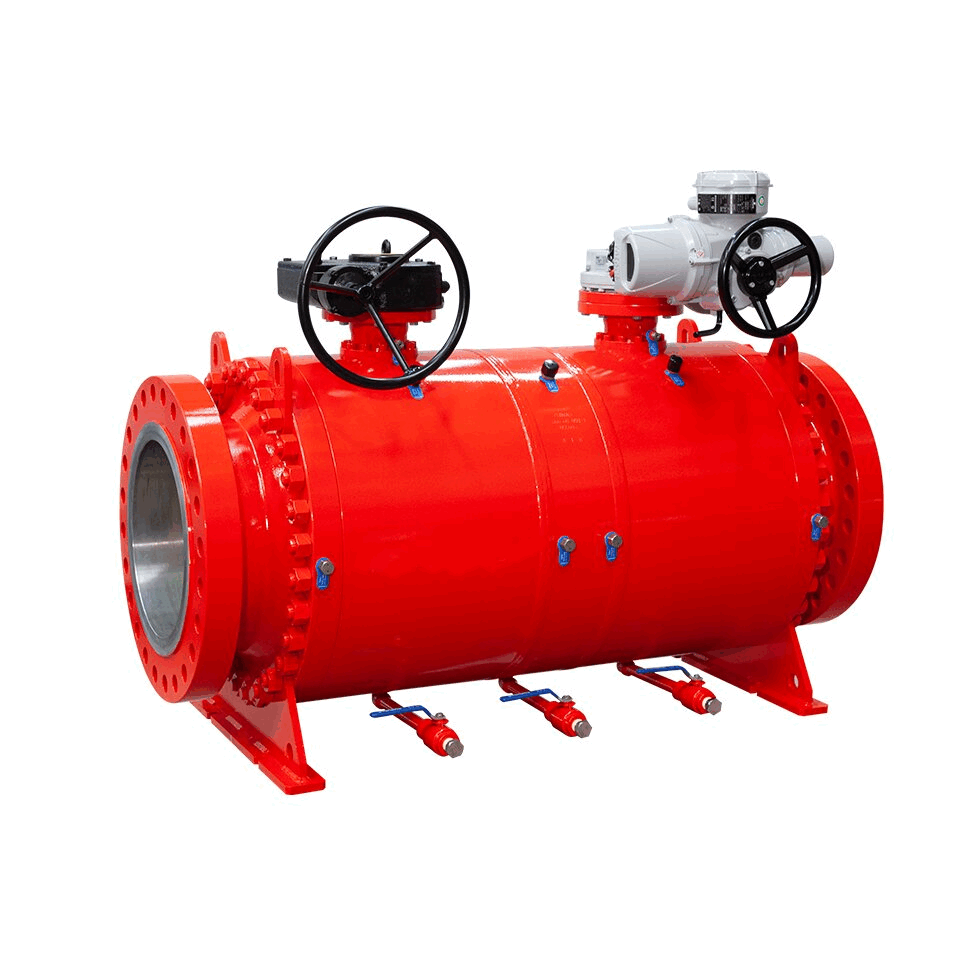

Introducing our Double Trunnion Ball Control Valve for the industry, featuring a bolted design and gear actuator, compliant with ASME B16.34 and API 6D standards. Crafted from carbon steel, available in sizes ranging from 2 to 36 inches, and pressure ratings from Class 150 to 1500 LB, with RF and RTJ ends. Enjoy the benefits of smaller actuators thanks to low torque requirements, along with automated actuator selection for added convenience. Fixed lifting lugs ensure easy handling, while maintenance is simplified. Emergency sealing fittings are included, seats are renewable, and you can opt for metal or soft seats based on your preferences. Additional features include a blow-out-proof stem for safety, optional locking device for security, and instrumentation valves for draining the body cavity.

Introducing our Top Entry Ball Control Valve, designed to streamline maintenance and reduce downtime in critical service pipelines. With their unique top entry design, these valves facilitate easy maintenance and repairability, allowing for the removal of ball and seats without disassembling the entire valve on site. Thanks to low torque requirements, smaller actuators can be selected, with automatic actuator selection for added convenience. Fixed lifting lugs ensure easy handling, while emergency sealing fittings come as standard. Featuring renewable seats in both metal and soft variants, a blow-out-proof stem, and optional locking device, these valves offer reliability and versatility for various industrial applications.

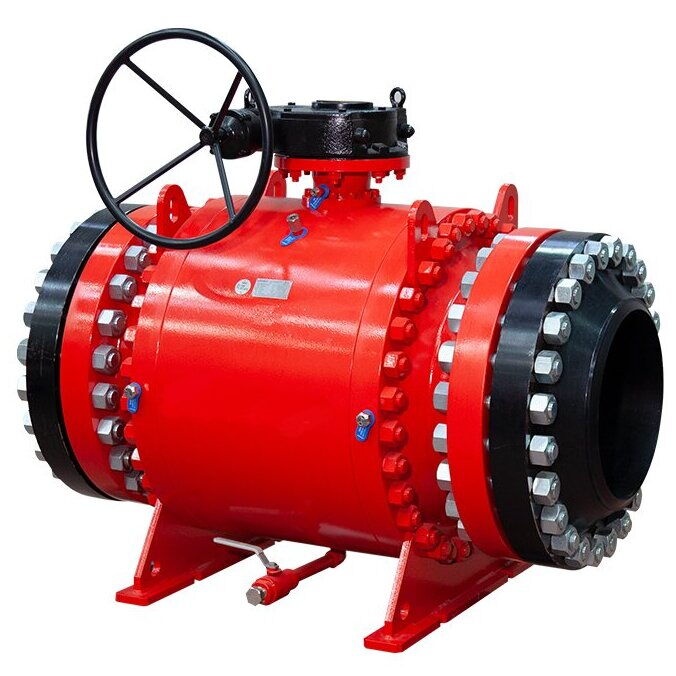

Introducing our Ball Control Valve, equipped with a Lever Actuator, Trunnion design, and Full Bore functionality, adhering to ASME B16.34, API 6D, and ISO 14313 standards. Available in sizes ranging from 2 to 56 inches, with pressure ratings from PN25 to PN420 and 150 to 2500 LB. Thanks to low torque values, a smaller actuator can be chosen, with automatic actuator selection for convenience. Features include fixed lifting lugs for easy handling, emergency sealing fittings as a default, and renewable seats, available in both metal and soft variants. Additionally, it boasts a blow-out-proof stem, with an optional locking device for added security.

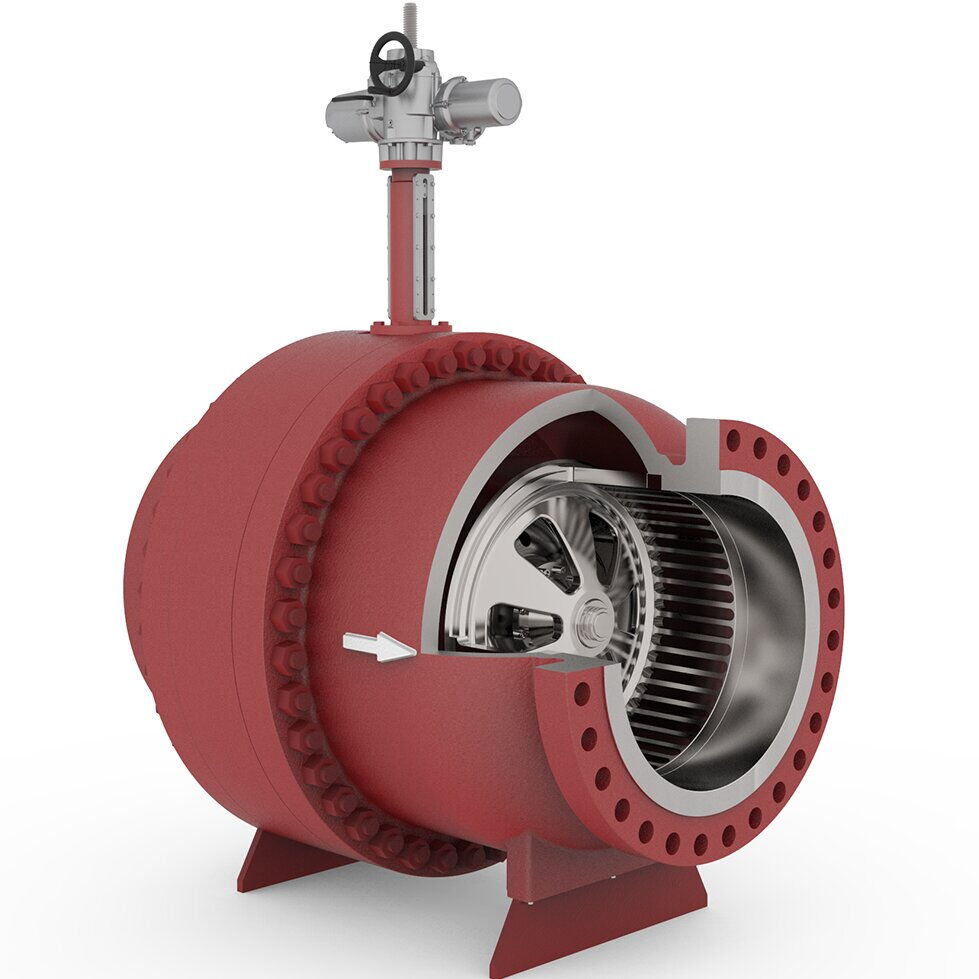

Proposing our Axial Control Valve, available in sizes from 6 inches (DN150) to 42 inches (DN1050) and pressure ratings from Class 150 LB to 1500 LB (PN20 to PN250). Designed to meet API 6D, ASME B16.34, ISO 14313, and ISA standards, this valve ensures low noise and vibration during operation. It features fixed lifting lugs for easy handling and is designed for easy maintenance, making it a reliable choice for various industrial applications.

Announcing our Quarter Turn Ball Control Valve, featuring a pneumatic actuator and compliant with API 6D, ASME B16.34, and ISO 14313 standards. Available in carbon steel with pressure ratings from Class 150 to 1500 LB, and sizes ranging from 1 to 42 inches, this valve offers RF and RTJ end connections. Its low torque requirements allow for smaller actuator selection and automatic actuator integration. The valve includes fixed lifting lugs, options for metal or soft seats, and is designed for easy maintenance. Additional features include emergency sealing fittings, a blow-out-proof stem, optional strengthened stem packing, and an optional locking device.

Discover the V Notch Ball Control Valve, a specialized solution for precise flow control and modulating services. Featuring a ‘V’-shaped notch, it provides unique shearing action and inherent equal percentage flow characteristics, ideal for viscous liquids, fibrous suspensions, and slurries. uilt from premium, corrosion-resistant materials, this valve withstands industrial rigors and supports both manual and automatic actuation for flexibility. Available in Carbon Steel and Stainless Steel, it meets diverse operational needs. The anti-static design reduces static electricity risks, ensuring safe operation. Additional safety features include a fire-safe design and blow-out-proof stem. It excels in handling complex flow control requirements with precise control, durability, and enhanced safety, ensuring reliable and efficient operations.

Presenting the Fluorine Lined Ball Control Valve, designed for maximum resistance against corrosive and abrasive media. Featuring a fluorine plastic lining, it excels in highly corrosive environments. Ideal for the Chemical, Petrochemical, Pharmaceutical, and Water Treatment industries, this valve handles acids, bases, and other aggressive fluids. It is constructed from high-quality materials for durability and reliable operation. Supporting both manual and automatic actuation, the valve offers flexibility and is available in Carbon Steel and Stainless Steel. Its anti-static design prevents static build-up, while the fire-safe design and blow-out-proof stem enhance safety. The Fluorine Lined Ball Control Valve ensures secure, efficient, and reliable industrial operations.

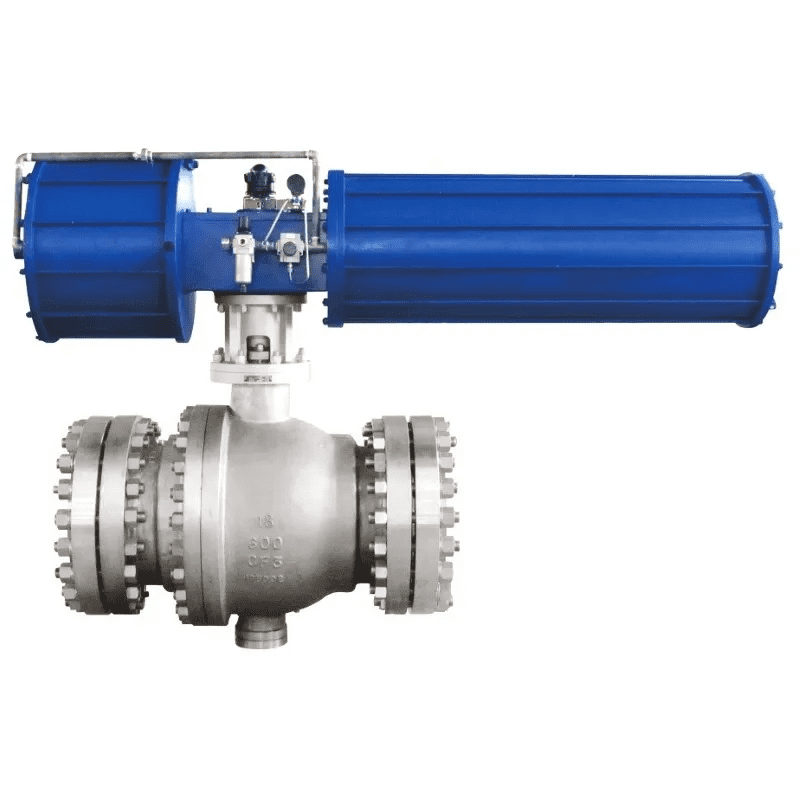

The Trunnion Mounted Ball Control Valve is expertly designed for extensive, high-pressure applications. This valve, supported by upper and lower trunnions, minimizes friction and ensures consistent sealing stress across varying pressures. The robust trunnion mounting mechanism prevents displacement under pressure, providing reliable bi-directional sealing and low operating torque for extended service life and reduced maintenance costs. Perfect for the Oil & Gas, Chemical, and Power Generation industries, this valve is constructed from durable, corrosion and wear-resistant materials. It features an anti-blow-out stem and fire-safe design, ensuring safety and reliability in extreme conditions.

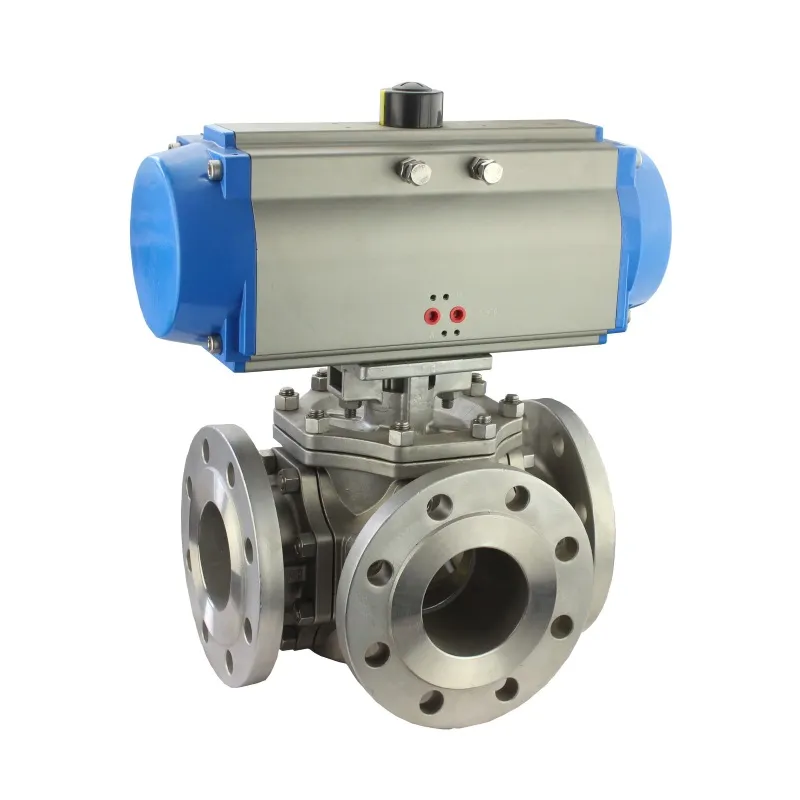

The Three Way Ball Control Valve offers versatile flow control for various industrial applications. Its three-way design manages multiple flow paths, improving efficiency and flexibility while reducing costs and space requirements. Made from corrosion-resistant materials, this valve ensures reliable operation in harsh environments, ideal for industries like Oil & Gas, Petrochemicals, Power Generation, and Water Treatment. It is available in sizes DN15-DN600 and pressure classes Class 150-2500 LB, supporting both manual and automatic actuation. Key features include an anti-static design to prevent static electricity buildup, a fire-safe design, and a blow-out-proof stem, ensuring safe and efficient operations.

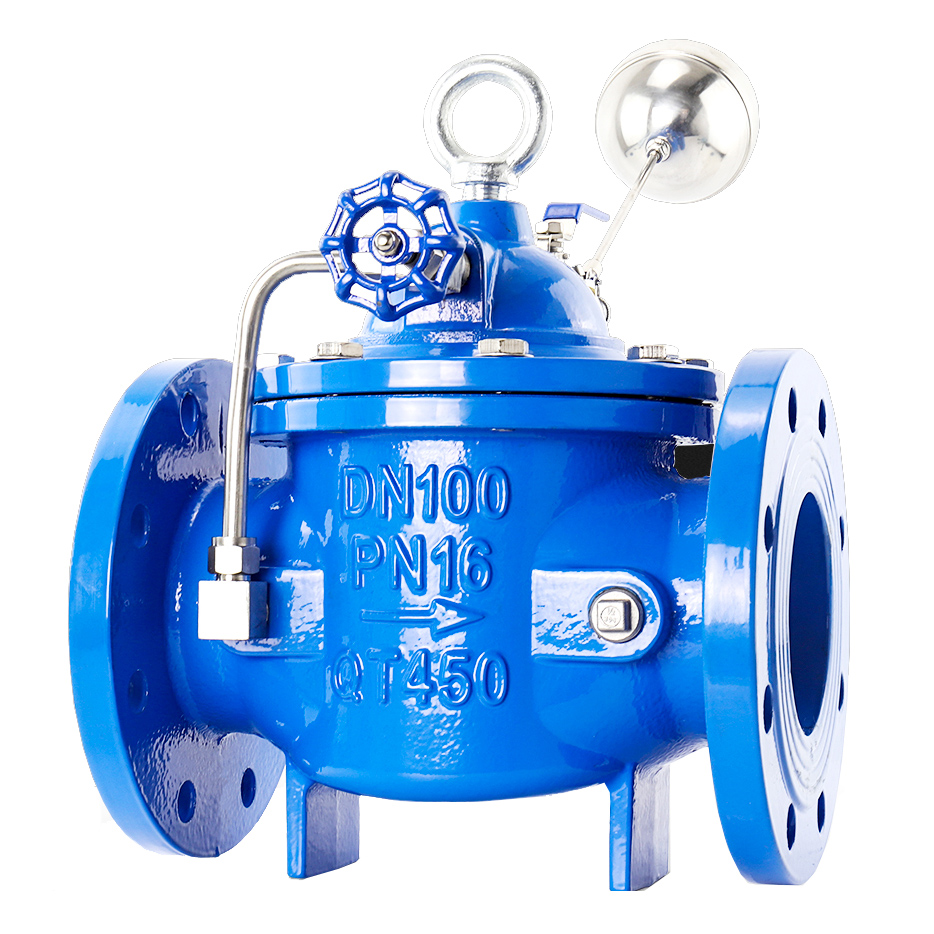

Introducing our Remote Float Ball Control Valve, available in sizes DN25-DN800 with flanged ends and suitable for medium temperatures from 0°C to 80°C. Crafted from durable materials like ductile cast iron, cast steel, and stainless steel, it offers pressure ratings of PN10, PN16, PN25. This valve provides precise liquid level control directly using liquid level control without additional devices or energy, ensuring easy maintenance and reliable shutoff. Unaffected by water pressure, it's ideal for liquid level control in water towers, buildings, waterworks, and other water supply pipeline systems. Simplified into three steps, its working principle is visually demonstrated in the accompanying animation for enhanced understanding.

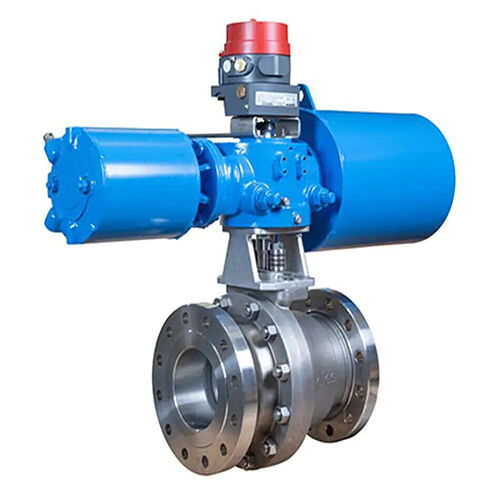

Our Trunnion Mounted Ball Control Valve Manufacturer offers high-quality valves designed for reliable performance. With a Full Bore design and sizes ranging from 2 to 24 inches, these valves are suitable for various industrial applications. They are engineered to handle pressure ratings of Class 150-300 LB and are crafted from durable materials such as ASTM A216 WCC, ASTM A351 CF8M, and ASTM A217 WC5. Featuring Flanged Ends, these valves ensure secure installation and efficient operation.

Our Top Entry Ball Control Valve Factory produces robust valves with Trunnion Mounted design, suitable for a wide range of applications. Available in sizes ranging from 1 to 16 inches and designed to handle Class 150-600 LB pressure ratings, these valves are crafted from durable materials like Carbon Steel and Stainless Steel. They feature both Flanged and Welded Ends for easy installation and secure sealing.
