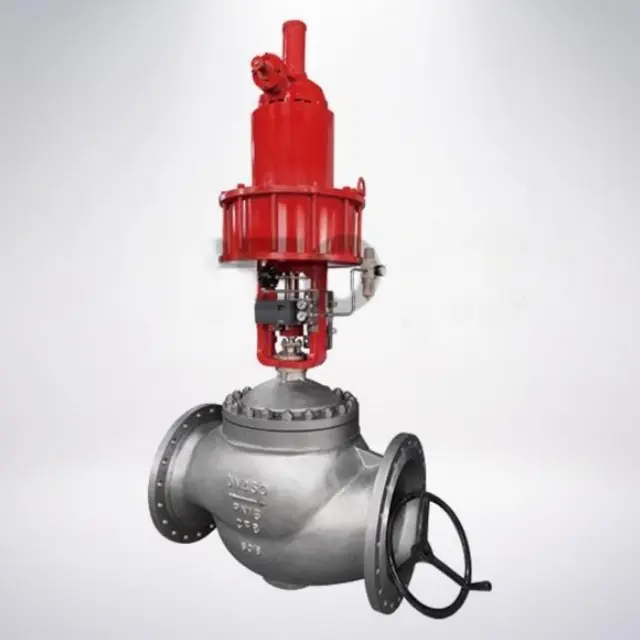

Cage-guided Balanced Trim Cut-off Control Valve, DN40-DN600
Key Specifications / Features
Hits: 20
The Cut-off Control Valve features a fluid pressure balanced trim, designed specifically for quick-opening and shut-off applications without flow adjustment capability. It utilizes PTFE or RTFE soft-sealing materials on the seat to achieve zero-leakage sealing under air pressure conditions. Available in sizes ranging from 1-1/2 inches to 24 inches (DN40-DN600), and with pressure ratings from Class 150 LB to 600 LB (PN16-PN100), it accommodates various industrial needs. The valve is constructed from Carbon Steel, Stainless Steel, Alloy Steel, or Duplex Stainless Steel, suitable for temperatures ranging from -196°C to 230°C. Bonnet options include Standard, Long-Extension, Bellows, and Steam Jacket configurations.
Request a quote
Tags
Detail Information
Product Descriptions
Product Name: Cut-off Control Valves
Size Range: 1-1/2 Inch - 24 Inch, DN40-DN600
Pressure Rating: Class 150 LB - 600 LB, PN16-PN100
Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel
Temperature Range:-196°C to 230°C
Seat Leakage: ANSI Ⅵ(bubble-tight)
Bonnet Type: Standard, Long-Extension, Bellows, Steam Jacket
Product Name: Cut-off Control Valves
Size Range: 1-1/2 Inch - 24 Inch, DN40-DN600
Pressure Rating: Class 150 LB - 600 LB, PN16-PN100
Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel
Temperature Range:-196°C to 230°C
Seat Leakage: ANSI Ⅵ(bubble-tight)
Bonnet Type: Standard, Long-Extension, Bellows, Steam Jacket
