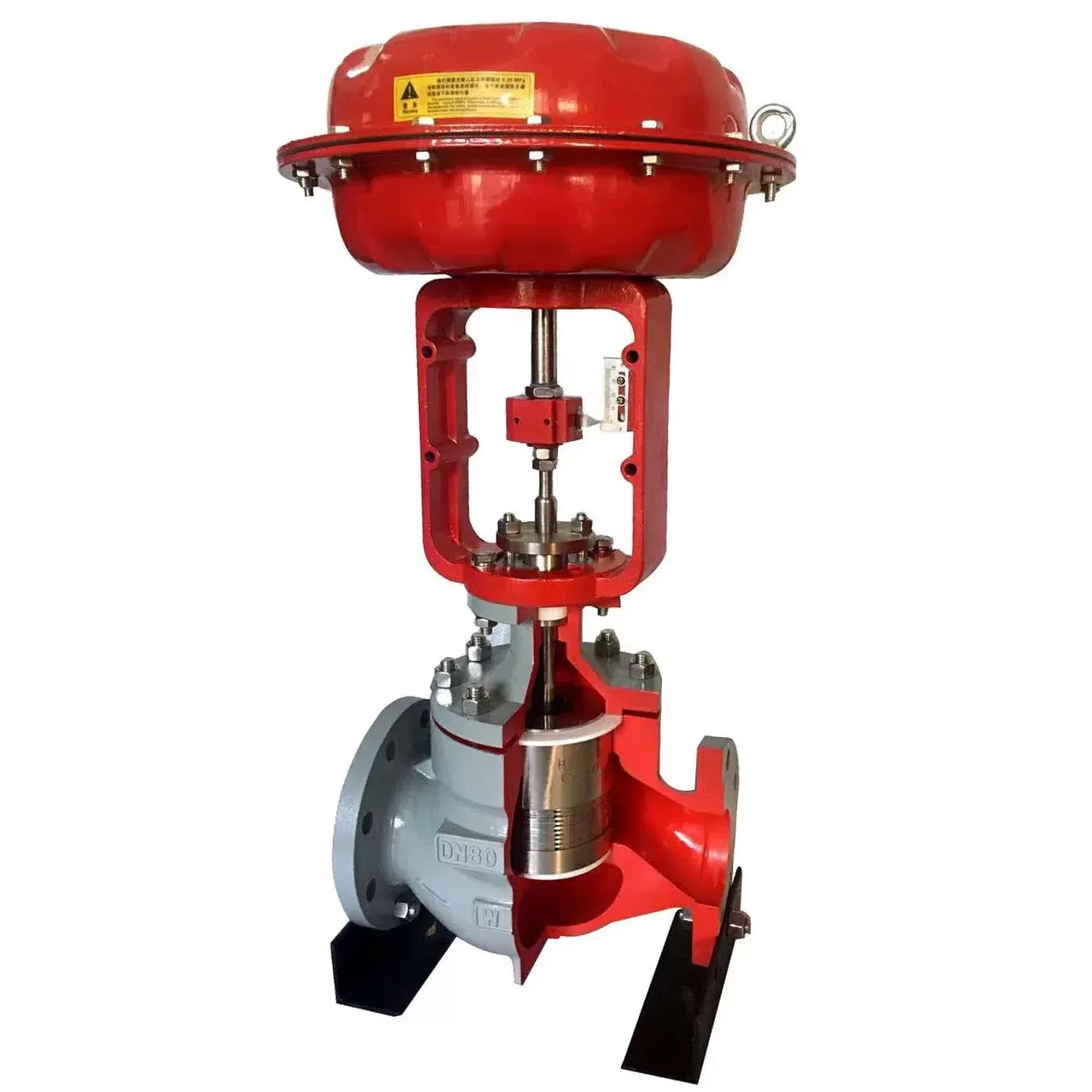

Pneumatic Labyrinth Cage-guided Control Valve, Balanced Trim
Key Specifications / Features
Hits: 8
Designed for heavy-duty use, our valve performs exceptionally in both standard and extreme operating conditions. It significantly reduces noise and minimizes air defense damage while featuring multi-stage pressure reduction and enhanced anti-cavitation capabilities. This valve is ideal for high differential pressure scenarios across various operating modes, offering versatile and customizable solutions.
Request a quote
Tags
Detail Information
Product Descriptions
Product Name: Pneumatic Labyrinth Control Valve
Key Features: Cage-guided, Balanced Trim, Multi-hole
Size Range: 1 Inch - 18 Inch, DN25-DN450
Pressure Rating: Class 150 LB - 1500 LB
Body Material: ASTM A216 WCB, WC6, ASTM A315 CF8, CF8M, and other Alloy Steels.
Temperature Range: -196°C to 538°C
Product Name: Pneumatic Labyrinth Control Valve
Key Features: Cage-guided, Balanced Trim, Multi-hole
Size Range: 1 Inch - 18 Inch, DN25-DN450
Pressure Rating: Class 150 LB - 1500 LB
Body Material: ASTM A216 WCB, WC6, ASTM A315 CF8, CF8M, and other Alloy Steels.
Temperature Range: -196°C to 538°C
