Electric Ball Control Valve, 3/8-4 IN, PN16-PN50, SS 316L

Key Specifications / Features

As your trusted provider of Electric Ball Control Valves, we offer reliable On/Off functionality, ideal for precise flow control. Available in sizes ranging from 3/8 to 4 inches (DN10-DN100), our valves accommodate various pipeline requirements. With pressure ratings from PN16 to PN50 and Class 150-300 LB, they excel in high-pressure applications, ensuring efficient operation under demanding conditions. Constructed from premium SS 316L, SS 316, and SS 304 materials, our valves boast exceptional durability and corrosion resistance. Featuring convenient Thread End connections, they facilitate easy installation and maintenance, making them the preferred choice for critical industrial processes.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: Electric Ball Control Valve
Size Range: 3/8 Inch - 4 Inch, DN10-DN100
Pressure Rating: PN16-PN50, Class 150 LB - 300 LB
Body Material: SS 316L, SS 316, SS 304
Applicable Temperature: -29°C to +180°C
Ambient Temperature : -30°C to 60°C
Connection Method: Thread, Clamp, Butt Welding, Socket Welding
Sealing Material: PTFE, High Pressure Nylon
Control Mode: Switch Type, Intelligent Adjustment Type
Power Supply Voltage: 20V AC single phase, 110V AC single phase, 380/440V AC three-phase, 24V/110V/220V AC

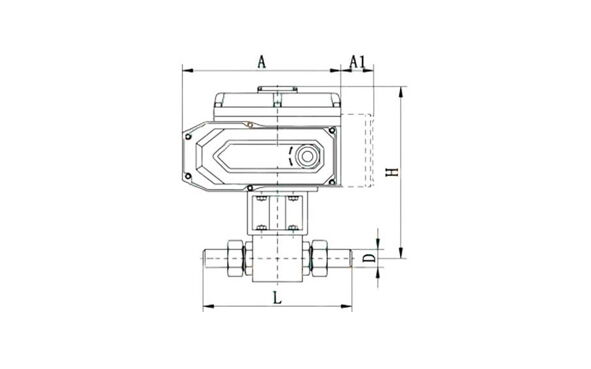

Drawing of Electric Ball Control Valve

DN	6	8	10	15	20	25	32	40	50
L	133	133	154	166	174	212	230	250	294
D	10	14	18	22	28	34	42	50	64

H, A, A1: The electric actuator size should correspond to the specific configuration, considering variations in valve seal and temperature requirements.
