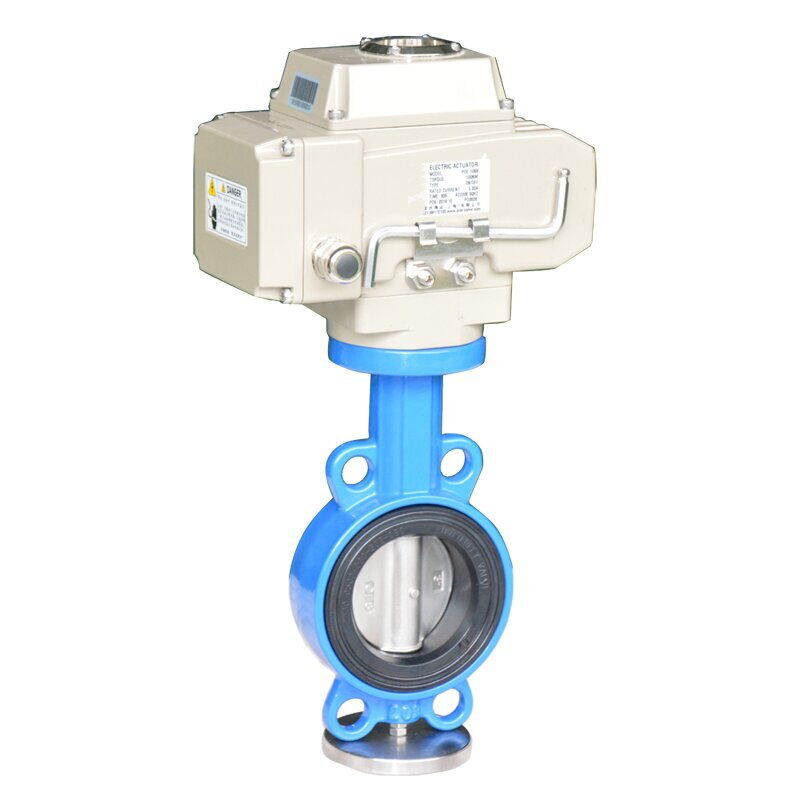

Explosion Proof Control Valve, Motorized, CF3M, 2-40 IN
Key Specifications / Features
Hits: 0
Presenting our Explosion Proof Butterfly Control Valve, engineered for safety and efficiency in hazardous environments. With a durable construction, this valve ensures reliable performance in industries such as oil and gas, chemical, and pharmaceuticals. Its explosion-proof design prevents ignition of flammable gases or dust, enhancing safety. Featuring precise control and quick operation, it offers accurate flow regulation and emergency shut-off capabilities. Compact and corrosion-resistant, it minimizes maintenance needs and maximizes longevity. Compliant with industry standards, it provides peace of mind while delivering cost-effective flow control solutions for hazardous applications.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Explosion Proof Control Valve
Body Material: Cast Iron, Ductile Iron, Aluminum Stainless Steel, ASTM A351 CF8, CF8M, CF3M
Disc: Stainless Steel, ASTM A351 CF3M, CF3, CF8M, Nylon Coated Ductile Iron, Aluminum Bronze, Double Stainless
Seat: NBR, EPDM, VITON
Size Range: 2 Inch - 40 Inch, DN50-DN1000
Pressure: PN10-PN16, Class 150 LB
End Connection: Wafer, Lug
End:
EN 1092 (European Standard): PN6, PN10, PN16
ASME (American Standard): Class 150 LB
AS 4087 (Australian Standard): PN10, PN16
JIS (Japanese Industrial Standard): 5K, 10K
Medium: Gas, Water and Oil, etc
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
Optional:
Explosion-proof actuator: Exd II CT5、Exd II BT5
Product Name: Explosion Proof Control Valve
Body Material: Cast Iron, Ductile Iron, Aluminum Stainless Steel, ASTM A351 CF8, CF8M, CF3M
Disc: Stainless Steel, ASTM A351 CF3M, CF3, CF8M, Nylon Coated Ductile Iron, Aluminum Bronze, Double Stainless
Seat: NBR, EPDM, VITON
Size Range: 2 Inch - 40 Inch, DN50-DN1000
Pressure: PN10-PN16, Class 150 LB
End Connection: Wafer, Lug
End:
EN 1092 (European Standard): PN6, PN10, PN16
ASME (American Standard): Class 150 LB
AS 4087 (Australian Standard): PN10, PN16
JIS (Japanese Industrial Standard): 5K, 10K
Medium: Gas, Water and Oil, etc
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
Optional:
Explosion-proof actuator: Exd II CT5、Exd II BT5

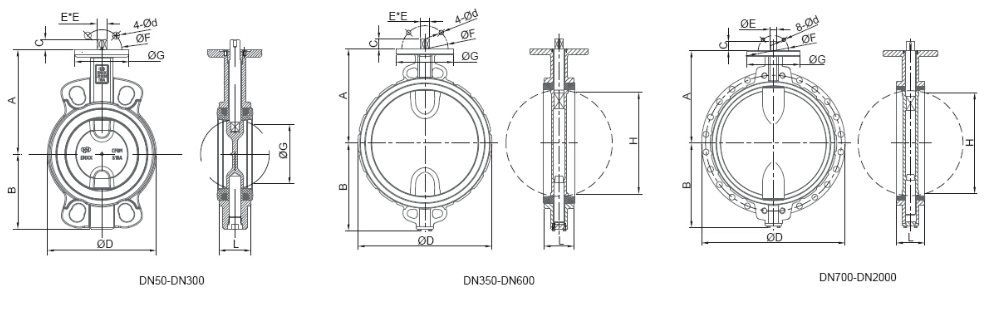

Drawing of Explosion Proof Control Valve
