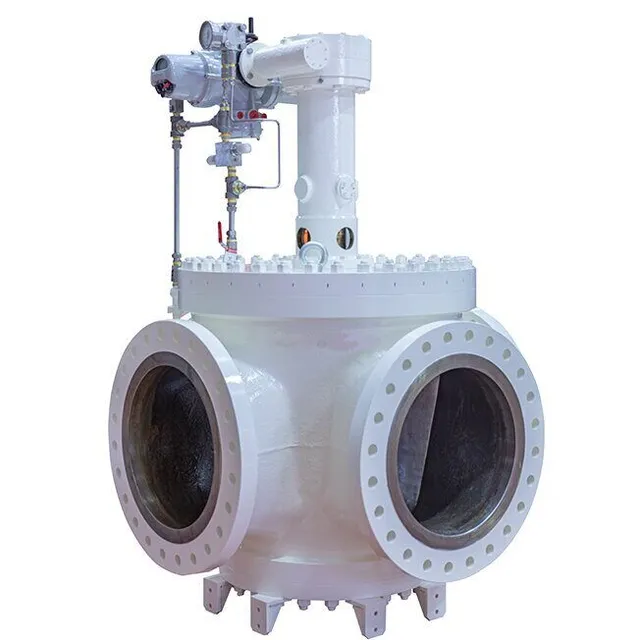

Pneumatic 4-Way Diverter Control Valve, 4-36 IN, ISO 17292
Key Specifications / Features
hits: 0
Recommending our 4-way diverter valves, combining the benefits of ball and plug valves to ensure zero leakage. Ideal for diverting process flow in two directions, they offer customizable port designs to suit various applications. Thanks to their low torque requirements, smaller actuators can be chosen, with fixed lifting lugs for easy handling. Maintenance is simplified with renewable seats and the option for metal or soft seats. Additional features include a blow-out-proof stem and optional emergency sealing fittings and locking device. Experience seamless operation and easy maintenance with our versatile 4-way diverter valves.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: 4-Way Diverter Control Valve
Design Standard: ASME B16.34, ISO 14313, ISO 17292
Size Range: 4 Inch - 36 Inch,
Pressure Rating: Class 150 LB - 1500 LB
Material: Carbon Steel, Stainless Steel, Duplex, Alloy Steel
Operator: Pneumatic Actuator, Hydraulic Actuator, Electric Actuator
Fire Safe Standard: API 607, ISO 10497, API 6FA
Test Standard: API 598, ISO 14313
End Connection: RF (Raised Face), RTJ (Ring Type Joint), BW (Butt Weld)
End Connection Standard: ASME B16.5, ASME B16.25, DIN EN 1092-1
Product Name: 4-Way Diverter Control Valve
Design Standard: ASME B16.34, ISO 14313, ISO 17292
Size Range: 4 Inch - 36 Inch,
Pressure Rating: Class 150 LB - 1500 LB
Material: Carbon Steel, Stainless Steel, Duplex, Alloy Steel
Operator: Pneumatic Actuator, Hydraulic Actuator, Electric Actuator
Fire Safe Standard: API 607, ISO 10497, API 6FA
Test Standard: API 598, ISO 14313
End Connection: RF (Raised Face), RTJ (Ring Type Joint), BW (Butt Weld)
End Connection Standard: ASME B16.5, ASME B16.25, DIN EN 1092-1
