Motorized Butterfly Control Valve, CPVC, PPH, UPVC, 2-12 IN
Key Specifications / Features
Hits: 0
Our UPVC, CPVC, PPH motorized butterfly control valves offer a host of benefits for your industrial needs. With an explosion-proof actuator, they ensure safe operation in hazardous environments. Designed to handle various mediums including gas, water, and oil, these valves provide versatile functionality. Offering reliable On/Off control, they guarantee precise regulation of flow. Available in sizes ranging from 2 to 12 inches, equivalent to DN50 to DN300, and built to withstand Class 150 LB pressure ratings, our valves cater to diverse applications. Trust our products for efficient performance, durability, and safety in your operations.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: CPVC Motorized Butterfly Control Valve
Size Range: 2 Inch - 12 Inch, DN50-DN300
Pressure Rating: PN10, PN16, Class 150 LB
Body Material: UPVC, CPVC, PPH
Ball: UPVC, CPVC, PPH
Seat: NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), VITON (Fluorocarbon Rubber)
End Connection: Wafer, Lug
End:
EN 1092: PN6, PN10, PN16
ASME Class 150 LB
AS 4087 PN10, PN16
JIS 5K, 10K
Medium: Gas, Oil, Water, etc.
Electric Actuator: On/Off, Adjustable Type
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
Optional:
Explosion-proof actuator: Exd II CT5, Exd II BT5
Product Name: CPVC Motorized Butterfly Control Valve
Size Range: 2 Inch - 12 Inch, DN50-DN300
Pressure Rating: PN10, PN16, Class 150 LB
Body Material: UPVC, CPVC, PPH
Ball: UPVC, CPVC, PPH
Seat: NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), VITON (Fluorocarbon Rubber)
End Connection: Wafer, Lug
End:
EN 1092: PN6, PN10, PN16
ASME Class 150 LB
AS 4087 PN10, PN16
JIS 5K, 10K
Medium: Gas, Oil, Water, etc.
Electric Actuator: On/Off, Adjustable Type
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
Optional:
Explosion-proof actuator: Exd II CT5, Exd II BT5

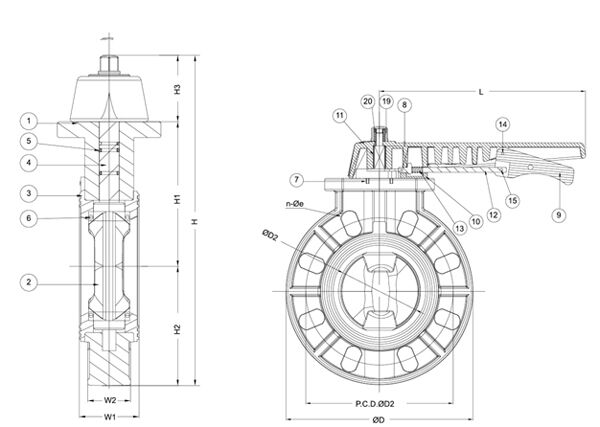

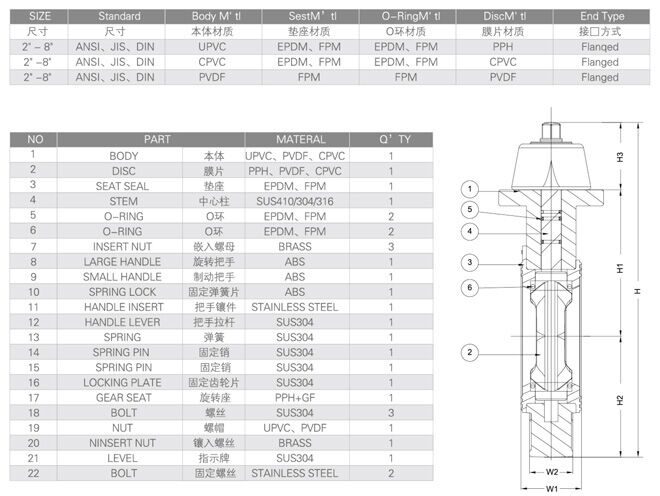

Drawing of Butterfly Control Valve
