Motorized Control Valve, 1-6 Inch, SS 316, Class 150 LB
Key Specifications / Features
hits: 0
This control valve features the proven Sliding Gate design in a lightweight, compact wafer-style body, significantly reducing the size and weight of conventional control valves. It offers high flow rates, self-cleaning seats, and reduced noise. The straight-through design enhances resistance to cavitation and flashing. Available in sizes 1-6 inches (DN25-DN150) and pressure ratings PN25, Class 150 LB, it operates on a 4-20 mA signal. Constructed from carbon steel or stainless steel 316, it ensures superior performance and reliability.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Wafer Style Motorized Control Valve
Size Range: 1 Inch - 6 Inch, DN25-DN150
Pressure: PN25, Class 150 LB
Body/Bonnet Connection:
Stainless Steel 316 (ASME SA-479)
Carbon Steel (SA-105)
Trim Materia: Stainless Steel 316
Seats Materials:
Jorcote/SS 316 – Standard
Jorcote with SS 303 - optional
Yoke Materials: Ductile Iron, NAMUR Cast Iron
Packing Material: Spring loaded Teflon V-Ring to 500°F (260°C), Grafoil above 500°F (260°C)
Shutoff: ANSI Class IV tightness
Ranges: 4 - 20 mA, 0 -10 V
Action: Direct, Reverse
Turndown Ratio Capability: 100:1
Features & Benefits
1. Easy Installation: Designed with a wafer body for seamless installation between flanges.
2. High Flow Rates: Engineered to support high flow rates efficiently.
3. Self-Cleaning Seats: Equipped with self-cleaning, self-lapping seats for optimal performance.
4. Noise Reduction: Generates less noise compared to conventional globe or cage valves.
5. Enhanced Resistance: The straight-through, wafer design offers superior resistance to cavitation and flashing.

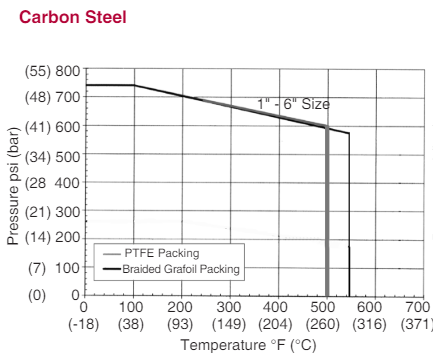

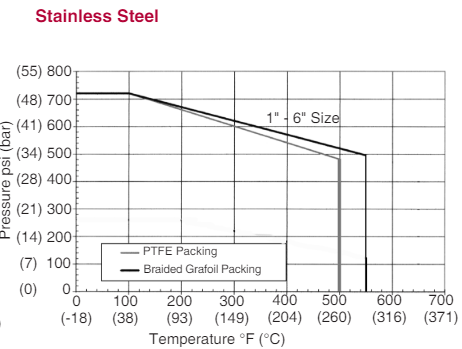

Pressure/Temperature Chart
Dimensions
Product Name: Wafer Style Motorized Control Valve
Size Range: 1 Inch - 6 Inch, DN25-DN150
Pressure: PN25, Class 150 LB
Body/Bonnet Connection:
Stainless Steel 316 (ASME SA-479)
Carbon Steel (SA-105)
Trim Materia: Stainless Steel 316
Seats Materials:
Jorcote/SS 316 – Standard
Jorcote with SS 303 - optional
Yoke Materials: Ductile Iron, NAMUR Cast Iron
Packing Material: Spring loaded Teflon V-Ring to 500°F (260°C), Grafoil above 500°F (260°C)
Shutoff: ANSI Class IV tightness
Ranges: 4 - 20 mA, 0 -10 V
Action: Direct, Reverse
Turndown Ratio Capability: 100:1
Features & Benefits
1. Easy Installation: Designed with a wafer body for seamless installation between flanges.
2. High Flow Rates: Engineered to support high flow rates efficiently.
3. Self-Cleaning Seats: Equipped with self-cleaning, self-lapping seats for optimal performance.
4. Noise Reduction: Generates less noise compared to conventional globe or cage valves.
5. Enhanced Resistance: The straight-through, wafer design offers superior resistance to cavitation and flashing.
Pressure/Temperature Chart
Dimensions
