Fluorine Lined Butterfly Control Valve, Electric, DN50-DN700

Key Specifications / Features

Hits: 2

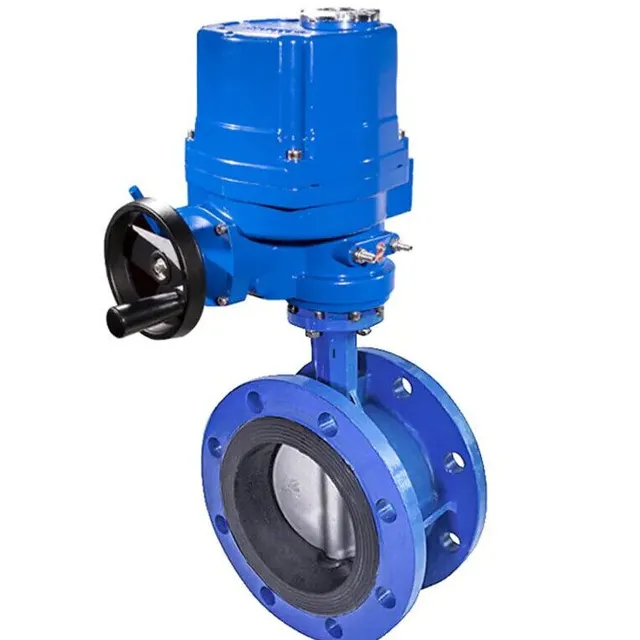

Introducing the Fluorine Lined Butterfly Control Valve Manufacturer, offering lightweight solutions with soft seal technology. Crafted from durable Cast Iron or Ductile Iron materials with a Fluorine Lined interior, these valves ensure corrosion resistance and longevity. Available in sizes ranging from 2 to 20 inches (DN50-DN700) with PN15 pressure ratings, they provide versatile options for various applications. The electrically operated flanged soft seal butterfly valve features a rapid open-close mechanism, suitable for temperatures ≤120°C and nominal pressures ≤1.6MPa. Equipped with a partial rotary electric actuator and advanced control system, it's ideal for a range of valves requiring 90° rotation, widely utilized across industries including food, pharmaceuticals, chemicals, oil, power generation, metallurgy, textiles, paper production, and water supply.
Request a quote

Detail Information

SPECIFICATIONS
Product Name: Fluorine Lined Butterfly Control Valve
Key Features: Light Weight, Soft Seal, Cast Iron, Fluorine Lined
Size Range: DN50-DN700, 2 Inch - 20 Inch
Pressure Rating: PN16, Class 150 LB
Materials: Ductile Iron, Cast Iron, ASTM A216 WCB, Stainless Steel
Medium: Water, air, oils, etc
Suitable Temperature: ≤120°C

Characteristics:
1. Low operation torque for effortless use
2. Mountable in any orientation for convenient maintenance
3. Compact design with ample flow capacity
4. High precision regulation and reliable sealing ensure efficiency
5. Lightweight construction for easy handling
6. Replaceable seal parts guarantee zero leakage
7. Seal material features anti-aging and corrosion resistance for long-term reliability.

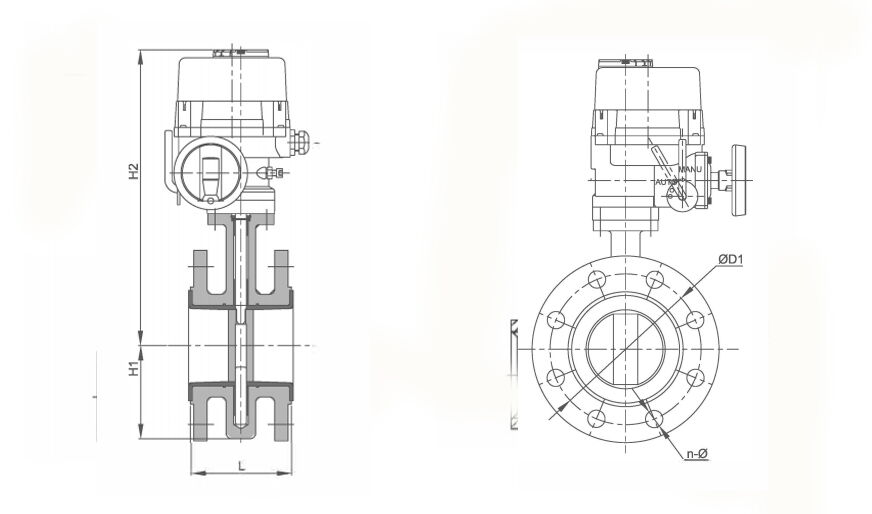

Drawing of Butterfly Control Valve
Drawing of Fluorine Lined Butterfly Control Valve
