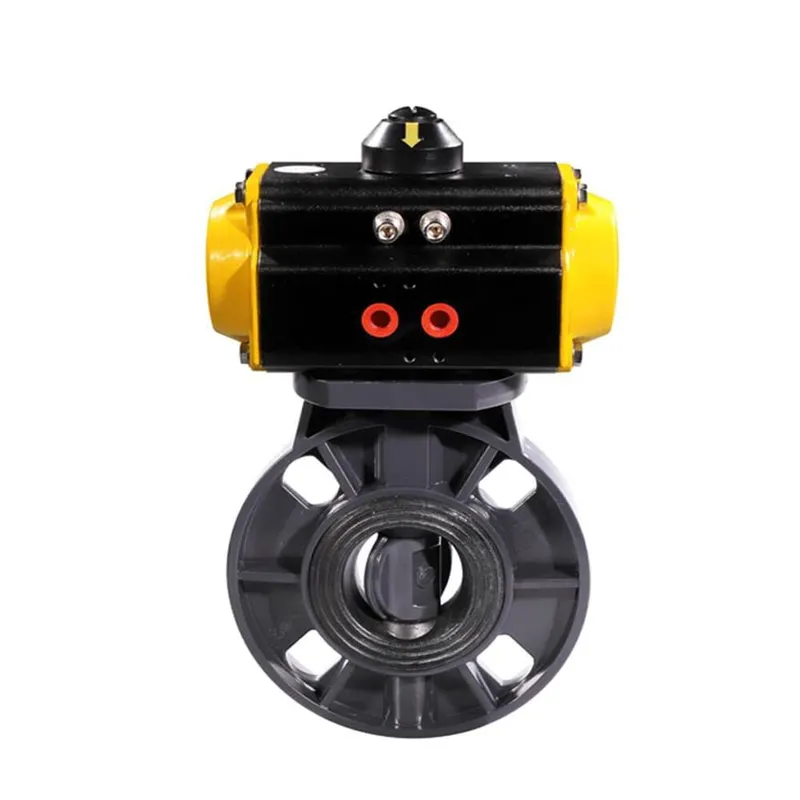

CPVC Pneumatic Butterfly Control Valve， 2-20 Inch, PN10
Key Specifications / Features
Hits: 8
Our CPVC Pneumatic Butterfly Control Valve, available in sizes 2-20 inches (DN50-DN500), is designed for versatility and reliability. Rated at PN10 and 150 LB, this valve features a fluorine-lined, multi-function design with plastic UPVC construction and options for wafer or flanged ends. Ideal for water and light industrial applications, it offers excellent sealing performance, even in vacuum systems. The unique trapezoidal bushing and jagged cavity ensure an airtight seal with minimal separation torque. This valve includes a double self-lubricating seal and supports direct actuator mounting, handle, or gear box operation, providing flexibility and ease of use.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: CPVC Pneumatic Butterfly Control Valve
Size Range: 2 Inch - 20 Inch, DN50-DN500
Pressure: PN10, Class 150 LB
Body Material: Plastic UPVC
Stem Material: Plastic UPVC
Sealing Material: NBR, EPDM
End Connection: Wafer, Flanged
Structure Type: Midline Structure A Type
Application Medium: Water, Air, Gas, And Other Medium
Operating Temperature: -20°C to 80°C
Product Name: CPVC Pneumatic Butterfly Control Valve
Size Range: 2 Inch - 20 Inch, DN50-DN500
Pressure: PN10, Class 150 LB
Body Material: Plastic UPVC
Stem Material: Plastic UPVC
Sealing Material: NBR, EPDM
End Connection: Wafer, Flanged
Structure Type: Midline Structure A Type
Application Medium: Water, Air, Gas, And Other Medium
Operating Temperature: -20°C to 80°C
