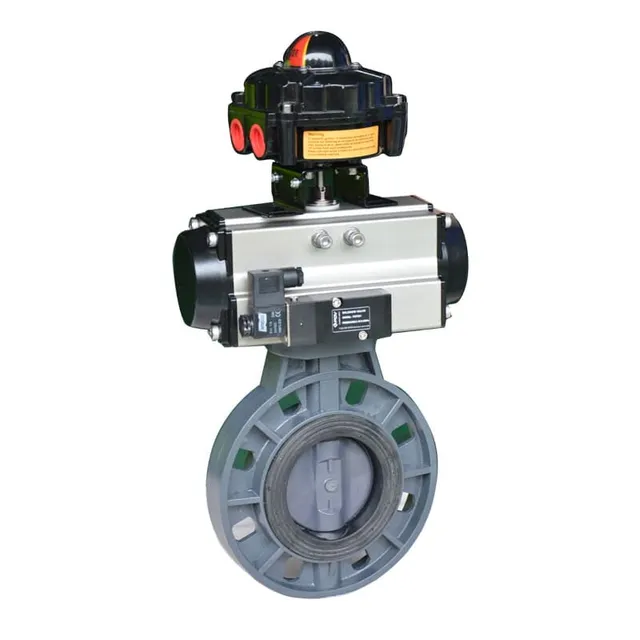

UPVC Butterfly Control Valve, Pneumatic, 2-12 Inch, 150 LB
Key Specifications / Features
Hits: 0
Our UPVC butterfly control valve, equipped with a pneumatic actuator, is designed for high efficiency and durability. Made from UPVC, CPVC, and PPH materials, it offers excellent corrosion resistance and longevity. Suitable for sizes ranging from 2 to 12 inches (DN50-DN300) and pressure ratings of PN10, PN16, and Class 150 LB, it meets a wide range of industrial requirements. The valve features versatile wafer and lug ends for easy installation. Choose our butterfly control valve for reliable performance, low maintenance, and superior resistance to chemicals and harsh environments.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: UPVC Butterfly Control Valves
Body Material: UPVC, CPVC, PPH
Ball: UPVC, CPVC, PPH
Seat: NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), VITON (Fluorocarbon Rubber)
Size Range: 2 Inch - 12 Inch, DN50-DN300
Pressure Rating: PN10, PN16, Class 150 LB
End:
EN 1092 PN 6, PN10, PN16, PN25, PN40
ASME Class 150 LB AS 4087 PN10, PN16, PN25, PN40
JIS 5K, 10K
Pneumatic Actuator: Double acting,Single acting normally closed, acting,Single normally open
Option: Solenoid valve, Limit switch box , filter, E/P positioner, hand wheel
End Connection: Wafer, Lug
Product Name: UPVC Butterfly Control Valves
Body Material: UPVC, CPVC, PPH
Ball: UPVC, CPVC, PPH
Seat: NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), VITON (Fluorocarbon Rubber)
Size Range: 2 Inch - 12 Inch, DN50-DN300
Pressure Rating: PN10, PN16, Class 150 LB
End:
EN 1092 PN 6, PN10, PN16, PN25, PN40
ASME Class 150 LB AS 4087 PN10, PN16, PN25, PN40
JIS 5K, 10K
Pneumatic Actuator: Double acting,Single acting normally closed, acting,Single normally open
Option: Solenoid valve, Limit switch box , filter, E/P positioner, hand wheel
End Connection: Wafer, Lug

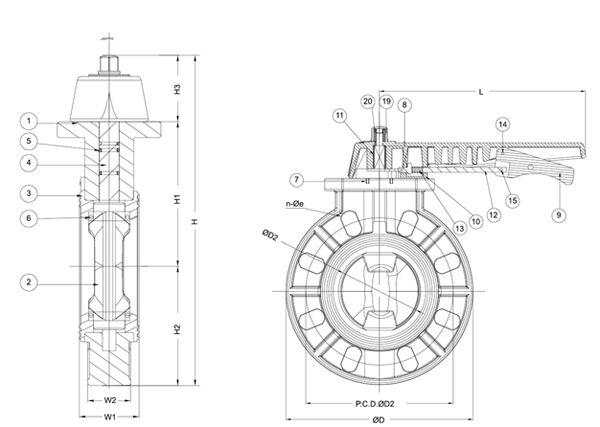

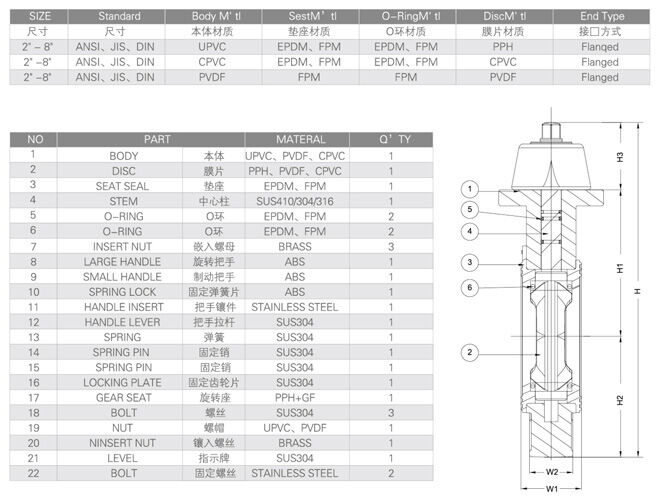

Drawing of Butterfly Control Valve
