High Pressure Globe Angle Control Valve, 2-6 IN, 900-2500 LB
Key Specifications / Features
hits: 1
Designed for precise control of steam, gases, and diverse liquid applications, these high-pressure globe and angle control valves ensure superior pressure and flow management. Engineered specifically for the demanding environments of the process control industry, they feature robust metal seats, cage guiding, and a quick-change trim mechanism. Their push-down-to-close valve plug action, coupled with balanced valve plugs, enhances operational reliability. Available in sizes ranging from 2 to 6 inches (DN50-DN150), with pressure ratings from Class 900 to 2500 LB, and constructed from ASTM A352 LCC or ASTM A216 WCB materials, these valves offer flexibility and durability. Ideal for applications requiring precise regulation under high pressure, they are equipped with flange ends to meet industry standards.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: High Pressure Globe Angle Control Valve
Key Features: Cage Guided, Anti-cavitation
Size Range: 2 Inch - 6 Inch, DN50-DN150
Pressure: Class 900 LB - 2500 LB
Body Materials: ASTM A352 LCC, ASTM A216 WCB, WCC, ASTM A217 WC9, C5, Monel, ASTM A351 CF8M SST
Trim Materials:
Standard Material: SS 316, Stainless Steel
Optional Material: Alloy 6, Cobalt, Tungsten Carbide
Seats: Metal
Shutoff: Class II and V
Maximum Inlet Pressures and Temperatures: The Maximum Inlet Pressure and Temperature is consistent with ASME Class per ASME 16.34.
Flow Characteristics:
Quick opening
Linear
Equal percentage
Trim Options:
Noise Abatement
Anti-cavitation
Flow Direction: Flow Down
Features & Benefits

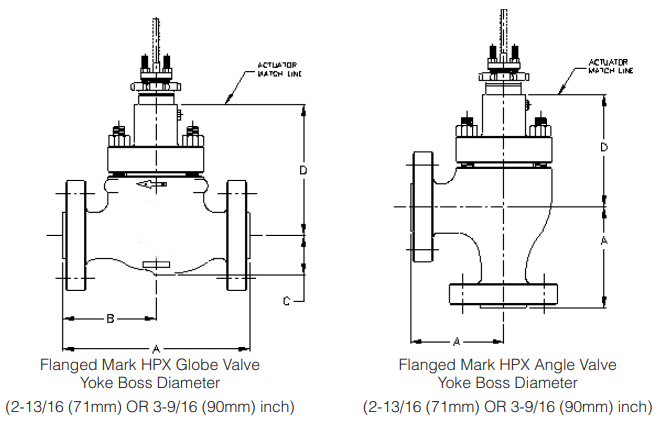

1. Available in in-line designs (2 Inch – 6 Inch) and angle designs (2 Inch).
2. Characterized flow options include equal percentage, modified equal percentage, and linear.
3. Ideal for high-pressure applications in the process control industry.
4. Optional body and trim materials available to suit various needs.
5. Quick-change trim design for easy maintenance.
6. Sour service capability with optional NACE MRO 175/ISO 15156-2009 compliance.
Product Name: High Pressure Globe Angle Control Valve
Key Features: Cage Guided, Anti-cavitation
Size Range: 2 Inch - 6 Inch, DN50-DN150
Pressure: Class 900 LB - 2500 LB
Body Materials: ASTM A352 LCC, ASTM A216 WCB, WCC, ASTM A217 WC9, C5, Monel, ASTM A351 CF8M SST
Trim Materials:
Standard Material: SS 316, Stainless Steel
Optional Material: Alloy 6, Cobalt, Tungsten Carbide
Seats: Metal
Shutoff: Class II and V
Maximum Inlet Pressures and Temperatures: The Maximum Inlet Pressure and Temperature is consistent with ASME Class per ASME 16.34.
Flow Characteristics:
Quick opening
Linear
Equal percentage
Trim Options:
Noise Abatement
Anti-cavitation
Flow Direction: Flow Down
Features & Benefits
1. Available in in-line designs (2 Inch – 6 Inch) and angle designs (2 Inch).
2. Characterized flow options include equal percentage, modified equal percentage, and linear.
3. Ideal for high-pressure applications in the process control industry.
4. Optional body and trim materials available to suit various needs.
5. Quick-change trim design for easy maintenance.
6. Sour service capability with optional NACE MRO 175/ISO 15156-2009 compliance.
