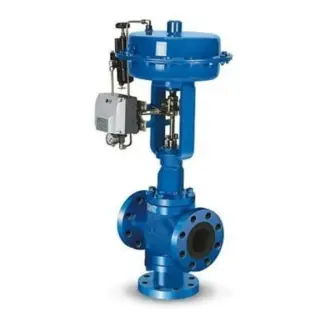

Skirt Guided Globe Control Valve, ASME B16.34, 1/2-12 Inch
Key Specifications / Features
hits: 1
Offering our Skirt Guided Globe Control Valve, designed and manufactured in China to meet ASME B16.34 standards. These valves are pressure balanced with a diaphragm actuator and are available in sizes ranging from DN15 to DN300 (1/2 to 12 inches) and pressure ratings from 150 to 600 LB, featuring flanged ends.
These versatile valves are ideal for combining two flows or diverting one flow into two outlets. Engineered to replace two single-ported control valves working in opposite directions, they efficiently manage converging or diverging flow. Perfect for controlling water, oil, seawater, and other liquids in heating or cooling systems involving heat exchange bypass control, they also excel in blending and on-off selector systems.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Skirt Guided Globe Control Valve
Design Standard: ASME B16.34
Size Range: DN15-DN300, 1/2 Inch - 12 Inch
Pressure Rating: Class 150 LB - 600 LB, PN20-PN100
Body Material: Carbon steel, Chrome-moly steel, Stainless steel, Monel, Alloy 20, Hastelloy B/C, Duplex stainless steel, Aluminium bronze
Bonnet: Standard up to 400°C Normalising between 250°C to 500°C Extended cold service -20°C to -100°C, Cryogenic -100 ºC to -250 ºC Bellowseal
Gland Packing: PTFE Chevrons, Graphite, Low emission
End Connection: Flanged, Butt weld
Trim Form: Skirt Guided, Linear, Pressure Balanced
Trim Material: Stainless steel, Duplex stainless steel, 13% Chrome steel, Monel Hastelloy B/C, Stellite
Flow Characteristic: Linear
Seat Leakage: As per ANSI / FCI 70-2-2006 Class III, IV, V and VI
Actuator Form: Diaphragm, Piston or Electric
Actuator Type: Direct, Reverse Acting, Direct Acting air failure "Close" top port. Reverse Acting air failure "Opens" top port.
Diaphragm: Nitrile, Neoprene (nylon reinforced)
Spring Range: 3-15 PSIG (0.2 - 1.0 Bar) 6-30 PSIG (0.4 - 2.0 Bar)
Air Supply: 20-60 PSIG (1.4 - 4.0 Bar)
Air Connection: 1/4 Inch or 1/2 Inch NPT
Accessories:
Valve Positioners: Pneumatic, Electro-Pneumatic, Smart
Instruments: Airset, Solenoid Valve, Volume Booster, Airlock, Limit Switches
Features:
Top or Side Mounted hand wheel, Limit Stops Removable Blind Head, Steam Jacketing etc.
Product Name: Skirt Guided Globe Control Valve
Design Standard: ASME B16.34
Size Range: DN15-DN300, 1/2 Inch - 12 Inch
Pressure Rating: Class 150 LB - 600 LB, PN20-PN100
Body Material: Carbon steel, Chrome-moly steel, Stainless steel, Monel, Alloy 20, Hastelloy B/C, Duplex stainless steel, Aluminium bronze
Bonnet: Standard up to 400°C Normalising between 250°C to 500°C Extended cold service -20°C to -100°C, Cryogenic -100 ºC to -250 ºC Bellowseal
Gland Packing: PTFE Chevrons, Graphite, Low emission
End Connection: Flanged, Butt weld
Trim Form: Skirt Guided, Linear, Pressure Balanced
Trim Material: Stainless steel, Duplex stainless steel, 13% Chrome steel, Monel Hastelloy B/C, Stellite
Flow Characteristic: Linear
Seat Leakage: As per ANSI / FCI 70-2-2006 Class III, IV, V and VI
Actuator Form: Diaphragm, Piston or Electric
Actuator Type: Direct, Reverse Acting, Direct Acting air failure "Close" top port. Reverse Acting air failure "Opens" top port.
Diaphragm: Nitrile, Neoprene (nylon reinforced)
Spring Range: 3-15 PSIG (0.2 - 1.0 Bar) 6-30 PSIG (0.4 - 2.0 Bar)
Air Supply: 20-60 PSIG (1.4 - 4.0 Bar)
Air Connection: 1/4 Inch or 1/2 Inch NPT
Accessories:
Valve Positioners: Pneumatic, Electro-Pneumatic, Smart
Instruments: Airset, Solenoid Valve, Volume Booster, Airlock, Limit Switches
Features:
Top or Side Mounted hand wheel, Limit Stops Removable Blind Head, Steam Jacketing etc.
