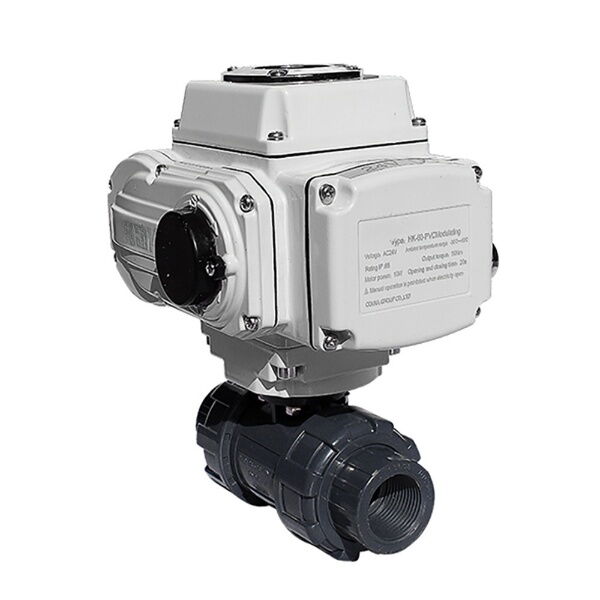

CPVC Electric Ball Control Valve, DN15-DN100, PN16, 150 LB
Key Specifications / Features
Hits: 2
Proudly present our CPVC Electric Ball Control Valve, engineered for superior performance and versatility. This 2-way valve, equipped with both On/Off and Modulating capabilities, ensures precise flow control in diverse applications. Featuring explosion-proof design and available in sizes DN15-DN100 (1/2-4 inches), it guarantees safe operation even in hazardous environments. With pressure ratings of PN10, PN16, and 150 LB, it handles varying pressure requirements effortlessly. Crafted from high-quality CPVC material, it offers exceptional corrosion resistance and durability. Its True Union End connections facilitate easy installation and maintenance, reducing downtime and enhancing productivity. Trust our valve to deliver reliable, efficient, and safe flow control solutions for your critical processes.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: CPVC Electric Ball Control Valve
Key Features: 2 Way, Explosion Proof, On/Off, Modulating Control, True Union
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN10, PN16, Class 150 LB
Applicable Standard: GB, ANSI, JIS, DIN
Body Material: CPVC
Valve Ball: Stainless Steel
Sealing Material: EODM
Voltage: 24V/12V DC, 110V/220V AC
End Connection: True Union
Medium: Water, Air, Gas
Temperature of Media: -10°C to 180°C
Leakage: Zero leakage, Return difference: ±2.5%
Product Name: CPVC Electric Ball Control Valve
Key Features: 2 Way, Explosion Proof, On/Off, Modulating Control, True Union
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN10, PN16, Class 150 LB
Applicable Standard: GB, ANSI, JIS, DIN
Body Material: CPVC
Valve Ball: Stainless Steel
Sealing Material: EODM
Voltage: 24V/12V DC, 110V/220V AC
End Connection: True Union
Medium: Water, Air, Gas
Temperature of Media: -10°C to 180°C
Leakage: Zero leakage, Return difference: ±2.5%
