Page 3 of China Globe Control Valve Manufacturer

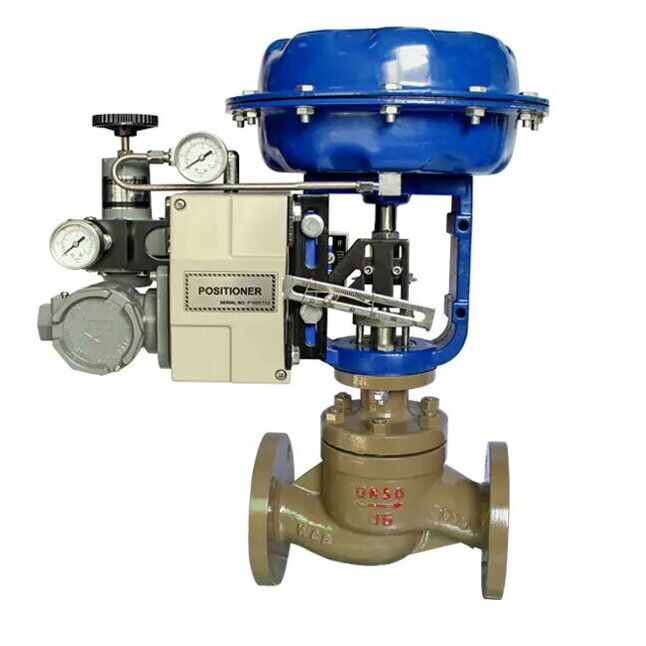

The pneumatic globe control valve consists of an actuator and an adjustment mechanism. The actuator provides thrust based on control signal pressure to move the adjustment mechanism. The valve body regulates flow, pressure, and temperature by contacting the medium directly. Key features include simple control, rapid response, intrinsic safety, and no need for explosion-proof measures. Widely used in petroleum, chemical, electric power, and metallurgy industries, it boasts a simple structure, high torque, explosion-proof design, reliable sealing, and easy installation. The valve minimizes friction, corrosion, and emissions while ensuring high vibration resistance and precise flow control with a streamlined fluid channel.

Introducing our Top Guided Control Valve with Quick Disassembly, designed for efficiency and precision. Featuring an unbalanced trim and straight-through design, it ensures minimal pressure drop and precise flow control. With sizes ranging from DN15 to DN200 (1/2 to 8 inches) and compatible with Class 150-300 LB flange ends, it offers versatility for various applications. The press-in type seat design enhances durability and minimizes leakage, while the flow-to-open design provides excellent controllability. Customized cages with noise reduction and anti-cavitation functions are available. Experience tight shut-off and optimal performance for medium flow or pressure control applications.

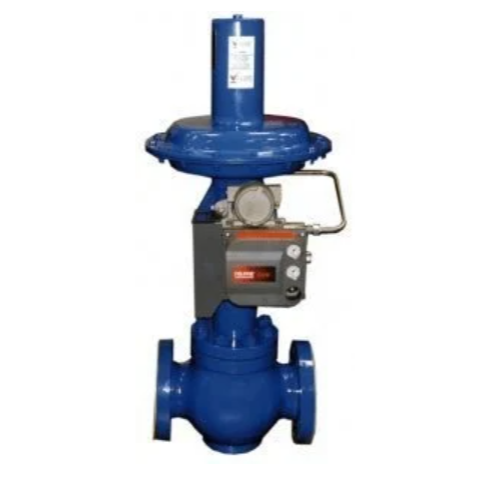

Recommending our Top Guided Globe Control Valve, designed for precision and efficiency in fluid control. Suitable for Micro Flow and Low Noise applications, it features diaphragm, piston, or electric operation. Available in sizes DN15-DN600 (1/2-24 inches) and pressure ratings from Class 150 to 2500 LB, with flanged ends. This globe valve leverages a variable area within the control trim to manage fluid flow, crafted in accordance with ASME B16.34 standards. It offers single-seated, unbalanced, or balanced trim configurations, with a variety of trim design options. The valve ensures excellent positional accuracy, high rangeability, and simplified maintenance, meeting diverse control needs across process and power industries.

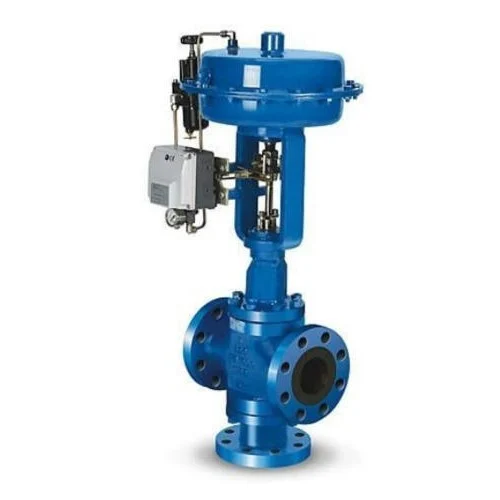

Offering our Skirt Guided Globe Control Valve, designed and manufactured in China to meet ASME B16.34 standards. These valves are pressure balanced with a diaphragm actuator and are available in sizes ranging from DN15 to DN300 (1/2 to 12 inches) and pressure ratings from 150 to 600 LB, featuring flanged ends. These versatile valves are ideal for combining two flows or diverting one flow into two outlets. Engineered to replace two single-ported control valves working in opposite directions, they efficiently manage converging or diverging flow. Perfect for controlling water, oil, seawater, and other liquids in heating or cooling systems involving heat exchange bypass control, they also excel in blending and on-off selector systems.

Introducing our Electric Actuator Valve, featuring a bolted design and compliant with API 6D, ASME B16.34, and ISO 14313 standards. Available in sizes DN25-DN600 (1-24 inches) and pressure ratings from 150 LB to 1500 LB (PN25-PN250). This valve offers automatic actuator selection and comes with pre-assembled instrumentation. It ensures easy maintenance with renewable seats and is available with both metal and soft seats. The design includes a blow-out-proof stem and strengthened stem packing as a default feature, providing reliability and durability for various industrial applications.

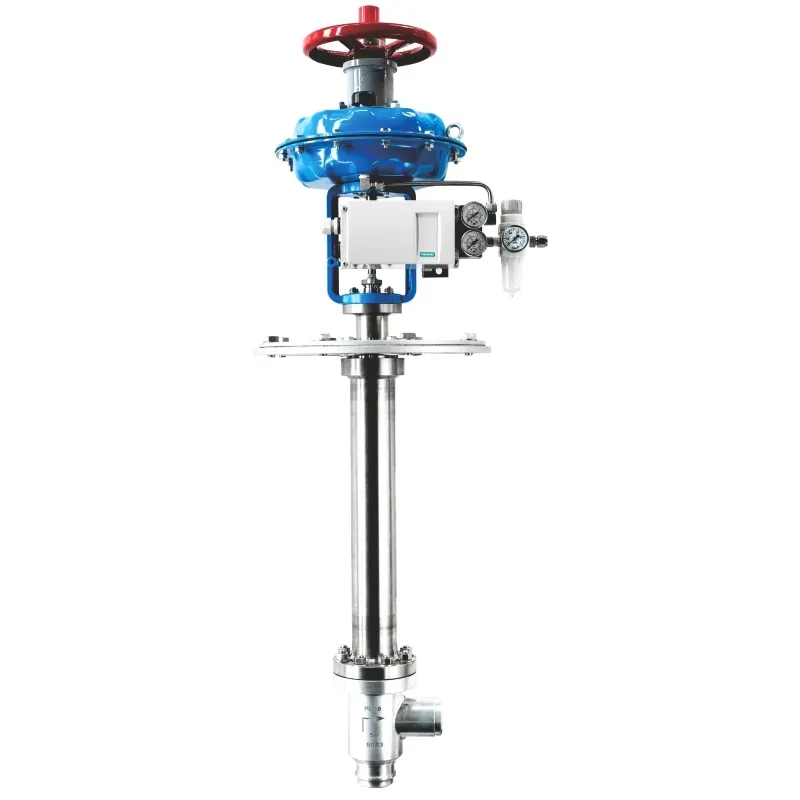

Cryogenic Globe Control Valves play a crucial role in managing gas and liquid flow at ultra-low temperatures, sometimes as low as -198°C (-325°F). Constructed from robust materials like stainless steel, they endure the harsh conditions of cryogenic environments. Typically featuring a globe-style, single-port design, they offer precise throttling or on/off control for cryogenic fluids. Specialized packing systems ensure enhanced stem sealing, preserving process fluid integrity. These valves boast seats engineered for long-lasting, reliable shutoff at extreme temperatures, eliminating the need for frequent maintenance. Widely used in air separation and LNG plants, they meet stringent safety and performance requirements for industrial gas applications.

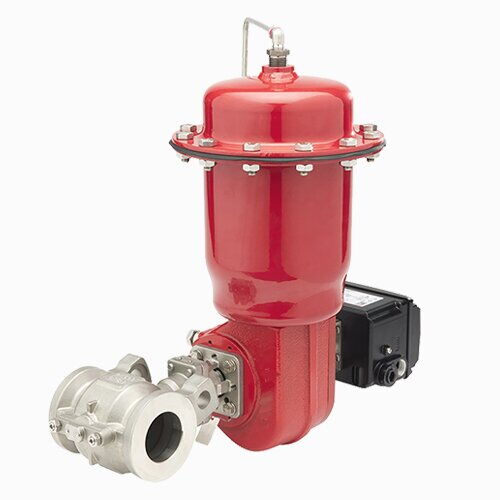

Available in sizes from 1-1/2 Inch to 4 Inch, this Rotary Globe Control Valve supports Class 150 LB to 600 LB (PN20-PN100) ratings. It features live loaded packing for enhanced performance and operates within a wide temperature range of -320°F to 750°F. Designed with a two-seat configuration for tight shutoff and extremely low torque, it is made from WCB, 316SS, 317SS, and other alloys. This valve is compliant with environmental and emission standards, suitable for both high and low temperature applications. It comes in both wafer and ANSI 150 versions, providing versatile solutions for various industrial needs.

The Globe 3-Way Mixing and Diverting Valve is designed for versatile fluid control in sizes ranging from 1 inch to 12 inches (DN25-DN300). Featuring a single-seated top guide and bolted bonnet, this valve supports pressure classes from 150 LB to 600 LB (PN20-PN100). Constructed from ASTM A216 WCB material, it ensures durability and reliability. The valve offers various flow characteristics, including linear, equal percentage, and modified percentage, making it suitable for a wide range of applications.

This non-balancing control valve features a top guiding structure that minimizes friction and fluid disturbances. Its reinforced guiding area ensures stable control and reduces vibration. The standardized, self-aligning stem guide allows for easy, tool-free disassembly and maintenance. The integral plug and seat structure comes in standard and severe conditions types, providing low noise and cavitation elimination. This design enhances performance and resistance to cavitation. Simple cage (trim) replacement accommodates various working conditions. The packing box offers tight sealing with multi-level protection, meeting stringent safety and reliability standards against any media.

Our Pneumatic Control Valve offers versatile fluid control capabilities, handling steam, overheated water, non-explosive gases, corrosive fluids, and more. This versatility makes it suitable for various sectors including textile dyeing and finishing, chemical processing, water treatment, food processing, and general industrial applications. Available in sizes ranging from DN15 to DN100 (1/2 inch to 4 inches) and with pressure ratings from PN16 to PN25 (Class 150 LB to 300 LB), it operates reliably in temperatures spanning from -20°C to +205°C. With linear and equipercentric flow characteristics, this valve ensures precise and efficient flow regulation across diverse industrial settings.

Introducing our Cage-guided Level Control Valves from the Globe straight-way series, engineered for versatility and high performance in primary applications. Featuring a balanced and cage-guided plug, the HCB series excels in heavy-duty tasks and demanding service conditions. With a straightforward design, diverse trim options, and a range of materials including ASTM A216 WCB, SS304, SS316, and more, these valves are ideal for various applications. They accommodate high temperatures, corrosive fluids, stringent noise requirements, and sour service compliant with NACE standards. Available in sizes ranging from 1 inch to 20 inches and pressure ratings from ANSI Class 150 LB to 2500 LB, with multiple end connections and face-to-face dimensions per IEC 60534-3-2 – long series. Flow direction options include flow to open and flow to close.

Introducing our Motorized Globe Control Valve, a pivotal component in industrial automation, widely utilized across diverse sectors including oil, chemicals, power generation, and pharmaceuticals. Engineered to the highest standards, with a pressure rating ranging from Class 150 LB to 2500 LB (PN16-PN260), and designed in accordance with ANSI/ISA 75.01.01 and ASME B16.34 standards. Its face-to-face dimensions conform to ASME B16.10, and it features flanges built to ASME B16.5 specifications. Crafted from top-grade materials including ASTM A351 CF8M, CF8, CF3M, CF3, ASTM A105, ASTM A216 WCB, WC6, and ASTM A352 LCB, with sizes available from 1 inch to 24 inches.
