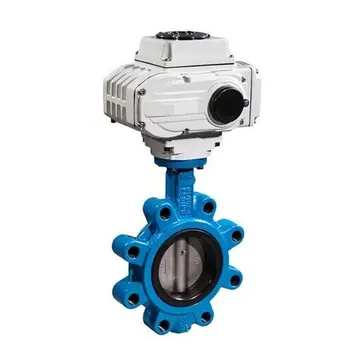

Lugged Electric Butterfly Control Valve, On/Off, 2-24 Inch
Key Specifications / Features
Hits: 1
Introducing our Lugged Electric Butterfly Control Valve, enhancing our product lineup with On/Off functionality and Energy Conservation features. Crafted from durable Cast Iron or Stainless Steel materials, it ensures reliability and longevity. Available in sizes ranging from 2 to 24 inches with PN10 and PN16 pressure ratings, it offers versatility for various applications. The valve is equipped with Wafer and Lug ends for easy installation and secure attachment. Experience precise control and efficient energy usage with this innovative addition to our product range. Ideal for industries requiring dependable fluid management solutions, guaranteeing reliable performance in diverse operational environments.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Lugged Electric Butterfly Control Valve
Size Range: 2 Inch - 24 Inch, DN50-DN600
Pressure Rating: PN10, PN16, Class 150 LB
Materials: Cast Iron, Stainless Steel, SS 304, SS 316, SS 316L
End Connection: Lugged
Voltage: DC-12V, 24V, AC-24V, 110V, 220V, 380V
Voltage Tolerance: ±10%
Temperature Of Media: -10°C to 180°C (14°F to 356°F)
Structure: Midline structure A type
Suitable Media: Water, Air, Oil, Gas, etc
Features: Large Size Range, Energy Conservation, Long Service Life, etc
Actuator Type: ON OFF Type, Regulating Type, and Intelligent Type
Rotation: Quarter-turn
Product Name: Lugged Electric Butterfly Control Valve
Size Range: 2 Inch - 24 Inch, DN50-DN600
Pressure Rating: PN10, PN16, Class 150 LB
Materials: Cast Iron, Stainless Steel, SS 304, SS 316, SS 316L
End Connection: Lugged
Voltage: DC-12V, 24V, AC-24V, 110V, 220V, 380V
Voltage Tolerance: ±10%
Temperature Of Media: -10°C to 180°C (14°F to 356°F)
Structure: Midline structure A type
Suitable Media: Water, Air, Oil, Gas, etc
Features: Large Size Range, Energy Conservation, Long Service Life, etc
Actuator Type: ON OFF Type, Regulating Type, and Intelligent Type
Rotation: Quarter-turn
Quarter-turn Butterfly Control Valve
Dimension of Quarter-turn Butterfly Control Valve
Dimension of Quarter-turn Butterfly Control Valve
