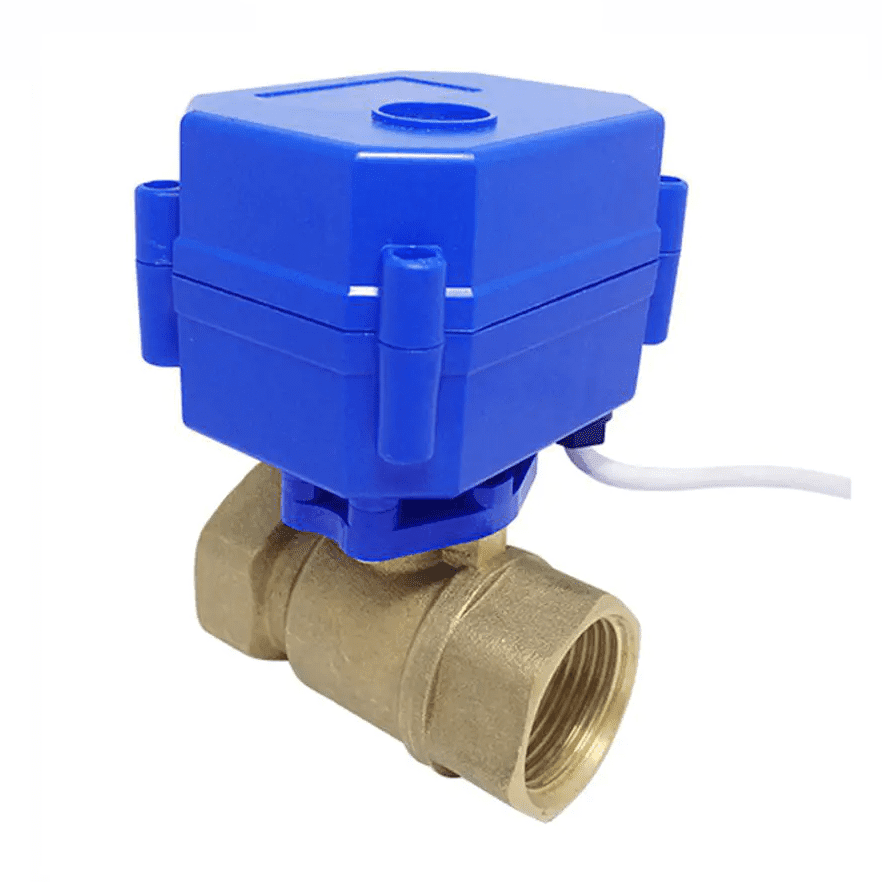

Mini Electric Brass Ball Control Valve, 1/2-3/4 Inch, 150 LB
Key Specifications / Features
hits: 0
Our Mini Electric Brass Ball Control Valve ensures zero leakage and reliable on/off control in a compact design. Suitable for sizes ranging from 1/2 to 3/4 inch, it is rated at PN10 and Class 150 LB. Constructed from high-quality brass with stainless steel components, this valve features BSP threads for easy installation. Benefits include exceptional durability, corrosion resistance, and maintenance-free operation. Ideal for water, gas, and other media, this valve offers precise control and long-lasting performance. Enhance your system’s efficiency with our cost-effective and dependable valve solution.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Mini Electric Brass Ball Control Valve
Size Range: 1/2 Inch - 3/4 Inch, DN15-DN20
Pressure Rating: PN10, Class 150 LB
Material: Brass, Stainless Steel, SS 304, SS 316
Sealing Material: SEPDM
Actuator Material: Engineering Plastics
Valve Ball: PVC, UPVC, Brass, Stainless Steel
Voltage: AC110V to 230V, DC9 to 24V
Working Current: ≤80mA
End Connection: BSP Thread
Medium: Water, Air
Temperature of Media: 2°C to 90°C
Ambient Temperature: -15°C to 50°C
Product Name: Mini Electric Brass Ball Control Valve
Size Range: 1/2 Inch - 3/4 Inch, DN15-DN20
Pressure Rating: PN10, Class 150 LB
Material: Brass, Stainless Steel, SS 304, SS 316
Sealing Material: SEPDM
Actuator Material: Engineering Plastics
Valve Ball: PVC, UPVC, Brass, Stainless Steel
Voltage: AC110V to 230V, DC9 to 24V
Working Current: ≤80mA
End Connection: BSP Thread
Medium: Water, Air
Temperature of Media: 2°C to 90°C
Ambient Temperature: -15°C to 50°C
