Understanding the Working Principle of Eccentric Rotary Control Valves
On this page

Introduction

Eccentric rotary control valves play a crucial role in modern fluid control systems by delivering precise regulation of gases and liquids across a wide array of industries. Unlike linear motion valves, these valves operate through a rotary movement—typically a quarter-turn (90 degrees)—which controls the opening and closing of the flow path. Their robust design, operational efficiency, and adaptability make them a preferred solution for applications ranging from general flow isolation to high-performance flow modulation.

In this article, we explore the working principle of eccentric rotary control valves, their design advantages, and the key features that contribute to their reliable performance in demanding service conditions.

What is an Eccentric Rotary Control Valve?

An eccentric rotary control valve is a type of control valve where the closure element (often called the plug or disc) rotates away from the valve seat when opening, reducing contact between the components during motion. The term "eccentric" refers to the offset design of the shaft in relation to the disc center, which allows the valve to minimize friction and wear during operation. This design provides smoother operation and longer life, especially in severe service environments.

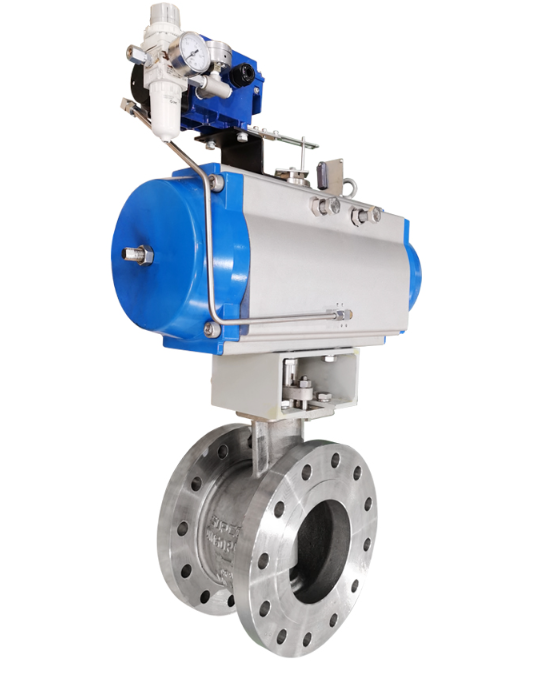

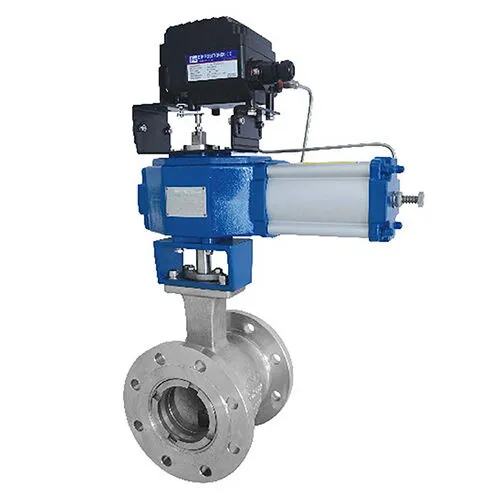

Eccentric Rotary Control Valve

Core Working Principle

The operating mechanism of an eccentric rotary valve revolves around a rotational movement of the plug or disc, which is mounted on an offset shaft. As the actuator turns the shaft, the disc rotates away from or toward the seat. During this process:

Opening: The disc moves away from the seat without sliding over it, significantly minimizing wear and friction.

Flow Modulation: The degree of opening determines the flow rate. This allows precise control over the media flow.

Closing: As the valve closes, the disc returns to align with the seat, and the eccentric movement ensures a tight, reliable seal.

This rotary action eliminates the sliding contact found in linear valves, improving sealing performance and operational longevity.

Key Features and Advantages of Eccentric Rotary Control Valve

1. Exceptional Reliability and Performance

One of the primary benefits of eccentric rotary control valves is their consistent and reliable operation, even in challenging environments.

Self-centering seat seal: The seat design automatically aligns with the plug (spool) during operation. This ensures dynamic contact and tight sealing.

Automatic lapping effect: As the disc moves into position, it naturally aligns and conforms with the sealing surface, enhancing sealing reliability.

Metal bearing protection: Bearings are sealed to prevent contamination from particles in the media, ensuring smooth rotation and reducing the chance of operational failure.

These features collectively enhance the valve’s durability, offering stable performance across a range of applications.

2. Extended Seat Life

Durability is a standout trait of eccentric rotary valves, particularly due to their engineered design to minimize friction and impact on the sealing surfaces.

Eccentric plug motion: This design reduces the contact between the disc and seat during movement, significantly lowering wear and tear.

Robust sealing materials: Seats can be manufactured from high-performance materials including:

316 stainless steel

A105 forged carbon steel with welded carbide

Industrial-grade ceramics

These materials provide excellent resistance to corrosion, erosion, and temperature-induced stress. By minimizing the force applied during valve closure, the valve not only reduces operating torque but also extends the seat's operational life—ideal for high-cycle or abrasive service conditions.

3. Simplified Installation and Integration

Eccentric rotary control valves are designed with user-friendly installation in mind, offering flexibility for various pipeline configurations.

Flanged body options: The valve body can be configured with standard flanged ends for easy connection to a wide range of piping systems. These flanges meet common pressure ratings and standards.

Flangeless design (wafer type): For applications where space is limited or weight needs to be minimized, a compact flangeless valve body is available. It can be easily centered and mounted using flange bolts.

Hidden flange screw design: Certain models are engineered to conceal flange bolts, offering a cleaner aesthetic and additional protection from exposure in harsh environments.

Additionally, the valve body’s precise machining ensures a reliable fit during installation, improving overall alignment and sealing performance within the system.

4. Bidirectional Sealing and Versatile Flow Direction

One of the distinct advantages of eccentric rotary valves is their ability to handle flow in either direction without compromising seal integrity.

Forward and reverse sealing: Thanks to the self-centering seat and the robust spool design, these valves can seal effectively in both forward and reverse flow directions.

Outlet protection during reverse flow: In reverse flow conditions, the turbulence zone created by the flowing medium is directed away from the seat surface. This reduces wear on the seat and enhances the valve's resistance to erosion.

Optimized 90-degree travel: The quarter-turn operation minimizes flow-induced scouring against the valve internals, preserving the plug and sealing surface even under turbulent or abrasive media flow.

This bidirectional functionality allows plant designers and operators to place the valve without worrying about flow direction, increasing installation flexibility.

Applications of Eccentric Rotary Control Valves

Given their robust design and versatile features, eccentric rotary control valves are used across many critical industries, including:

Chemical and Petrochemical Plants: For handling corrosive or high-temperature fluids with reliable tight shutoff and flow modulation.

Power Generation: In steam or water systems requiring control accuracy and durable components.

Water and Wastewater Treatment: For regulating large volumes of fluid with varying pressure conditions.

Oil and Gas: For process control in pipelines and refining systems, particularly where solids or abrasive media are present.

Pulp and Paper Industry: In slurry lines and pulp processing where abrasion-resistant valves are essential.

Their ability to handle tough service conditions, coupled with precise control capability, makes them indispensable in both process control and isolation applications.

Design Customization and Actuation Options

Modern eccentric rotary valves can be customized with various actuators and accessories to meet the specific demands of the application.

Manual gear operation for straightforward on-off control.

Electric actuators for integration into automated systems with feedback loops and remote control.

Pneumatic actuators for fast and reliable operation in hazardous or explosive environments.

Positioners and feedback sensors to ensure precise valve modulation and real-time control system communication.

Additional accessories such as limit switches, solenoid valves, and air filters can be integrated to support advanced automation and safety requirements.

Maintenance and Operational Longevity

With fewer wear-prone parts compared to linear control valves, eccentric rotary valves require less maintenance and are easier to service.

Low torque operation: Reduces stress on actuators and prolongs mechanical life.

Reduced friction: Thanks to the eccentric motion, the valve minimizes component wear, requiring less frequent maintenance intervals.

Field-replaceable components: Seats, seals, and actuators can be easily replaced without removing the valve body from the pipeline.

Their simplified construction ensures quick access to internal components, reducing downtime and supporting efficient plant maintenance schedules.

Conclusion

Eccentric rotary control valves offer a combination of precision, durability, and efficiency that is hard to match. Their innovative eccentric design reduces friction, improves sealing, and ensures a long service life under demanding conditions. With options for bidirectional sealing, robust material selections, and flexible installation formats, these valves are engineered to meet the modern needs of fluid control across diverse industries.

Whether for new installations or retrofits, selecting an eccentric rotary control valve can lead to improved process reliability, lower maintenance costs, and better control over critical operations.
