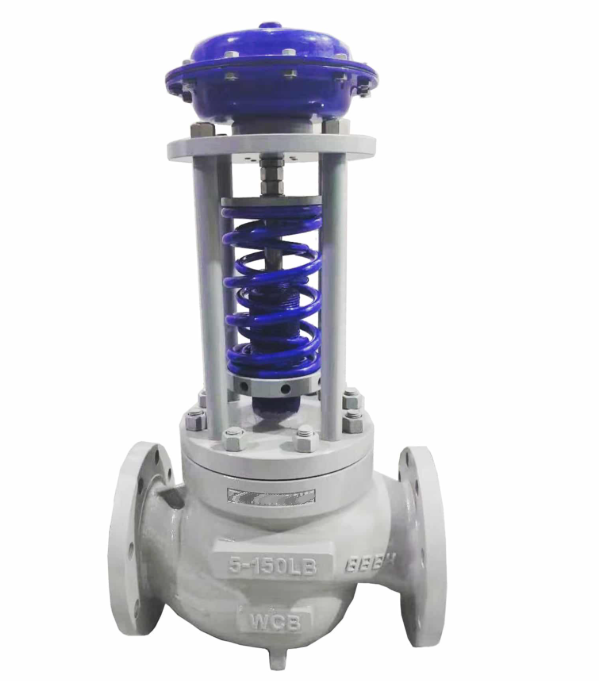

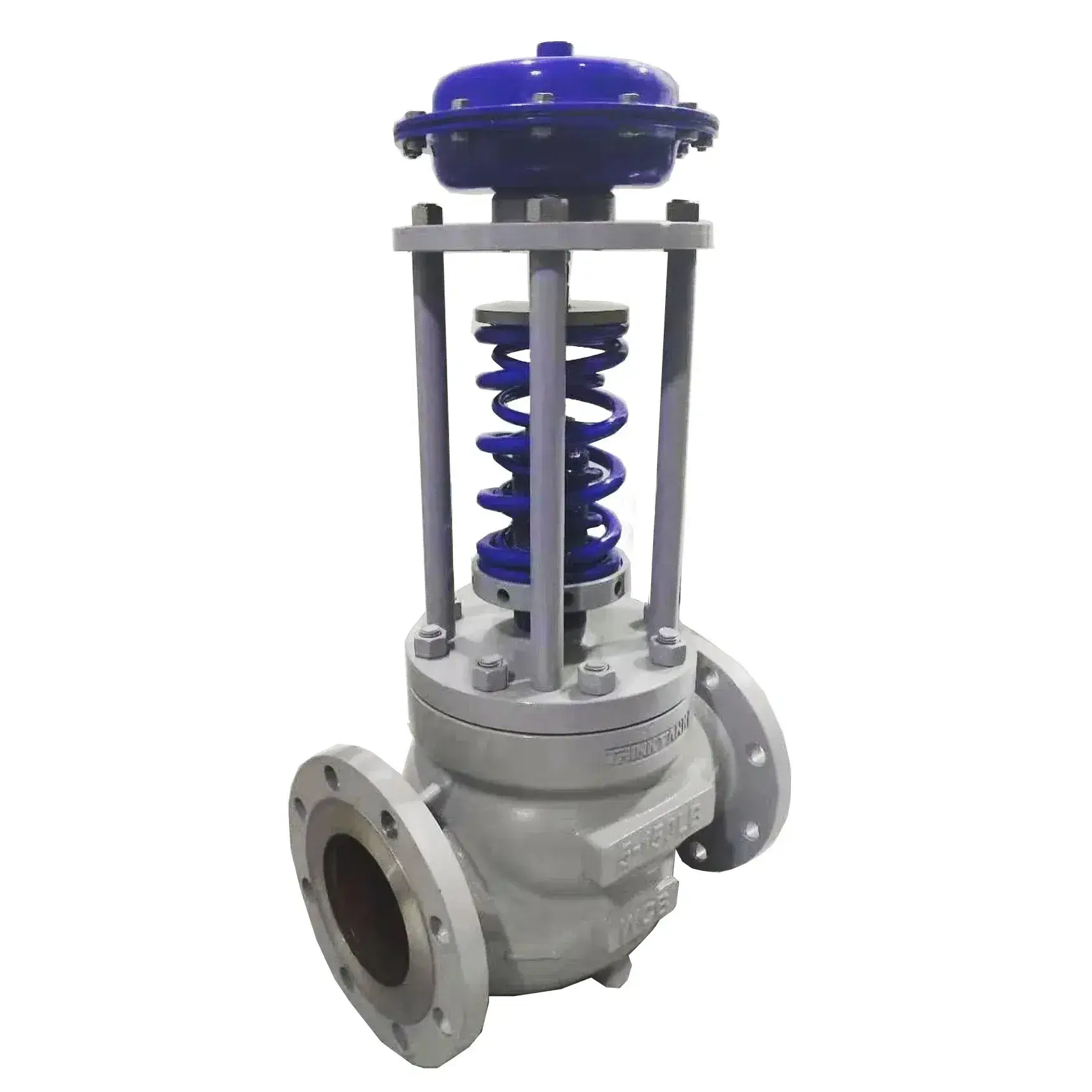

In modern fluid control systems, the demand for precision, reliability, and energy efficiency is ever-increasing. Among the various technologies developed to meet these demands, the self-operated control valve stands out as a simple yet highly effective solution. This valve utilizes the medium's own pressure or temperature as the driving force, eliminating the need for external energy sources such as electricity or compressed air.
Unlike traditional control valves that require pneumatic or electric actuators, the self-operated valve operates autonomously. It adjusts the valve opening in response to changes in flow, pressure, or temperature using internal mechanisms such as springs, bellows, or diaphragms. This inherent simplicity translates into greater energy savings, reduced installation complexity, and lower maintenance costs.
Self-operated control valves are particularly effective in maintaining upstream or downstream pressure, offering reliable performance across a wide range of applications, including industrial processing, utilities, and HVAC systems.
Self-operated control valves (also known as self-actuated valves) utilize the process medium's energy—be it gas, liquid, or steam—to regulate flow conditions. The valve senses fluctuations in pressure, temperature, or differential pressure and responds by adjusting its internal plug or disc position to maintain a target set-point.
This mechanism relies entirely on the internal balance of forces, such as spring tension versus sensed pressure, to achieve regulation. The valve continuously adjusts without requiring a control signal from a secondary instrument or a power supply.
Because of this self-reliant operation, these valves are commonly used in pipelines, tanks, and process vessels where a constant pressure or temperature must be maintained regardless of fluctuations in upstream or downstream conditions.
Self-operated control valves are particularly suited for applications where:
External power is unavailable or undesirable.
Continuous, automatic pressure control is required.
Simplicity and reliability are essential.
Energy savings and low maintenance are priorities.
Typical industries and systems that use these valves include:
Petrochemical plants
Pharmaceutical manufacturing
Food and beverage processing
HVAC heating and cooling water systems
Boiler and steam systems
Water supply and irrigation systems
Self-operated control valves can be categorized based on the parameter they regulate and the control direction. The most common types include:
Also known as pressure-reducing valves, these control the pressure after the valve. Their main function is to maintain the downstream pressure at a desired set-point, regardless of fluctuations in upstream pressure or varying flow demands.
Applications:
Regulating steam, gas, or water pressure in distribution lines.
Reducing pressure before it reaches equipment or end-users.
Also known as back pressure regulators or pressure-relieving valves, these control the pressure before the valve. They open proportionally as upstream pressure increases above the set-point, thereby preventing overpressure conditions.
Applications:
Maintaining tank or pipeline back pressure.
Acting as a pressure relief valve to avoid system overload.
Unlike safety relief valves that pop open at a specific limit, upstream control valves respond gradually to pressure changes, allowing continuous and proportional regulation.
Self-operated valves are further divided based on how the control force is applied:
These are also referred to as spring-loaded valves. The balancing mechanism typically includes an elastic element like a spring, diaphragm, or bellows. The sensed pressure directly acts on this element, which adjusts the valve opening accordingly.
Benefits:
Simple structure
Compact design
Quick response
Best for low to moderate flow applications
In these designs, a pilot valve amplifies the feedback signal (such as pressure) and uses it to drive a larger main actuator. This configuration allows control of higher flows and more stable regulation over a wider pressure range.
Benefits:
Greater control accuracy
Handles high flow capacities
Suitable for high-pressure systems
Control Valve Functions Based on Regulated Parameter
The most common application. Pressure is sensed via impulse lines and compared against a spring force to modulate the valve opening.
Here, the valve regulates based on differential pressure measured across an orifice plate or flow resistance element downstream of the valve. The resulting signal adjusts the valve to maintain a constant flow rate.
The valve uses a thermal bulb or sensor filled with a temperature-sensitive fluid. Changes in fluid expansion or contraction actuate the valve to maintain temperature set-points.
Self-operated control valves offer several notable benefits:
No External Power Required: Eliminates the need for electric or pneumatic supply, reducing energy consumption and simplifying installation.
Low Maintenance: Fewer moving parts and no control signal wiring result in reduced failure risk and easier upkeep.
Cost-effective: Eliminates the cost of control instruments and actuators. Ideal for budget-sensitive or remote installations.
High Reliability: Operates autonomously and reliably even in remote or unmanned locations.
Stable System Performance: In water circulation systems, self-operated valves stabilize pump operation, simplify commissioning, and help achieve dynamic balance.
They are especially effective in closed-loop systems such as:
Hot water heating
Chilled water systems
Air conditioning networks
When properly selected and installed, these valves significantly simplify system tuning and enhance long-term stability.
By relying solely on process conditions for actuation, self-operated valves help lower operational energy costs and support sustainability goals.
Self-operated valves can be calibrated for a broad range of pressure set-points. The use of interchangeable springs and pilot adjustments allows for precision tuning.
Rubber diaphragms and pressure-balancing mechanisms ensure quick, accurate responses to slight changes in pressure, improving control precision.
The pressure set-point can often be adjusted without shutting down the system, providing operational flexibility.
With no bulky actuators or complex controllers, self-operated valves are compact, easy to transport, and robust enough for tough environments.
Self-operated valves consist of:
Valve Body: Typically made of stainless steel, cast steel, or brass, depending on application.
Actuator: A diaphragm or bellows mechanism that responds to pressure or temperature changes.
Spring Assembly: Balances the force of the sensed signal to adjust valve position.
Pilot Valve (optional): Used in pilot-operated designs for signal amplification.
Internal materials and seals are chosen based on the medium type (steam, gas, water, corrosive fluid) and temperature range. For aggressive environments, PTFE or EPDM linings may be used to enhance resistance.
While self-operated valves are highly efficient and reliable, they do come with certain limitations:
Limited to Constant Set-points: These valves are not suited for applications requiring frequent changes in control parameters.
Lower Control Flexibility: Cannot be integrated into complex control systems like DCS or SCADA without manual intervention.
Sizing Sensitivity: Proper valve sizing is critical. Incorrect sizing can lead to instability or poor performance.
Lag Time in Response: While response is generally fast, it is not as precise or rapid as electronic PID-controlled systems.
Despite these, in many practical scenarios, the simplicity and reliability outweigh the limitations—especially where set-point variability is low and reliability is paramount.
Self-operated control valves represent an intelligent and economical approach to flow regulation. Their ability to function independently without external energy makes them ideal for decentralized systems and remote operations. Whether managing pressure, temperature, or flow, these valves provide consistent, automatic control with minimal infrastructure and maintenance needs.
As industries increasingly prioritize energy efficiency and automation, the self-operated control valve stands as a crucial component in sustainable system design. With the right selection, installation, and calibration, these valves can significantly enhance operational stability and system performance for a broad range of applications.
