Control Valves: Unbalanced Trim vs. Balanced Trim – A Comprehensive Guide

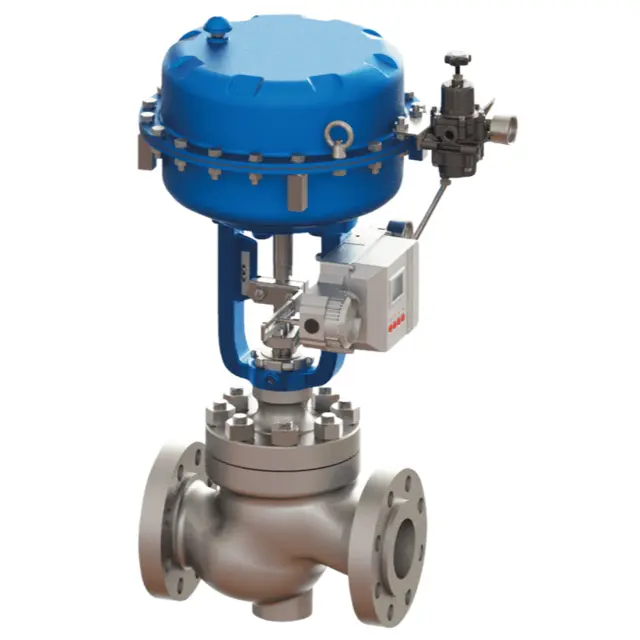

Control valves are critical components in industrial fluid systems, regulating flow, pressure, and temperature. One of the key distinctions among control valves lies in their trim design—specifically, whether they use an unbalanced trim or a balanced trim. The choice between these designs significantly impacts valve performance, durability, and suitability for specific applications.

This article explores the differences between unbalanced and balanced trim control valves, their advantages and disadvantages, and how to select the right trim for corrosion and erosion resistance.

Valve trim consists of the internal, wetted, and replaceable parts of a control valve that directly interact with the process fluid. These components play a crucial role in regulating flow, pressure, and sealing performance. The main elements of valve trim include:

Stem – Transfers actuator motion to the plug/disc

Seat – Provides sealing surface for shutoff

Disc or Plug – Controls flow by adjusting position

Back Rings – Supports and aligns moving parts

Guide Bushings – Maintains proper component alignment

Packaging (Seals) – Prevents leakage around the stem

While the valve body and bonnet also contact the process fluid, they are not classified as trim because they are permanent structural components rather than serviceable parts.

The design and material selection of valve trim significantly impact a control valve's performance, durability, and maintenance requirements. Engineers must carefully consider these components when selecting valves for specific applications involving different pressures, temperatures, and fluid characteristics. Proper trim selection ensures optimal control, longevity, and cost-effective operation of fluid systems.

Control valves feature two primary trim designs, each offering unique operational advantages:

Utilize a solid plug design

Generate full differential pressure force

Require larger actuators

Offer precise flow control

Ideal for low-pressure applications

Incorporate pressure-equalizing features

Minimize net force on the plug

Enable smaller actuators

Handle high-pressure systems efficiently

Reduce seat wear in demanding conditions

The selection between these designs depends on specific application requirements, including:

System pressure differentials

Available actuator force

Required control precision

Maintenance considerations

Unbalanced designs excel where precise control is paramount, while balanced configurations prove superior in high-pressure scenarios. Understanding these fundamental differences ensures optimal valve selection for process efficiency and longevity. Each design presents distinct advantages that directly impact performance, operational costs, and system reliability.

In an unbalanced trim design, the plug (or disc) does not have pressure-equalizing features. As a result, the full differential pressure (ΔP) across the valve acts on the plug’s effective area, generating an unbalanced force (F = P × A).

This force must be counteracted by the actuator, meaning larger actuators are often required for high-pressure applications.

• Single-seated globe valves (most common)

• Some double-seated valves (though they partially balance forces)

1. Improved Control & Stability

   • Unbalanced valves offer better precision in flow regulation, especially in applications requiring fine adjustments.

   • They respond more sensitively to small changes in flow or pressure.

2. Simpler Construction

   • Fewer moving parts mean easier maintenance and lower risk of failure.

   • Reduced complexity leads to higher reliability and lower downtime.

3. Lower Cost

   • Unbalanced trim valves are generally less expensive than balanced trim valves.

   • Ideal for budget-sensitive applications where extreme pressure conditions are not a concern.

4. Reduced Cavitation Risk

   • The design helps mitigate cavitation (formation and collapse of vapor bubbles), which can damage valves and downstream equipment.

• Higher Actuator Force Requirement

  • The actuator must overcome the full fluid force, necessitating larger, more powerful actuators in high-pressure systems.

• Limited Suitability for High-Pressure Applications

  • Excessive pressure differentials can make operation difficult.

A balanced trim design incorporates pressure-equalizing features, such as holes drilled through the plug, allowing fluid pressure to act on both sides. This minimizes the net force (unbalanced force) on the plug, reducing the actuator effort required.

Cage-guided control valves

Balanced-plug globe valves

Some rotary control valves

1. Lower Actuator Force Requirement

   • The balanced design reduces the net force, allowing smaller, more cost-effective actuators.

   • Ideal for high-pressure applications where unbalanced valves would require oversized actuators.

2. Better for High-Pressure Services

   • Handles large pressure drops more efficiently.

   • Reduces seat wear and extends valve life.

3. Reduced Vibration & Noise

   • The balanced pressure distribution minimizes flutter and vibration, enhancing stability.

• More Complex Design

  • Additional components (e.g., balance holes, seals) increase maintenance complexity.

• Higher Cost

  • More intricate manufacturing leads to higher initial costs.

• Potential for Leakage

  • Balance holes can introduce minor leakage paths, requiring tight tolerances.

Choosing the right trim material is crucial for longevity and performance. Factors to consider include:

• Chemical composition of the process fluid determines material compatibility.

• Common corrosion-resistant materials:

  • Stainless steel (SS316, SS304)

  • Hastelloy (for highly corrosive fluids)

  • Titanium (for chlorides and acids)

• Erosion occurs when abrasive particles in high-velocity fluids wear down the trim.

• Harder materials (e.g., stellite, tungsten carbide) are preferred for slurry or high-velocity applications.

The choice between unbalanced and balanced trim depends on:

Process pressure conditions (high ΔP favors balanced trim)

Actuator sizing constraints

Precision requirements (unbalanced offers finer control)

Budget considerations

For corrosive or erosive services, material selection is equally critical to ensure long-term reliability.

By understanding these differences, engineers can select the optimal control valve trim for their specific application, ensuring efficient, durable, and cost-effective performance.

Final Word: Whether opting for unbalanced trim for precision or balanced trim for high-pressure stability, the right choice enhances system efficiency and reduces operational costs. Always evaluate pressure conditions, fluid characteristics, and maintenance needs before making a decision.
