In the rapidly evolving world of process automation and industrial fluid management, precision, reliability, and control are the key differentiators in achieving optimal system performance. One such crucial component that ensures consistent process regulation is the Pneumatic Single-Seated Control Valve. Engineered for high precision and low leakage, this valve is an essential asset in applications that demand stringent flow regulation and enhanced reliability under a range of operating conditions.
This article provides a comprehensive overview of pneumatic single-seated control valves, their structural advantages, core functionalities, industry applications, and key performance attributes. Whether you are an engineer, plant manager, or procurement professional, understanding the design and capability of this valve type is critical to selecting the right control solution for your systems.

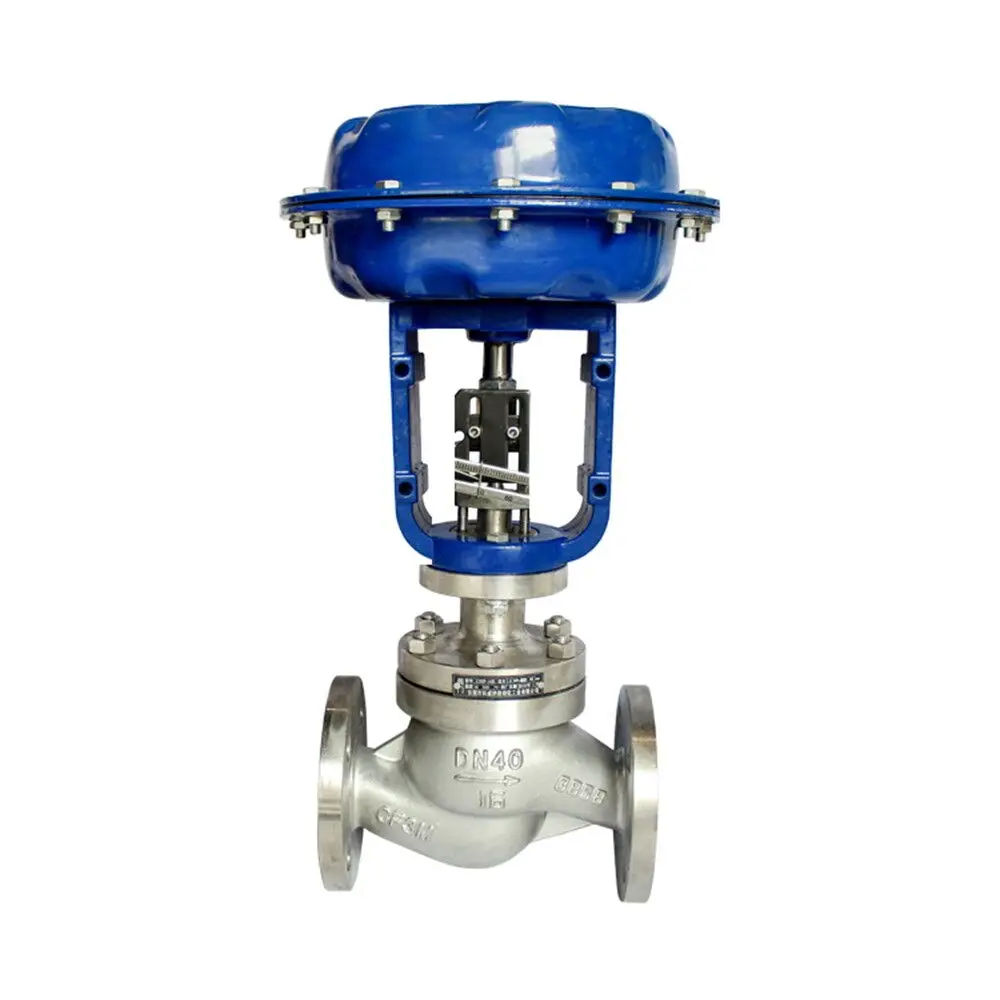

A single-seated control valve is a linear motion valve designed to regulate fluid flow by varying the position of a single plug relative to a single seat. Unlike double-seated valves, where two plugs and two seats are involved, the single-seat design offers enhanced shutoff performance and control accuracy, making it ideal for sensitive and critical applications.
This type of valve excels in minimizing leakage due to its streamlined internal architecture and fewer leak paths. With a top-guided stem design, the valve core is stabilized during operation, allowing smooth and accurate modulation of flow. These valves are typically used in scenarios where a high rangeability, tight shut-off, and quick response to control signals are required.
The valve body generally features a compact profile and a precision-machined internal flow path that minimizes pressure loss and reduces fluid turbulence. The result is improved flow capacity, enhanced efficiency, and precise control over variables such as pressure, temperature, and flow rate.
The pneumatic actuator attached to the single-seated valve uses compressed air to position the valve plug in response to a control signal. This method of actuation provides quick response times, smooth operation, and high reliability—making pneumatic single-seated control valves a staple in process industries worldwide.
Some of the defining advantages include:
High Flow Accuracy: Complies with IEC 534-2-1976 standards for accurate flow characteristics.
Tight Shut-Off: Meets ANSI B16.104 standards for minimal leakage.
Broad Operating Range: Performs reliably in high-temperature, low-temperature, and low differential pressure environments.
Versatility in Media: Compatible with various fluid types, including gases, steam, corrosive liquids, and slurries.
Compact and Lightweight Design: Reduced footprint and ease of maintenance due to fewer components.
The control valve operates by using a pneumatic diaphragm actuator connected to a positioner that receives a control signal—typically 4–20 mA or a pneumatic signal from the control system. When a control signal is received, the actuator moves the stem, which in turn adjusts the position of the valve plug relative to the seat.
This linear movement modulates the flow through the valve based on the process requirements. The S-shaped flow channel inside the valve body minimizes resistance and pressure drop, resulting in energy-efficient operation and reduced noise.
The upper-guided structure ensures that the stem and plug are precisely aligned throughout the stroke, enhancing durability and response time while mitigating wear.
Pneumatic single-seated control valves are engineered to serve a wide variety of industries, owing to their reliable operation and accurate flow control capabilities. Here are the sectors where these valves prove invaluable:
In upstream, midstream, and downstream operations, pneumatic control valves are used to regulate the flow of hydrocarbons, gas injection, and vapor recovery systems. The single-seated design ensures minimal leakage and precise modulation in high-pressure environments.
Precision and corrosion resistance are vital in chemical plants. Pneumatic single-seat valves are well-suited for managing aggressive chemicals, acids, and other corrosive fluids while ensuring accurate control over process variables.
Control valves play a key role in steam flow regulation, feedwater management, and boiler control. The robust design of pneumatic single-seated valves makes them ideal for high-temperature steam and cooling water applications.
In applications requiring sterile and sanitary processing, these valves help maintain flow accuracy and comply with strict hygiene standards. Pneumatic actuation offers clean, electric-free operation, reducing the risk of contamination.
The compact and hygienic design of pneumatic control valves makes them ideal for food-grade applications. Their smooth internal surfaces and tight shutoff capabilities help maintain cleanliness and prevent product loss.
The upper-guided design ensures that the valve stem and plug remain stable throughout operation. This design minimizes wear and enhances alignment, resulting in longer service life and improved valve performance.
Thanks to the S-shaped flow channel, the valve body offers minimal resistance to fluid flow, increasing the rated flow coefficient (Cv) by approximately 30%. This design also contributes to quieter operation and reduced vibration.
The actuator is constructed with a multi-spring diaphragm design, allowing for a smaller installation footprint. Compared to traditional designs, this actuator reduces overall valve height and weight by up to 30%, simplifying installation and maintenance.
Metal-to-Metal Seat: Meets ANSI Class IV leakage standards, ideal for moderate shut-off applications.
Soft Seat Option: Achieves ANSI Class VI tight shutoff, suitable for applications demanding zero leakage.
With an inherent turndown ratio of 50:1, the valve offers an expansive adjustment range, making it adaptable to fluctuating process conditions.
In highly sensitive applications, a bellows seal can be employed to ensure zero stem leakage. This is critical in environments where fugitive emissions or fluid loss must be completely avoided.
For processes involving fluids that are prone to crystallization or solidification, the valve can be equipped with a heating or cooling jacket to maintain the desired media state and prevent blockages.
Pneumatic single-seated control valves are available in a range of body and trim materials to suit different media and environmental conditions:
Body Materials: WCB, CF8, CF8M, Alloy 20, Hastelloy, Monel, and others.
Trim Options: Hardened stainless steel, Stellite-coated trims, soft-seated options for tight shutoff.
Sealing Materials: PTFE, EPDM, Viton, and metal seals depending on temperature and pressure requirements.
Actuators can be custom-configured with:
Positioners (Pneumatic or Electro-Pneumatic)
Limit Switches
Air Filter Regulators
Manual Handwheels
This level of customization ensures the valve integrates seamlessly into your existing automation system and matches the chemical and thermal compatibility of your process.
Due to its simplified internal structure, the pneumatic single-seated control valve is relatively easy to maintain. The fewer the parts, the lower the likelihood of failure, and the quicker the maintenance procedures.
Longer Service Life: Reduced wear from guided motion and proper alignment.
Lower Total Cost of Ownership: Efficient performance, low maintenance frequency, and energy-saving design.
Quick In-Line Maintenance: Many designs allow top-entry servicing without valve body removal.
The pneumatic single-seated control valve represents the pinnacle of precision engineering in industrial flow control. Its combination of a compact, top-guided design, high accuracy, wide rangeability, and industry-compliant leak-proof performance makes it a versatile and reliable solution across a broad spectrum of applications.
Whether you operate in the oil and gas sector, chemical processing, pharmaceuticals, or power generation, this valve provides the precise modulation and robust durability required to keep your process running smoothly and efficiently.
Investing in a high-quality pneumatic single-seated control valve means investing in long-term operational success, reduced downtime, and improved product consistency.
