In modern industrial systems, the smooth and precise control of gases and air is critical for countless applications — from simple air tools to highly complex automated manufacturing lines. At the heart of this controlled flow lies a deceptively simple yet powerful component: the pneumatic control valve.
Also known as directional control valves, pneumatic control valves serve as the primary traffic directors for compressed air and other inert gases in a pneumatic system. They play an indispensable role in modulating, blocking, switching, and directing airflow to where it’s needed — ensuring that actuators, cylinders, and other connected devices operate safely and efficiently.
In this in-depth article, we’ll explore what pneumatic control valves are, how they function, their key components, and why industries worldwide continue to rely on them as robust, cost-effective solutions.

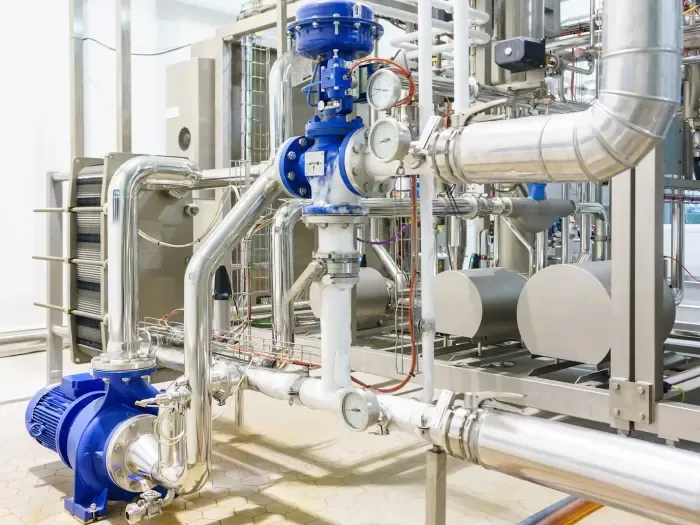

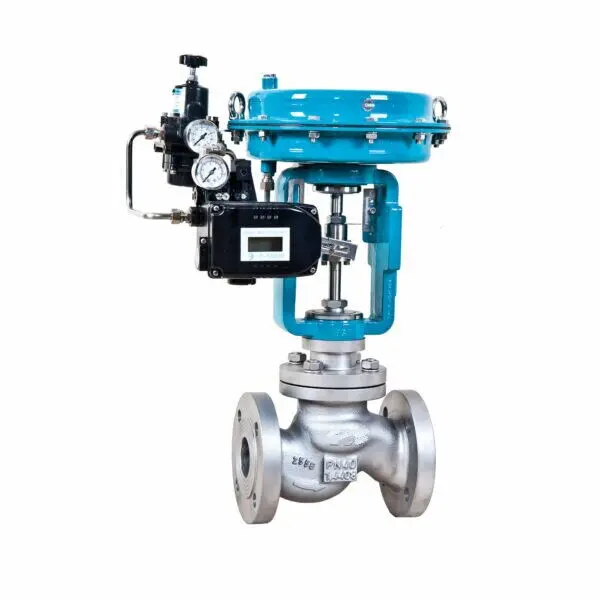

A pneumatic control valve is essentially a mechanical device designed to manage the flow and direction of compressed air within a system. By manipulating the air supply, these valves can activate or deactivate various mechanical operations, from opening and closing a door on an automated assembly line to controlling the speed and position of an industrial robot arm.
Pneumatic valves are typically categorized based on several criteria:
Number of Ports: Common configurations include 2/2 (two ports, two positions), 3/2, 5/2, and 5/3 valves.
Type of Actuation: Valves may be manually operated (e.g., by a lever), mechanically actuated (e.g., by cams or rollers), solenoid-operated (electromagnetic), or pilot-operated (using another air signal).
Default State: Valves can be normally open (NO) or normally closed (NC) when not actuated.
Flow Paths and Positions: The number of flow paths or positions determines how the valve switches and directs air.
Each type of valve serves specific purposes, ensuring flexibility across a wide range of pneumatic applications.
The operating principle behind a pneumatic control valve is straightforward but clever. The valve uses internal passages and spools or poppets that shift position to open or close specific flow paths.
Let’s break this down using the example of a 3/2 normally closed valve:
Compressed air enters the valve through an inlet port (commonly port 1).
In its default state, the internal spool blocks the passage, preventing air from flowing through.
When the valve receives a control signal — pneumatic, electric, or mechanical — the spool shifts, allowing air to pass through port 2 and into the connected actuator.
The actuator (for example, a spring-return cylinder) then performs its work — moving a load, lifting a part, or rotating an element.
Once the signal stops, the spring inside the valve returns the spool to its original position, blocking the air supply and venting any remaining air through an exhaust port (port 3).
This same principle applies to other configurations like the 5/2 valve, which adds an extra outlet port and enables control of double-acting cylinders — allowing them to extend and retract in a continuous cycle by switching airflow back and forth.
A pneumatic control valve is more than just a simple switch. Its performance and reliability come from its essential components, each serving a specific function:
The actuator is the mechanism that receives the signal and moves the internal parts of the valve. In many valves, this involves a flexible diaphragm or piston that reacts to air pressure. For solenoid valves, an electromagnetic coil generates motion.
The valve body houses all working parts and defines the flow paths through the system. It contains the inlet, outlet, and exhaust ports, plus internal chambers, seals, and the movable spool or poppet. The design and materials of the valve body must withstand the system’s pressure, flow rates, and operating environment.
When precise control is needed — especially for modulating valves — a positioner comes into play. The positioner receives commands from a controller and adjusts the air supply to the actuator. This ensures the valve stem moves to the exact position required to achieve the desired flow rate.
The controller acts as the brain of the system. It continuously monitors process variables like pressure, temperature, and flow rate. Based on these readings, it sends commands to the positioner to adjust the valve position, ensuring stable and safe operation within set parameters.
Industrial applications often use various types of pneumatic control valves, each chosen for its performance characteristics:
2/2 Valves: Simple on-off function, used for straightforward open/close operations.
3/2 Valves: Widely used for single-acting cylinders, providing a vent path.
5/2 and 5/3 Valves: Ideal for double-acting cylinders and reversible operations.
Proportional Control Valves: Allow for variable, fine-tuned control over airflow, crucial in applications requiring gradual changes rather than abrupt on/off switching.
Why are pneumatic control valves so widely used in industries like manufacturing, food processing, automotive, and packaging? The benefits are compelling:
Reliability: Fewer moving parts mean less wear and tear, resulting in long service life and minimal downtime.
Safety: Pneumatic systems are intrinsically safe in hazardous environments. There’s no risk of sparks or electric shocks, making them ideal for explosive or flammable settings.
Simplicity: Installation and operation are generally straightforward. Adjustments and repairs can often be done quickly without specialized tools.
Low Maintenance: Unlike electric motors, pneumatic systems don’t require complex wiring or constant lubrication. They remain functional even in dusty, dirty, or wet environments.
Cost-Effective: Compressed air is readily available in most industrial plants. Combined with the valves’ durability, this makes for a low total cost of ownership.
Flexibility: From controlling tiny air streams in delicate processes to managing high-flow industrial operations, pneumatic control valves are scalable to a vast range of tasks.
In recent years, some industries have turned to electric actuators and motorized valves for their precise control and programmability. However, pneumatic control valves continue to outperform electric options in many situations.
Tend to be larger and heavier, requiring more installation space.
Need a continuous and reliable electrical supply, which isn’t always feasible in remote or unstable power environments.
Often require more regular and complex maintenance, as they include more moving parts and electronic circuits.
Operate independently of external power grids — all they need is a source of compressed air.
Are lightweight and compact.
Deliver fast, repeatable action with minimal wear.
For applications that demand quick response, robustness, and fail-safe operation in challenging environments, pneumatic valves remain the trusted solution.
Pneumatic control valves are everywhere — sometimes hidden in plain sight. You’ll find them in:
Automotive Manufacturing: Controlling robotic arms, paint booths, and assembly line tools.
Food and Beverage: Automating filling, packaging, and bottling processes in hygienic environments.
Pharmaceutical Production: Ensuring sterile, precise operation in production lines.
Water Treatment: Operating gates, filters, and dosing systems.
Material Handling: Powering conveyor belts, hoists, and pick-and-place units.
HVAC Systems: Regulating air dampers and flow in large buildings.
The push toward Industry 4.0 and smart manufacturing is also influencing pneumatic control valves. Modern systems now incorporate advanced positioners and controllers with digital communication protocols, enabling real-time data collection, remote monitoring, and predictive maintenance.
This evolution means that pneumatic systems are not only rugged and reliable but also smarter than ever, providing operators with actionable insights to optimize performance and reduce energy waste.
Pneumatic control valves are a cornerstone of industrial automation, providing efficient, safe, and reliable control of air and gas flows in countless processes. Their simple yet ingenious design, coupled with low maintenance and high adaptability, makes them indispensable in a world that demands maximum productivity and uptime.
As industries evolve and seek more energy-efficient, sustainable solutions, the humble pneumatic control valve continues to prove its worth — standing as a testament to the enduring power of well-engineered simplicity.
