In today’s increasingly automated industrial landscape, the demand for precise, efficient, and flexible fluid control solutions has never been higher. From large-scale water treatment plants to complex manufacturing lines, industries rely on advanced valve systems to regulate the flow of liquids and gases with minimal human intervention. Among these solutions, pneumatic three-way ball control valves stand out as critical components that bring unparalleled versatility and performance to fluid management systems.
These valves are engineered to simplify flow diversion, mixing, and shut-off processes within a single, compact unit. By integrating pneumatic actuation with a three-port configuration, they offer users the ability to handle complex flow patterns with speed, accuracy, and minimal leakage risk. Whether used in chemical processing, HVAC systems, water treatment facilities, or hydraulic and pneumatic circuits, pneumatic 3-way ball valves ensure operations run smoothly, safely, and efficiently.
This article explores how pneumatic three-way ball control valves work, the technology behind their reliable performance, the various flow configurations they offer, and the value they bring to industrial applications. We’ll also highlight why partnering with experienced valve manufacturers and suppliers is key to achieving maximum system efficiency and operational safety.

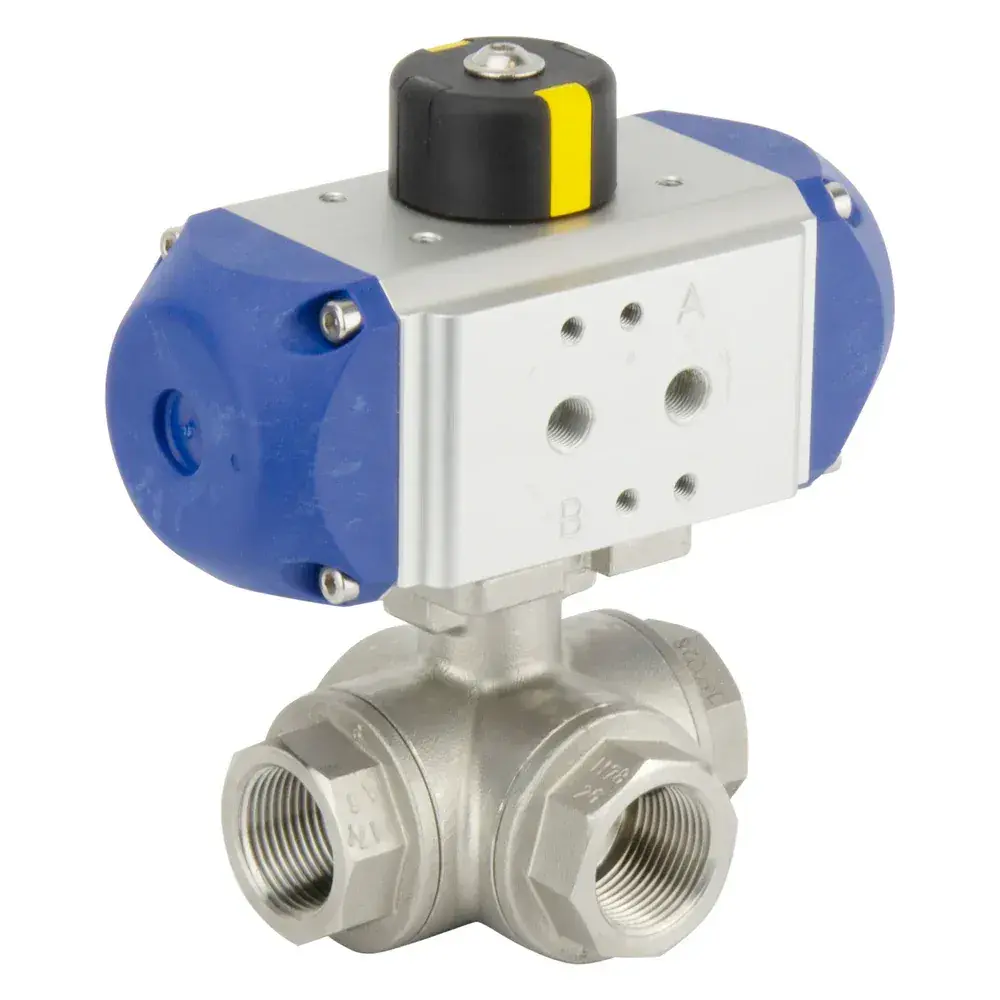

At its core, a three-way ball valve combines the simplicity of a conventional ball valve with the added capability to direct flow between multiple channels. The integration of a pneumatic actuator further automates this process, enabling rapid and remote-controlled switching that minimizes manual labor and human error.
Key Features:
Three-Port Configuration: Allows for diverting, mixing, or completely shutting off flow from different sources.
Pneumatic Actuation: Uses compressed air to drive the valve’s motion, ensuring quick response times.
Robust Sealing: The ball mechanism delivers excellent sealing performance to prevent leaks.
Material Durability: Often manufactured from stainless steel, carbon steel, or specialized alloys to withstand corrosive or high-pressure environments.
This combination of features makes pneumatic three-way ball control valves the go-to choice for engineers seeking flexible, automated, and reliable fluid control.
While the design might look straightforward from the outside, the operation of a pneumatic three-way ball valve is a precise interplay between the actuator, the valve stem, and the ball component.
The process begins when the pneumatic actuator receives an input signal from a controller, sensor, or manual switch. This signal directs the actuator to perform a specific action—whether it’s to open, close, or redirect flow.
The actuator converts the pneumatic energy (supplied by compressed air) into rotational motion. This motion turns the valve stem, which is connected to the ball inside the valve body.
As the stem rotates, the ball—which has a bore drilled through it—aligns with different ports, creating pathways for the fluid to travel. Depending on the ball’s position, the valve can:
Allow full flow through one pathway.
Divert flow from one inlet to two outlets.
Mix two inlet streams into one outlet.
Shut off flow entirely.
The internal ball design can be customized with either an L-port or T-port passage. This flexibility allows the valve to perform different functions based on the flow requirements of the system.
Because the actuator is pneumatic, it offers several benefits: fast cycling times, fail-safe operation in the event of power loss (with spring-return actuators), and minimal maintenance compared to electric or hydraulic actuators.
One of the defining characteristics of three-way ball valves is their internal flow path design. This is where the L-port and T-port configurations come into play.
An L-port valve has a passage shaped like the letter “L”. It’s designed for diverting flow from a common inlet to one of two outlets—or vice versa. This makes L-port valves ideal for applications requiring simple switching between two flow paths without mixing.
A T-port valve has a passage shaped like the letter “T”. This design allows for more complex flow options, such as mixing two inlet streams into a single outlet or distributing flow from one inlet into two outlets simultaneously. T-port valves are favored when more flexible flow control is needed, such as blending or bypass applications.
Choosing between an L-port and T-port configuration depends on the specific process requirements and the desired flow pattern.
The appeal of these valves extends far beyond their basic functionality. Let’s look at some of the top benefits they deliver in demanding industrial environments:
By automating the switching process, these valves allow for exact fluid routing, minimizing waste and ensuring optimal system performance.
Pneumatic actuators respond quickly to signals, which is crucial in systems requiring rapid changes to flow direction or shut-off for safety.
Automating the valve operation reduces the need for manual intervention in potentially hazardous environments. In addition, the tight sealing performance prevents leaks, which is vital when handling flammable, toxic, or expensive media.
With the ability to divert, mix, or isolate flow paths, operators gain greater control over complex process streams.
High-quality materials and robust construction enable these valves to withstand high pressures, extreme temperatures, and corrosive fluids—resulting in long service life and minimal downtime.
They work seamlessly with other automated system components, including sensors, controllers, and distributed control systems (DCS), making them ideal for modern industrial plants.
Pneumatic three-way ball control valves are used in countless industries that demand reliable, flexible fluid control. Here are some notable examples:
In municipal and industrial water treatment, these valves regulate flow between filtration units, chemical dosing systems, and distribution networks. Their precision ensures optimal water quality and operational efficiency.
As integral components in larger pneumatic circuits, these valves control the flow of compressed air or inert gases that actuate other equipment—such as cylinders, conveyors, or tools—making them vital in automated manufacturing lines.
In hydraulic equipment, these valves manage the flow of hydraulic fluid to direct motion in cylinders, motors, and actuators. The precise switching capability helps maintain consistent pressure and flow rates for smooth machine operation.
Many chemical plants use three-way ball valves for batch mixing, flow diversion, and emergency shutdown applications. Their tight sealing performance is critical for handling corrosive or hazardous chemicals safely.
In heating, ventilation, and air conditioning systems, these valves can control the flow of chilled or heated water, switching between different circuits to maintain temperature balance and energy efficiency.
Three-way ball valves are used to divert, mix, or isolate product flows during processing, cleaning, or CIP (clean-in-place) operations, ensuring product quality and compliance with hygiene standards.
To maximize performance, selecting the right valve for the job is essential. Here are key factors to evaluate:
Determine whether you need an L-port or T-port configuration based on your application’s flow pattern—diversion, mixing, or isolation.
Choose materials that can handle the fluid’s temperature, pressure, and chemical properties. Common options include stainless steel for corrosion resistance and carbon steel for general industrial use.
Decide whether you need a double-acting actuator (air to open and close) or a spring-return actuator (failsafe operation).
Ensure the valve meets your system’s flow capacity and pressure demands. Undersized or oversized valves can affect performance and energy efficiency.
Look for valves that comply with industry standards and certifications relevant to your sector, especially for safety-critical or regulated processes.
Quality, expertise, and reliable support make a huge difference when it comes to valve performance and system uptime. Established manufacturers and suppliers bring extensive knowledge of valve design, material selection, and customization options to meet your specific needs.
They also provide technical support, maintenance guidance, and after-sales service—ensuring your valves perform optimally over their lifespan. Working with reputable partners reduces the risk of costly failures, unexpected downtime, and safety hazards.
As industries evolve toward greater digitalization and sustainability, pneumatic three-way ball control valves continue to play a vital role. Advances in smart actuators, IoT-enabled sensors, and predictive maintenance tools are pushing valve technology forward. Remote monitoring and diagnostics will enable operators to detect wear, leaks, or performance issues before they lead to failures—reducing unplanned downtime and improving overall efficiency.
Moreover, innovations in valve design and materials will help industries handle more challenging process conditions, such as higher pressures, more aggressive chemicals, and extreme temperatures. This positions pneumatic three-way ball valves as indispensable building blocks for next-generation automated plants.
In an era where efficiency, safety, and sustainability are top priorities, pneumatic three-way ball control valves stand out as reliable, versatile solutions for precise fluid management. From water treatment and chemical processing to manufacturing and energy systems, these valves help operators achieve seamless, automated control of complex flow patterns—enhancing productivity and reducing risks.
Investing in high-quality pneumatic three-way ball valves from trusted manufacturers ensures long-term reliability, compliance with industry standards, and the flexibility to adapt as process requirements change. As automation and smart technologies continue to advance, these valves will remain an integral part of modern industrial systems, driving performance, safety, and innovation well into the future.
