How to Choose the Right Control Valves for Your Steam Systems?

In steam systems, choosing the correct control valve is crucial for efficient, safe, and reliable operation. Whether you’re managing pressure, temperature, or flow in a process line, the right control valve will not only optimize performance but also reduce energy consumption and minimize maintenance. However, selecting the appropriate valve for your specific application can be daunting given the wide variety of options available—especially when considering actuation methods such as pneumatic, electric, and self-acting.

This comprehensive guide walks you through the key factors to consider when selecting control valves for steam applications. From understanding flow rate and pressure compatibility to choosing the correct actuation method, we’ll cover everything you need to make an informed decision for your steam system.

Choosing a steam control valve requires more than just picking a model off the shelf. You must analyze your system’s requirements in detail and match them with the valve’s specifications to ensure optimal performance. The following factors are critical to the selection process:

One of the primary considerations when selecting a control valve is its ability to handle the required flow rate and pressure range of your steam system. Every valve has operational limits, and mismatches can cause system inefficiencies or even failures.

Ensure the valve can handle both the minimum and maximum flow rates expected during operation. Oversized valves may struggle to control flow precisely at low demand, while undersized valves can restrict flow and increase system pressure.

The valve must be rated to withstand the maximum system pressure. Industrial steam systems can operate at high pressures, and exceeding the valve's pressure capacity can result in dangerous ruptures or premature failure.

Steam systems experience significant temperature fluctuations. Choose a valve that can tolerate thermal expansion and contraction without leaking or deforming.

Best Option: Globe valves are particularly well-suited for regulating flow in steam systems, as they provide excellent throttling capabilities and can handle both low and high pressures effectively.

Tip: Always consult the valve manufacturer’s pressure-temperature rating charts and cross-reference these with your system’s operating conditions.

Steam is a highly demanding medium, and the valve’s material plays a pivotal role in its longevity and performance.

Steam can cause corrosion, especially in systems that cycle frequently or contain impurities. Materials like stainless steel, bronze, and specialty alloys offer better resistance than standard carbon steel.

High-velocity steam, especially if it contains condensate or debris, can erode valve internals over time. Using hard-faced trims or erosion-resistant materials can extend service life.

For tight shutoff applications, choose valves with soft seats made from high-temperature elastomers or engineered plastics, provided they can tolerate your temperature range.

Conclusion: Investing in valves made from durable, corrosion-resistant materials ensures fewer breakdowns, minimizes leaks, and increases overall system reliability.

The method by which a valve opens and closes—its actuation—can significantly impact how your steam system is controlled and automated.

Power Source: Uses compressed air to move a diaphragm or piston that operates the valve stem.

Control Components: Typically part of a control loop including a controller, sensors, and positioners (electro-pneumatic or pneumatic-pneumatic).

Advantages: Fast response times and fail-safe options (spring return). Well-suited for hazardous or high-temperature environments.

Use Case: Ideal for large-scale industrial applications where precision and reliability are essential.

Power Source: Uses electricity to drive the valve via a motorized actuator.

Control Simplicity: Combines controller and actuator in one unit—just wire the power and control signal.

Advantages: Cleaner operation (no air lines), high positioning accuracy, and easy integration with digital control systems.

Use Case: Preferred in environments where air supply is limited or when automation is tied to smart building systems.

Power Source: Operate automatically based on process conditions such as pressure or temperature.

Types: Include self-operated pressure regulators, temperature controllers, and differential pressure valves.

Advantages: No need for external power, low maintenance, easy to install.

Use Case: Small- to medium-scale systems, or applications with steady-state conditions.

Summary: The best actuation method depends on your system’s complexity, level of automation, and available power sources.

System downtime is costly. Choosing a valve that is easy to inspect, repair, and replace reduces operational disruptions.

Globe valves tend to be the most maintenance-friendly due to their top-entry design and straightforward construction.

Spare Parts Availability: Check if the manufacturer offers easily accessible spares and support.

Modular Design: Valves with modular components allow for quicker replacements and upgrades.

Tip: Consider lifecycle costs, not just the initial purchase price. A slightly more expensive valve that is easier to maintain can save time and money over the long run.

Here’s an overview of the primary types of control valves used in steam systems, based on their operation and actuation:

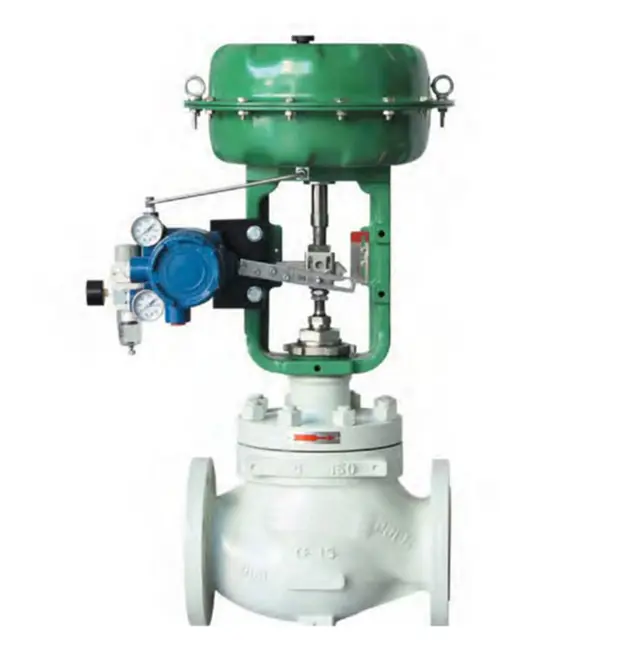

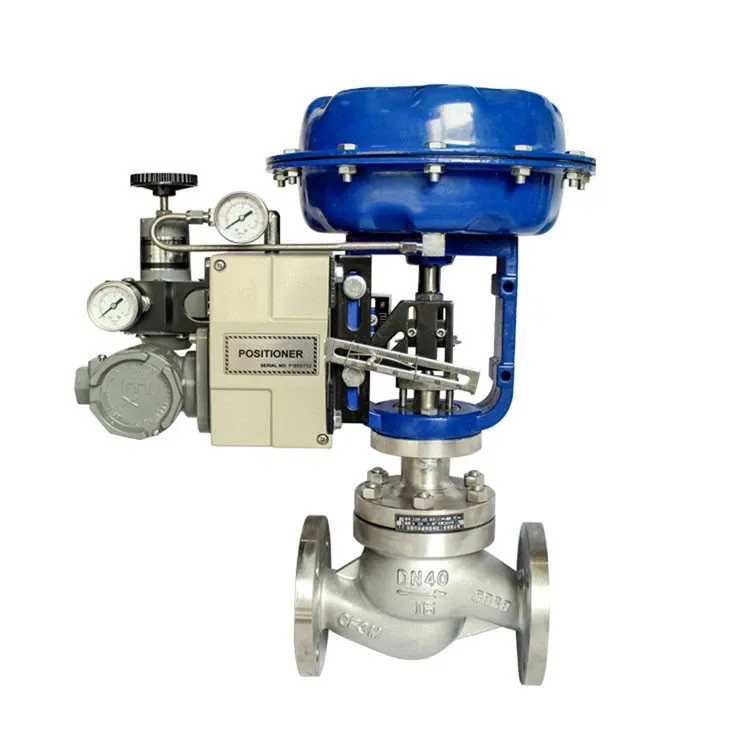

Pneumatic valves use compressed air to modulate valve position. These are highly prevalent in process industries due to their speed and reliability.

How They Work: A diaphragm or piston converts air pressure into mechanical movement.

Control System Components: May include transmitters, controllers, converters, and positioners for accurate modulation.

Pros: Fast response time, fail-safe capabilities, suitable for hazardous environments.

Cons: Requires an air supply system and regular maintenance of pneumatic lines.

Electric valves are powered by motors and often include internal feedback systems for precise control.

How They Work: An electric motor adjusts the valve stem position based on a control signal.

Integration: Easy to incorporate into PLC or building management systems (BMS).

Pros: Simple wiring, clean operation, excellent for precise applications.

Cons: Slower response compared to pneumatic; may not be ideal in explosive or wet environments unless specially rated.

These valves adjust automatically in response to system changes without external power.

Types:

Pressure regulators: Maintain downstream or upstream pressure.

Temperature regulators: Use thermal bulbs or sensors to adjust flow.

Differential pressure regulators: Balance pressure across system components.

Pros: Cost-effective, minimal installation effort, ideal for simple systems.

Cons: Less flexible in dynamic or rapidly changing environments.

Below is a quick guide to help you pair the right valve type with common steam system scenarios:

Selecting the right control valve for your steam system is a strategic decision that impacts performance, safety, and cost efficiency. To summarize:

Know your system: Define flow rates, pressures, and temperatures clearly.

Choose suitable materials: Consider corrosion, pressure, and thermal stress.

Select the right actuation: Match the control method to your process and infrastructure.

Plan for maintenance: Favor valves that are easy to access and service.

Whenever possible, consult with valve manufacturers or experienced engineers during the design or upgrade phase. They can help ensure that the valve you choose aligns with your system’s technical requirements and regulatory standards.

By carefully evaluating all the critical factors and understanding the role each type of control valve plays, you can ensure that your steam system runs smoothly, efficiently, and reliably for years to come.
