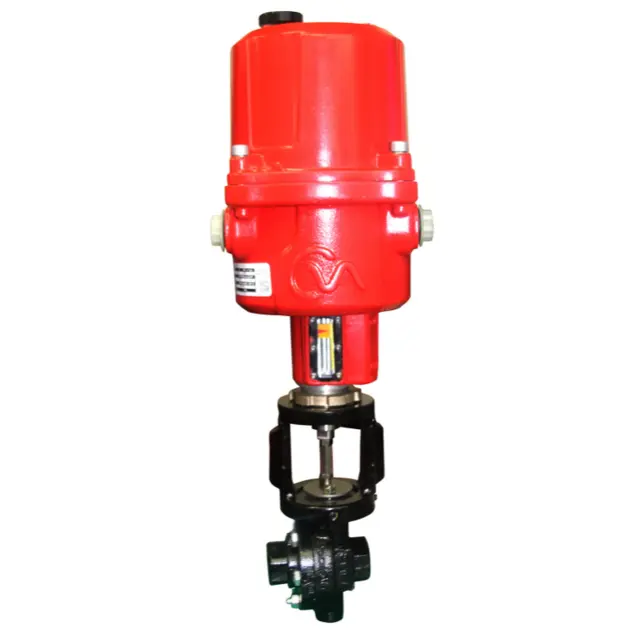

Electric On/Off Control Valve, Stainless Steel CF8M, 1/4-6 IN
Key Specifications / Features
Hits: 3
Introducing our motor-operated control valve, which seamlessly integrates a state-of-the-art electric linear actuator with our innovative sliding gate valve seat design. This combination delivers unparalleled accuracy, making it the perfect final control element for distributed process control systems. Engineered for precision and reliability, this valve ensures optimal performance in demanding industrial applications. Its advanced design allows for precise control and efficient operation, contributing to improved system accuracy and stability. Ideal for various industrial settings, this motor-operated control valve is a robust and reliable solution for your process control needs.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Electric Motor Operated Control Valve
Key Features: On/Off, Motorized Control, Electronic
Size Range: 1/4 Inch - 6 Inch, DN8-DN150
Body Material: Carbon Steel, Stainless Steel, Ductile Iron, Cast Iron, Bronze
Trim Materials:
SS 303 for DI, BZ or CS Valves
SS 316 for SS Body Valves
Yoke Material: Cast Iron
Seat Materials: SS304 T/Jorcote, SS 316 T/Jorcote
Stem Packing: Spring-loaded Teflon (500°F max/260°C)
Braided (above 500°F/260°C)*
*CML 250 required 1/2 Inch - 2 Inch
*CML 750 required 2 1/2 Inch - 6 Inch
Service: steam, water, air, oil, gas and chemicals
Shutoff: ANSI Class IV
Flow Characteristic: Linear, Equal Percentage
Cv (Kv): Up to 395 (up to 340)
Seat Material: Jorcote
Command Signals: Current or Voltage Command, On/off
End Connections:
Threaded (NPT, BSPT, BSPP – through 2 Inch sizes)
ANSI Flanges (150#, 300#)
DIN Flanges (PN10/16, PN25/40)
Temperature Limits:
CML 100/250/750: -4°F to +150°F (-20°C to +66°C)
Optional low temperature trim for CML motors: -40°F to +150°F (-40°C to +66°C) CF
Features & Benefits:
1. Shorter Stroke: Faster operation compared to globe or plug-style valves.
2. Enhanced Durability: Long packing and stem life, with stem packing four times deeper than stem travel.
3. Straight-Through Flow: Sliding gate seats reduce turbulence and ensure quiet operation.
4. Quick Response: Short stroke enables faster response and precise regulation.
5. Interchangeable Cv Values: Easy to switch for different flow requirements.
6. Tight Shutoff: Ensures reliable sealing and performance.

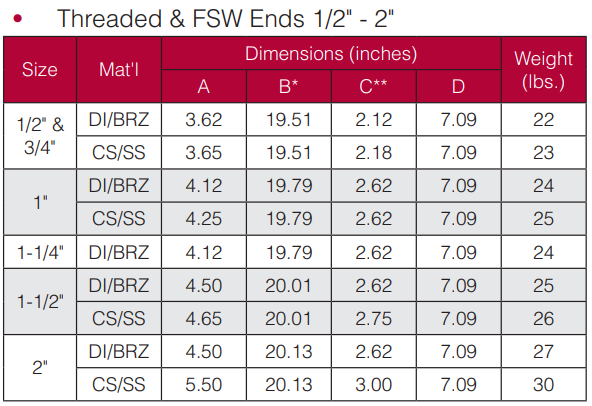

Dimensions:
Product Name: Electric Motor Operated Control Valve
Key Features: On/Off, Motorized Control, Electronic
Size Range: 1/4 Inch - 6 Inch, DN8-DN150
Body Material: Carbon Steel, Stainless Steel, Ductile Iron, Cast Iron, Bronze
Trim Materials:
SS 303 for DI, BZ or CS Valves
SS 316 for SS Body Valves
Yoke Material: Cast Iron
Seat Materials: SS304 T/Jorcote, SS 316 T/Jorcote
Stem Packing: Spring-loaded Teflon (500°F max/260°C)
Braided (above 500°F/260°C)*
*CML 250 required 1/2 Inch - 2 Inch
*CML 750 required 2 1/2 Inch - 6 Inch
Service: steam, water, air, oil, gas and chemicals
Shutoff: ANSI Class IV
Flow Characteristic: Linear, Equal Percentage
Cv (Kv): Up to 395 (up to 340)
Seat Material: Jorcote
Command Signals: Current or Voltage Command, On/off
End Connections:
Threaded (NPT, BSPT, BSPP – through 2 Inch sizes)
ANSI Flanges (150#, 300#)
DIN Flanges (PN10/16, PN25/40)
Temperature Limits:
CML 100/250/750: -4°F to +150°F (-20°C to +66°C)
Optional low temperature trim for CML motors: -40°F to +150°F (-40°C to +66°C) CF
Features & Benefits:
1. Shorter Stroke: Faster operation compared to globe or plug-style valves.
2. Enhanced Durability: Long packing and stem life, with stem packing four times deeper than stem travel.
3. Straight-Through Flow: Sliding gate seats reduce turbulence and ensure quiet operation.
4. Quick Response: Short stroke enables faster response and precise regulation.
5. Interchangeable Cv Values: Easy to switch for different flow requirements.
6. Tight Shutoff: Ensures reliable sealing and performance.
Dimensions:
