Butterfly valves are one of the most widely used flow control devices in modern piping systems. Their simple yet efficient design allows them to regulate, isolate, or throttle fluid flow with ease. At the heart of their operation lies a rotating disc, often referred to as the “butterfly,” which turns on a central shaft to open or close the passage. When the disc is parallel to the flow, the valve is open, and when it is perpendicular, the valve is closed.
Unlike ball valves that rely on a spherical closure element, butterfly valves use a thin circular plate, which makes them more compact and lighter in weight. This streamlined structure allows butterfly valves to deliver effective shutoff and quick operation while occupying minimal space within the pipeline. Their low torque requirement, cost efficiency, and fast actuation make them a preferred choice across industries ranging from water treatment and HVAC to oil and gas, marine, and chemical processing.
While butterfly valves can be used for throttling (flow regulation), they are primarily designed for on/off or flow isolation duties. Frequent throttling can cause accelerated wear on the valve disc and seat, reducing the sealing performance over time. Therefore, understanding the correct operation and actuation method is essential to maximize service life and reliability.
Butterfly valves are found in a wide range of industrial and municipal applications. Their versatility makes them suitable for handling liquids, gases, and even certain slurries. They are especially common in:
Water supply and distribution systems: Used in treatment plants, pumping stations, and pipelines to control or isolate flow.
Wastewater management: Ideal for non-corrosive fluids and large-diameter pipelines where lightweight operation is beneficial.
HVAC systems: Regulate chilled or hot water circulation efficiently.
Chemical and petrochemical industries: Handle corrosive fluids when constructed from materials such as stainless steel or lined with protective coatings.
Marine and shipbuilding: Compactness and reliability make them excellent for onboard fluid control.
Power generation and process industries: Control cooling water and fuel handling systems.
Key advantages of butterfly valves include:
Compact design: Requires less installation space compared to other valve types.
Lightweight construction: Reduces system weight and simplifies handling during installation.
Lower cost: Simple design and fewer components make manufacturing and maintenance economical.
Quick operation: A 90° turn of the actuator fully opens or closes the valve.
Versatile actuation: Compatible with manual, electric, pneumatic, or hydraulic actuation methods.
Reliable sealing: Especially with resilient or soft-seated designs for tight shutoff.
These advantages have made butterfly valves a mainstay in modern fluid control systems.
The operation of a butterfly valve largely depends on its actuation method — the mechanism that turns the valve disc between open and closed positions. Depending on system requirements, actuation can be manual, semi-automatic, or fully automatic. Selecting the correct actuation method is crucial for achieving optimal control, safety, and efficiency.
Let’s explore each method in detail.
Manual butterfly valves are the simplest and most common type, especially in low-cost, low-pressure, or infrequently operated systems. They are operated directly by hand using levers, cranks, or handwheels.
For small-diameter butterfly valves (typically up to DN200 or 8 inches), a lever handle is used. The lever provides direct mechanical control, allowing the operator to rotate the disc through a quarter-turn motion. The handle can often be locked in multiple positions to control flow partially if throttling is needed.
Lever-operated valves are ideal for applications such as HVAC systems, low-pressure water pipelines, or utility services where quick manual operation is sufficient.
For larger-diameter valves, manual operation using a handwheel is preferred. Since larger valves require more torque to turn, a worm gear or bevel gear mechanism is installed between the handwheel and the valve stem. This gear mechanism multiplies the torque applied by the operator, allowing easy operation without excessive effort.
The gearbox also ensures precise control and holds the valve in any intermediate position without slippage. Such configurations are common in water treatment plants, industrial processing, and municipal distribution systems.
In buried pipelines or installations without direct valve access, manual actuation is achieved using extension spindles or operating rods connected to the valve stem. An adapter cap and T-key allow operation from ground level. This approach is common in municipal water networks where valves are installed below the surface for protection.
Simple and cost-effective
Minimal maintenance
No external power required
Easy to operate and repair
Unsuitable for large or high-torque valves
Requires manual effort
Not ideal for remote or automated systems

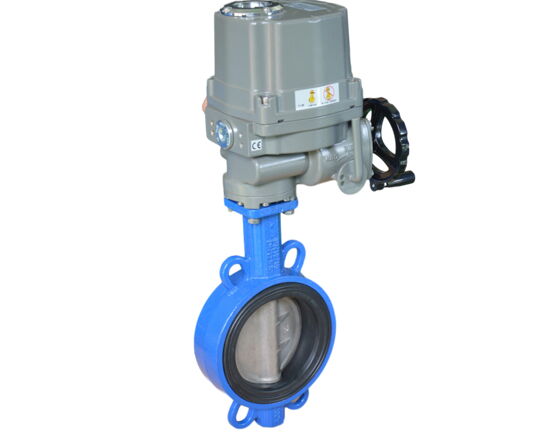

Electric actuation is one of the most precise and controllable methods for operating butterfly valves. An electric actuator converts electrical energy into mechanical torque to rotate the valve disc. These actuators can be on/off type or modulating type, depending on whether the valve is used for isolation or throttling.
The actuator receives a control signal — often a 4–20 mA analog signal or digital command — from a control system. Based on this input, the actuator motor turns gears that rotate the valve stem. Feedback sensors continuously monitor the valve position, providing accurate status updates to the control panel.
Electric actuation is commonly used where precise flow control, remote operation, or integration with automation systems is required. Typical examples include:
Water treatment plants with SCADA systems
Industrial automation setups
HVAC control loops
Offshore and marine environments
Electric actuators are available in various designs, including quarter-turn and multi-turn types, depending on the valve’s motion requirements. Many modern electric actuators also feature fail-safe functions such as battery backup or spring-return mechanisms that automatically move the valve to a safe position in case of power loss.
High precision and repeatability
Easy integration with automated control systems
Suitable for remote and hazardous locations
Low noise operation
Slower response compared to pneumatic or hydraulic systems
Dependent on electrical power supply
Higher upfront cost

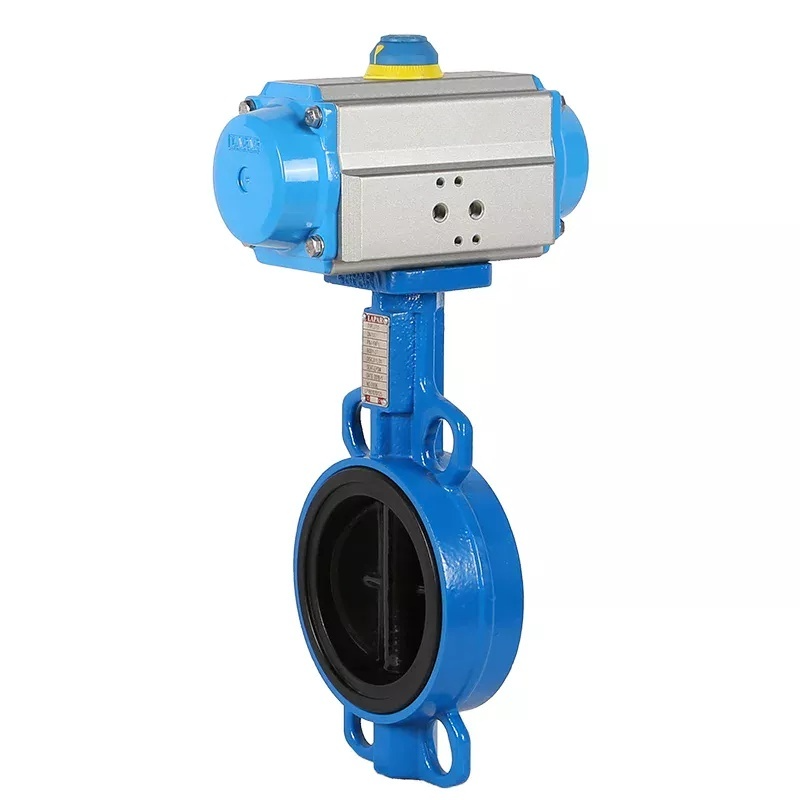

Pneumatic actuators use compressed air to drive the valve disc. They are highly favored in applications where fast operation and reliability are essential, such as in chemical, petrochemical, and process industries.
Single-acting (spring-return): Uses air pressure to move the valve in one direction, with a spring mechanism returning it to its original position when the air is released.
Double-acting: Uses air pressure for both opening and closing operations, providing faster response and more precise control.
When air pressure is applied to the actuator, it pushes a piston or vane that converts linear or rotary motion into a 90° rotation of the valve shaft. The speed of actuation can be controlled by adjusting the air supply pressure or using flow control valves.
Pneumatic actuators can be fitted with solenoid valves, limit switches, and positioners to achieve automated control. When paired with positioners, they can regulate flow accurately according to process demands.
Pneumatic actuation is common in:
Chemical processing plants
Food and beverage industries
Wastewater systems
Power generation plants
Fast and reliable operation
Explosion-proof and safe in flammable environments
High torque capability for moderate-sized valves
Easy maintenance and long lifespan
Requires continuous air supply
Compressed air systems add to operational costs
Noise from air exhaust may require silencers
Hydraulic actuators operate similarly to pneumatic ones but use pressurized hydraulic fluid (usually oil) instead of air. The incompressible nature of hydraulic fluid provides higher torque output, making this actuation method suitable for very large butterfly valves or high-pressure systems.
Hydraulic actuators use pistons or cylinders that move under fluid pressure to rotate the valve stem. The system may include a hydraulic power unit (HPU) to maintain constant pressure, along with control valves to direct the fluid flow.
Hydraulic actuation is commonly used in:
Offshore oil and gas platforms
Water dams and hydropower stations
Heavy industrial processes
Marine and ship ballast systems
Advantages of Hydraulic Actuation:
High torque for large valves
Smooth, precise operation
Suitable for underwater or high-pressure systems
Can be configured for fail-safe return
Requires hydraulic power source and maintenance
Higher installation cost
Potential for oil leaks
Choosing the ideal actuation method depends on several key factors, including:
Size and pressure class of the valve
Frequency of operation (manual vs. automated cycles)
Available power source (electricity, air, or hydraulic system)
Environmental conditions (temperature, humidity, explosion risk)
Control requirements (on/off or modulating)
Installation location (accessible or buried)
For small, low-pressure systems, manual operation remains a practical choice. For remote, automated, or process-critical systems, electric or pneumatic actuators provide superior control and reliability. In extremely large or high-pressure installations, hydraulic actuation is often the only feasible option.
Proper maintenance ensures the longevity and reliable performance of butterfly valves, regardless of actuation type.
Visual checks: Look for signs of corrosion, leaks, or deformation.
Seal and seat inspection: Examine rubber or soft seats for wear or hardening.
Stem and disc alignment: Ensure smooth rotation without binding or vibration.
Regular cleaning removes dirt, scale, or deposits that can hinder operation. For non-corrosive media, mild soap and water are sufficient. For chemical or seawater applications, ensure that the cleaning method is compatible with valve materials.
For valves exposed to high temperatures or corrosive environments, periodic lubrication of moving parts — including bearings and seals — reduces friction and prevents seizure. Always use manufacturer-recommended lubricants.
Electric actuators: Inspect electrical connections, limit switches, and sealing gaskets.
Pneumatic actuators: Check for air leaks, regulator pressure, and moisture in the air lines.
Hydraulic actuators: Monitor oil level, check for leaks, and maintain filter cleanliness.
If the valve is not frequently operated, cycle it periodically to prevent sticking and ensure functionality. Valves in long-term storage should be kept dry and clean to prevent corrosion.
Butterfly valves are indispensable components in fluid control systems, offering efficient operation, low weight, and versatility. Their actuation methods—manual, electric, pneumatic, and hydraulic—allow engineers to match the valve’s performance with specific application requirements, whether for a small HVAC loop or a massive industrial pipeline.
Selecting the right actuation method can significantly influence operational safety, energy efficiency, and maintenance costs. Regular inspection and proper upkeep further extend the valve’s service life, ensuring reliable performance across industries.
In essence, understanding butterfly valve actuation is key to optimizing flow control systems, balancing precision, economy, and durability in every application.
