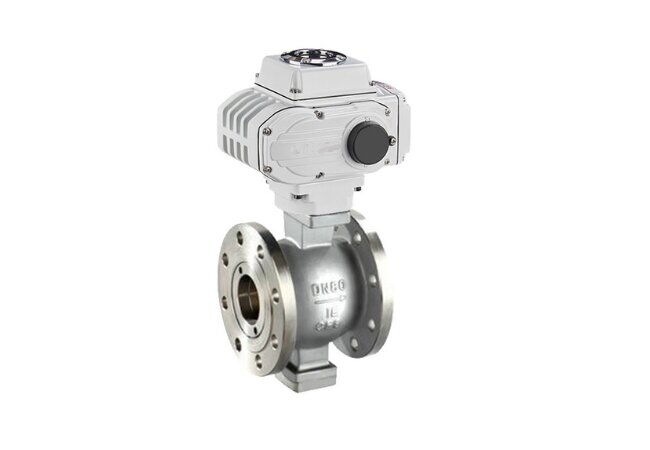

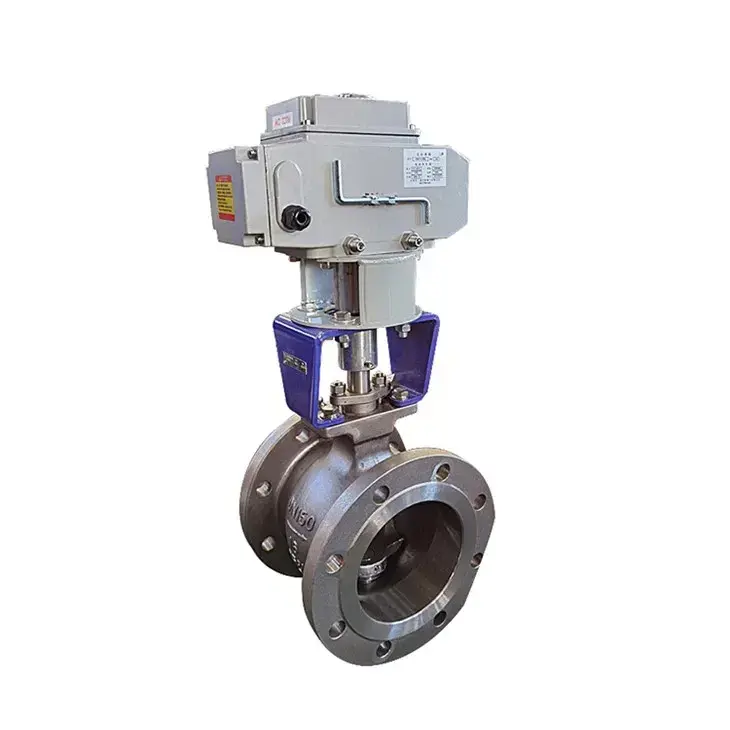

In today’s industrial landscape, precise control over fluid flow is crucial for optimizing processes, ensuring safety, and reducing operational costs. One valve type that has gained widespread attention for its superior modulation capabilities is the electric V-control ball valve. Distinguished by a V-shaped port within the ball, this valve combines the simplicity and durability of traditional ball valves with advanced flow control precision typically associated with globe valves. Driven by an electric actuator, these valves are increasingly recognized as a cost-effective and reliable solution for industries where accurate flow regulation is essential.
Electric V-control ball valves are engineered to offer a linear or equal-percentage flow characteristic, allowing operators to finely tune the flow rate across a wide range of applications. By integrating modern electronics, including digital control systems, predictive maintenance tools, and real-time monitoring, these valves not only enhance process efficiency but also support the growing trend toward smart, automated industrial systems.
This article explores the features, construction, applications, and benefits of electric V-control ball valves, providing an in-depth understanding of their role in modern industrial processes.
The defining feature of a V-port ball valve is its V-shaped opening in the ball, which differs significantly from standard ball valves with simple circular ports. This design allows for precise throttling of flow: as the valve opens or closes, the flow area changes gradually, providing either a linear or equal-percentage flow characteristic depending on the V-profile design.
Linear flow: Flow changes proportionally with the valve’s rotation, making it ideal for applications requiring consistent incremental changes.
Equal-percentage flow: Each incremental rotation results in a proportional percentage change in flow, offering superior control at low flow rates—a key advantage in chemical dosing, cooling circuits, and sensitive process systems.
The V-shaped port also improves rangeability, often exceeding 200:1, which means the valve can effectively control flow from very low to very high rates while maintaining repeatable performance. This makes V-port valves suitable for demanding applications in chemical processing, water treatment, HVAC systems, and energy industries.
Electric V-control ball valves achieve precise modulation through the integration of electric actuators, which can vary the valve position based on control signals from a process controller. The actuator is typically of the positioning type, capable of responding to continuous input signals rather than simple open/close commands.
Electric actuators for V-port ball valves are commonly designed to respond to 4-20 mA input signals from a control system. This allows the valve to achieve exact positioning and maintain a stable flow rate as process conditions change. Many modern electric actuators also include feedback mechanisms that report valve position back to the control system, enabling automated adjustment and remote monitoring.
While electric actuation is increasingly popular due to its precision and digital integration, pneumatic and hydraulic actuators remain widely used, particularly in applications where explosive environments or rapid response times are critical. Pneumatic actuators use electro-pneumatic positioners to convert an electronic control signal into a proportional air pressure output, which adjusts the valve position. Hydraulic actuators offer high force and precise control in heavy-duty applications, such as high-pressure process lines or power generation systems.
Modern V-control ball valves can also integrate with digital monitoring systems to provide real-time data on valve position, flow rate, and actuator health. This supports predictive maintenance, reducing unexpected downtime and extending valve service life. Some systems can even adjust valve settings automatically in response to changing process conditions, contributing to fully automated plant operations.
V-port ball valves are constructed similarly to conventional ball valves, but with enhancements to accommodate precise control and long-term durability. The main components include:
Valve Body: Available in a wide range of materials such as stainless steel, carbon steel, and specialized alloys, allowing for application in corrosive, high-temperature, or high-pressure environments.
Ball: Machined with a V-shaped port for precise flow modulation, often made from stainless steel or hardened alloys to resist wear and corrosion.
Seats: Designed to provide tight sealing and reduce leakage, commonly manufactured from PTFE, RPTFE, or other resilient materials depending on the fluid and temperature.
Stem and Bearings: Engineered for smooth operation and minimal friction, ensuring precise positioning of the ball throughout its life cycle.
Advanced designs may also include anti-blowout stems, double-seated construction, or pressure-balanced arrangements to improve safety and performance in critical applications.
The versatility and precision of electric V-control ball valves make them suitable for a broad range of industrial sectors:
Precise chemical dosing and flow control are essential to ensure consistent product quality. V-port ball valves allow operators to modulate corrosive or reactive chemicals with high accuracy, reducing waste and minimizing safety risks.
In municipal and industrial water systems, accurate flow control ensures proper treatment and distribution. V-port valves regulate flow in filtration, chemical injection, and pumping stations, maintaining system efficiency.
Heating, ventilation, and air-conditioning systems benefit from fine-tuned flow control to optimize energy usage. V-port ball valves adjust chilled water, steam, or hot water flows to maintain desired temperature profiles efficiently.
In upstream, midstream, and downstream operations, V-port valves provide precise control of hydrocarbon flows under varying pressure and temperature conditions, supporting safe and efficient processing.
Sanitary versions of V-port ball valves ensure precise flow of ingredients, liquids, and additives, maintaining product consistency while complying with hygiene standards.
While globe valves have historically been used for throttling applications, electric V-control ball valves offer several key advantages:
Compact Size: V-port ball valves are smaller and lighter than globe valves of equivalent flow capacity, saving space and simplifying installation.
Lower Operating Torque: The ball design requires less torque to operate, reducing actuator size and energy consumption.
High Rangeability: The V-shaped port allows precise control across a wide flow range, surpassing many globe valves in flexibility.
Minimal Leakage: Advanced seat designs ensure tight shut-off, even under high-pressure or corrosive conditions.
Digital Integration: Electric actuators facilitate smart monitoring, predictive maintenance, and automated control, which is not typically available with traditional globe valves.
These benefits make V-control ball valves a cost-effective alternative to globe valves for applications where precision flow regulation is required.
Maintenance of electric V-control ball valves is generally straightforward due to their robust construction and modular design. Key considerations include:
Actuator Inspection: Regularly check electrical connections, calibration, and feedback signals to ensure accurate valve positioning.
Seat and Ball Condition: Inspect seats and balls for wear, erosion, or chemical damage, replacing components as needed to maintain sealing performance.
Lubrication: Certain valve models require periodic lubrication of the stem and bearings to ensure smooth operation.
Digital Diagnostics: Many modern valves provide self-diagnostic capabilities, alerting operators to potential issues before they lead to failure.
With proper maintenance, electric V-control ball valves can deliver reliable service for decades, making them an excellent long-term investment for industrial processes.
The electric V-control ball valve sector continues to evolve in response to demands for higher efficiency, safety, and digitalization:
IoT Integration: Valves equipped with sensors and wireless connectivity provide real-time data on flow, pressure, and valve health, enabling predictive maintenance and remote control.
Smart Actuators: New electric actuators can self-calibrate, compensate for wear, and optimize energy consumption while maintaining precise control.
Advanced Materials: Emerging alloys and coatings improve resistance to corrosion, erosion, and high-temperature environments, expanding the applicability of V-port valves.
Energy Efficiency: Automated control and precise modulation reduce energy usage in pumping and heating systems, supporting sustainable industrial practices.
These innovations are helping industries adopt Industry 4.0 standards, where connected, data-driven systems enhance operational efficiency, safety, and productivity.
Electric V-control ball valves represent a modern solution for precise flow control in industrial processes. By combining the durability and compact design of ball valves with advanced actuation and smart monitoring capabilities, these valves offer superior rangeability, tight shut-off, and reliable modulation across diverse applications.
Whether in chemical processing, water treatment, HVAC, oil and gas, or food and beverage industries, V-port ball valves provide accurate, repeatable, and energy-efficient flow control, making them a preferred choice over traditional globe valves. With continued advancements in digital integration, materials, and actuator technology, electric V-control ball valves are poised to play an increasingly important role in the automation and optimization of industrial systems worldwide.
For industries seeking precision, reliability, and cost-effectiveness, investing in electric V-control ball valves is a strategic decision that enhances operational performance while supporting long-term sustainability goals.
