Pneumatic mixing control valves play a pivotal role in a wide array of industrial processes, offering unparalleled precision in regulating fluid flow across complex systems. These valves are engineered to manage a broad spectrum of pressures, temperatures, and materials, making them invaluable in demanding operational environments. In this article, we will explore the key features, specifications, and operational principles of pneumatic mixing control valves, highlighting their versatility and reliability in diverse applications.

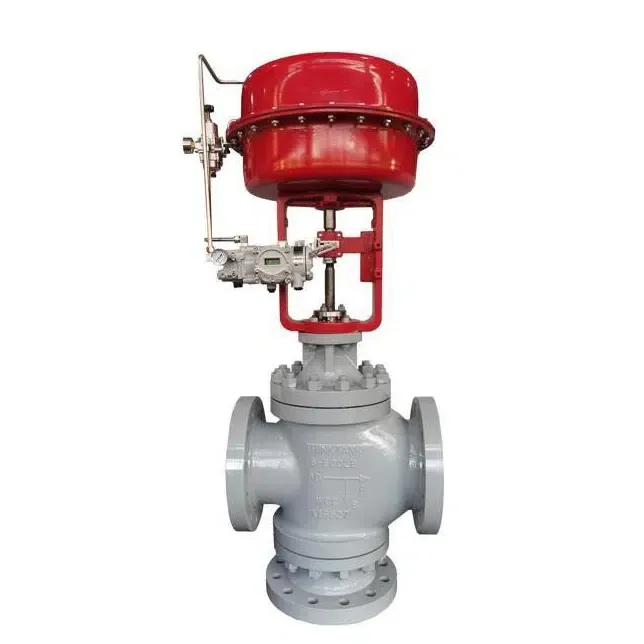

Pneumatic mixing control valves are predominantly designed as three-way cast globe valves. This configuration ensures a robust and durable structure capable of withstanding the stresses of industrial use. These valves are available in several pressure ratings, making them adaptable to a variety of system requirements. The primary pressure ratings include:
ANSI Class: 125, 150, 300, and 600
JIS: 10K, 16K, 20K, 30K, and 40K
PN: 1.6, 4.0, 6.4, and 10.0 MPa
These ratings allow pneumatic mixing control valves to perform efficiently across a range of low- to high-pressure environments, ensuring compatibility with diverse operational setups.
Pneumatic mixing control valves offer two primary types of end connections, each suited to different application needs:
Flanged End: Available configurations include Flat Face (FF), Raised Face (RF), Ring Joint (RJ), and Large (LG) flanges. These options adhere to global standards such as ANSI B16.5, JIS B2201, JB/T79.1, and JB/T79.2, ensuring ease of integration into existing systems.
Welded End: For applications requiring permanent, leak-proof connections, the valves can be equipped with Socket Weld (SW) or Butt Weld (BW) configurations, providing secure and long-lasting joints.
The construction materials of pneumatic mixing control valves are selected to ensure high resistance to wear, corrosion, and thermal stress. These valves are typically made from the following materials:
ASTM A216 WCB, ASTM A216 WC6: Commonly used for general-purpose applications, offering a balance between cost-effectiveness and performance.
ASTM A352 LCB: Ideal for low-temperature environments, these materials ensure optimal performance even in extreme cold.
ASTM A351 CF8, CF8M, CF3M, CF3: Stainless steel variants, best suited for corrosive or high-purity applications, offering enhanced resistance to chemical and environmental factors.
The selection of materials ensures that the valves are durable and capable of maintaining performance under the most challenging conditions.
The bonnet and gland designs of pneumatic mixing control valves are carefully crafted to support their intended operational functions, ensuring a secure and reliable sealing mechanism.
Plain Bonnet: Suitable for standard temperature ranges, typically from -17°C to 230°C.
Extension Bonnet: Designed for use in extreme temperature conditions, with a range from -60°C to -29°C, or temperatures above 230°C.
Bellows Seal: Used in critical applications requiring zero leakage, ensuring the highest level of sealing integrity.
The gland designs typically feature bolted configurations, with packing materials such as V-shaped PTFE, PTFE, and flexible graphite, all contributing to superior sealing performance.
Gasket Materials
The durability of the gasket material is essential for ensuring leak-free operation under a wide range of conditions. Pneumatic mixing control valves employ gaskets made from materials such as:
Stainless Steel (SUS304, SUS316, SUS316L)
Copper
Aluminum
These materials ensure that the valves can maintain their sealing integrity under various environmental and operational conditions.
Pneumatic mixing control valves are designed to operate in ambient temperatures ranging from -30°C to 70°C. This wide temperature range allows them to function effectively in both extremely cold and hot environments, making them highly adaptable to various industrial applications.
The action of the pneumatic mixing control valve is dictated by the actuator configuration. There are two primary actuator actions:
FO (Fail-Open): In the event of an air failure, the valve fails in the open position. This configuration is used with a direct-action actuator.
FC (Fail-Close): In contrast, a fail-close configuration uses a reverse-action actuator, causing the valve to close when air pressure is lost.
These actuator configurations enable pneumatic mixing control valves to be customized based on specific application needs, ensuring fail-safe operation in the event of a power or air failure.
To enhance the functionality of pneumatic mixing control valves, a wide range of optional accessories is available. These accessories can improve precision, control, and safety during operation. Notable accessories include:
P/P or I/P Positioner: Ensures precise control of valve position.
Air Filter Regulator: Maintains a clean and consistent air supply, improving valve performance.
Handwheel: A top-mounted or side-mounted option for manual operation, offering an additional layer of control.
Limit Switch: Provides feedback on valve position, ensuring accurate control.
Solenoid Valve: Allows for remote control of the valve’s operation.
Motion Transmitter: Transmits signals for better system integration.
Booster Relay: Amplifies control signals, improving responsiveness.
Lock-Up Valve: Maintains the valve's position during an air supply failure.
Airlock Relay: Ensures fail-safe operation during critical circumstances.
These accessories can be integrated into the valve system, providing enhanced functionality and reliability in various industrial processes.
The operational principles of pneumatic mixing control valves are centered around their unique three-way valve design. These valves are designed for both mixing and diverting services, depending on the needs of the application.
Mixing Service: The valve features two input ports and one outlet port. The valve plug is located inside the valve seat, allowing the mixing of two different fluids into a single output stream.
Diverting Service: Conversely, this configuration involves one inlet port and two outlet ports. The valve plug is positioned outside the valve seat, enabling the diversion of fluid from one inlet to two different outlets.
This design allows for seamless operation, where the valve can perform simultaneous opening and closing of ports without requiring specific air-to-open or air-to-close actions.
Pneumatic mixing control valves are engineered with fail-safe behavior in mind. In the event of an air failure, the valve will exhibit specific flow behaviors depending on the service type and actuator configuration. These behaviors are as follows:
Direct Action Mixing Service: An air failure results in vertical flow (from B to AB).
Reverse Action Mixing Service: Air failure causes horizontal flow (from A to AB).
Direct Action Diverting Service: Air failure results in horizontal flow (from AB to A).
Reverse Action Diverting Service: In the case of air failure, the valve directs vertical flow (from AB to B).
These fail-safe behaviors ensure that the valve will continue to operate in a safe and predictable manner, even in the absence of a reliable air supply.
Pneumatic mixing control valves are indispensable components in a range of industrial systems, offering precise control, versatility, and fail-safe operation. With their robust construction, wide material selection, and customizable features, these valves are perfectly suited to handle complex fluid flow requirements in both mixing and diverting applications. Whether operating in high-pressure or low-temperature environments, pneumatic mixing control valves provide reliable and efficient solutions for industrial fluid management. Their advanced design, coupled with optional accessories, ensures that these valves meet the stringent demands of modern industrial processes, making them a vital asset for businesses across multiple sectors.
