In today’s highly automated industrial world, control valves are the backbone of efficient and precise process control. Whether in oil and gas refineries, power plants, chemical manufacturing, or water treatment facilities, control valves ensure stable and safe operation by modulating the flow, pressure, temperature, or level of fluids within a system.
Control valves operate by receiving signals from controllers or sensors, adjusting their position accordingly to maintain process variables within desired limits. Their ability to provide real-time regulation of dynamic systems makes them critical to the success and safety of countless industrial applications.
This article provides a detailed overview of control valves—what they are, how they function, and why they are essential to maintaining efficient, safe, and reliable operations in modern industry.

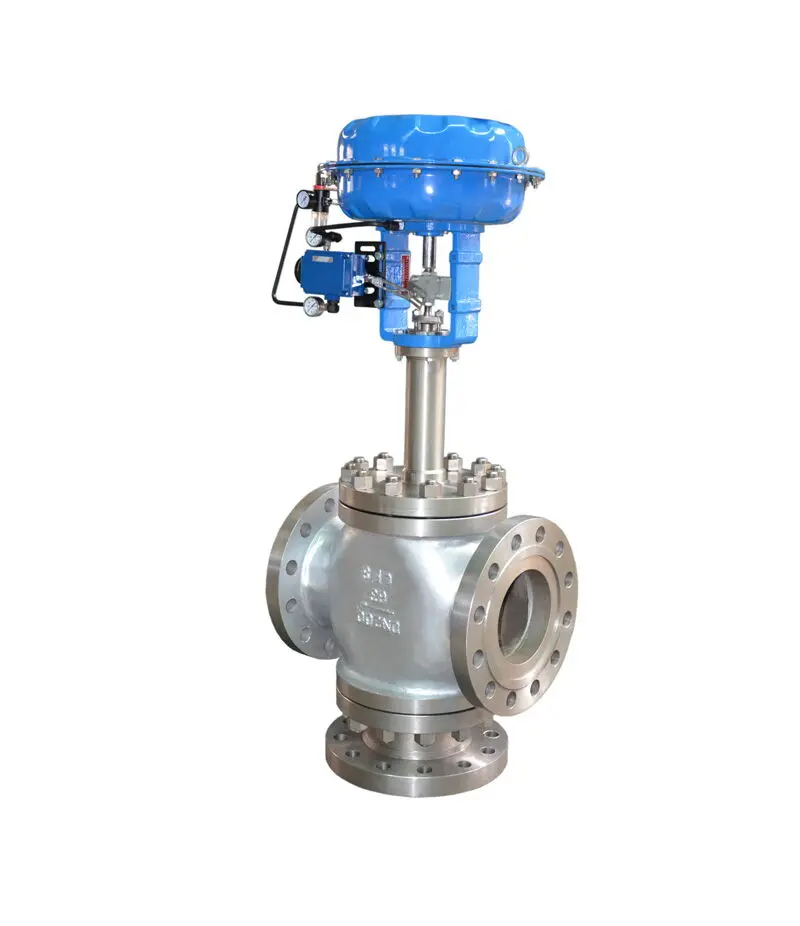

A control valve is a mechanical device that regulates fluid flow by varying the size of the flow passage, as directed by a controller. These valves respond to external signals—often electronic, pneumatic, or hydraulic—and adjust the flow of liquids, gases, or slurries to meet process requirements.
Control valves are typically part of a larger control loop, working with sensors (such as flow, temperature, or pressure transmitters), actuators, and controllers to form a responsive, automated system. By precisely adjusting process variables, control valves help optimize production, improve product quality, reduce energy consumption, and enhance operational safety.
Control valves can be classified in several ways, based on their function, body design, and actuation method. The two most common functional categories are:
Pressure control valves are designed to maintain a set pressure level within a system. These valves can either increase or decrease system pressure by modulating the flow path. Typical applications include:
Preventing overpressure situations
Maintaining system stability
Protecting sensitive equipment from damage
PCVs usually operate in conjunction with pressure transmitters (PTs), which monitor pressure levels and send feedback to the control system. Based on this feedback, the valve’s actuator adjusts the valve’s opening to maintain the setpoint.
Common types of pressure control valves include:
Pressure-reducing valves
Pressure-relief valves
Back-pressure valves
Flow control valves regulate the rate of fluid flow in a system. They are commonly used in applications where precise dosing, mixing, or distribution is required.
Flow control valves often work with flow transmitters (FTs), which measure the volumetric or mass flow rate of the fluid. When the flow rate deviates from the desired level, the valve modulates to restore the target rate.
Types of flow control valves include:
Globe valves
Needle valves
V-notch ball valves
Butterfly valves with throttling capability
A complete control valve setup includes more than just the valve body. It typically consists of:
The main component that houses the internal flow passage. Its design (globe, ball, butterfly, etc.) determines the valve’s flow characteristics and pressure capabilities.
The actuator provides the force necessary to move the valve’s stem or disc. Actuators can be:
Manual: Operated by a handwheel or lever
Pneumatic: Powered by air pressure
Hydraulic: Powered by fluid pressure

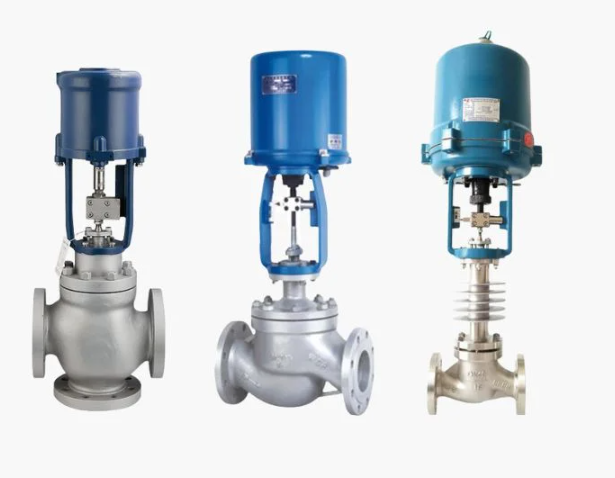

Electric: Driven by electric motors
A device that ensures the valve reaches the desired position by comparing the control signal to the valve's actual position and adjusting accordingly.
Devices such as pressure, temperature, or flow transmitters provide feedback signals to the control system, enabling real-time adjustments.
Control valves function by modulating the flow of fluid through the valve body in response to input signals. The process generally follows these steps:
Measurement: A sensor or transmitter measures a process variable (e.g., pressure, flow, temperature).
Signal Transmission: The measurement is sent to a controller, which compares the actual value to the setpoint.
Decision Making: The controller sends a signal to the valve’s actuator to adjust the valve position.
Valve Adjustment: The actuator moves the valve stem or disc to open, close, or throttle the flow.
Stabilization: The system stabilizes as the process variable returns to the setpoint.
The design of the valve’s internal components (trim, seat, plug, etc.) directly affects its responsiveness, flow capacity, and control precision.
Every control valve has a unique flow characteristic that describes how its flow capacity changes with valve travel. Common flow characteristics include:
Linear: Flow changes proportionally with valve opening.
Equal Percentage: Small valve openings cause small flow changes; larger openings cause exponentially larger changes. Ideal for pressure control.
Quick Opening: A small movement results in rapid flow increase. Best for on/off applications.
Understanding and selecting the appropriate flow characteristic is vital for process optimization.
Control valves contribute to a wide array of operational benefits across industries. Their primary advantages include:
By regulating pressure and flow, control valves help keep processes running within tight tolerances, ensuring consistent product quality.
They prevent overpressurization and flow surges that could damage pumps, compressors, or heat exchangers.
Proper flow and pressure control reduce wasted energy and optimize the performance of pumps and motors.
Control valves play a key role in process safety, helping prevent hazardous conditions due to uncontrolled pressure or flow.
By maintaining process efficiency and reducing emissions or leaks, control valves support regulatory compliance and environmental protection.
Control valves are used in virtually every process industry. Some key examples include:
Oil & Gas: For managing pressures in pipelines, separators, and refineries.
Power Generation: In boilers, turbines, and condensate systems.
Chemical Processing: To control reaction temperatures and flow rates.
Water and Wastewater Treatment: For distribution, filtration, and disinfection.
Pharmaceuticals and Food & Beverage: For precise dosing, mixing, and temperature control.
Each application may require specific valve materials, coatings, and configurations to handle corrosive media, high temperatures, or hygienic requirements.
Choosing the correct control valve involves evaluating several key factors:
Process Medium: Type of fluid, its corrosiveness, viscosity, and temperature.
Pressure and Temperature Ratings: Operating range and extremes.
Flow Rate Requirements: Minimum and maximum flows.
Valve Size and Flow Coefficient (Cv): Must match process demands.
Actuation Method: Depending on whether manual, pneumatic, or electric operation is needed.
Installation Environment: Indoor/outdoor, exposure to corrosive conditions, explosion-proof requirements, etc.
Failure to consider these elements can lead to poor control, premature wear, or safety hazards.
Control valves, like all mechanical components, require proper installation and regular maintenance to perform optimally. Common challenges include:
Leakage: Can result from worn seals or improper seating.
Stiction (static friction): Leads to poor response or oscillation.
Corrosion and Erosion: Due to aggressive fluids or cavitation.
Actuator Issues: Failure in the actuator mechanism can impair valve performance.
Routine inspections, cleaning, calibration, and part replacement are essential to extend valve life and avoid costly downtime.
As Industry 4.0 advances, control valves are evolving into smarter, more connected devices. Smart control valves are equipped with sensors, diagnostics, and wireless communication, offering features such as:
Remote monitoring and operation
Predictive maintenance alerts
Advanced data logging and performance analytics
Integration with Distributed Control Systems (DCS) and SCADA
These capabilities reduce manual intervention, improve reliability, and enhance system visibility, helping industries embrace digital transformation.
Control valves are vital components in any process system requiring the regulation of flow, pressure, or temperature. From ensuring process stability to enhancing energy efficiency and safety, their contributions are indispensable across countless industries.
Understanding the types, functions, and operations of control valves allows engineers and plant managers to design more effective systems, select the right valve for the job, and maintain peak operational performance. With advancements in smart technology, control valves are becoming even more powerful tools in the era of automation and digital manufacturing.
As industrial systems become increasingly complex and data-driven, the role of the control valve is set to expand—acting not just as a mechanical device but as an intelligent gateway for process optimization and operational excellence.
