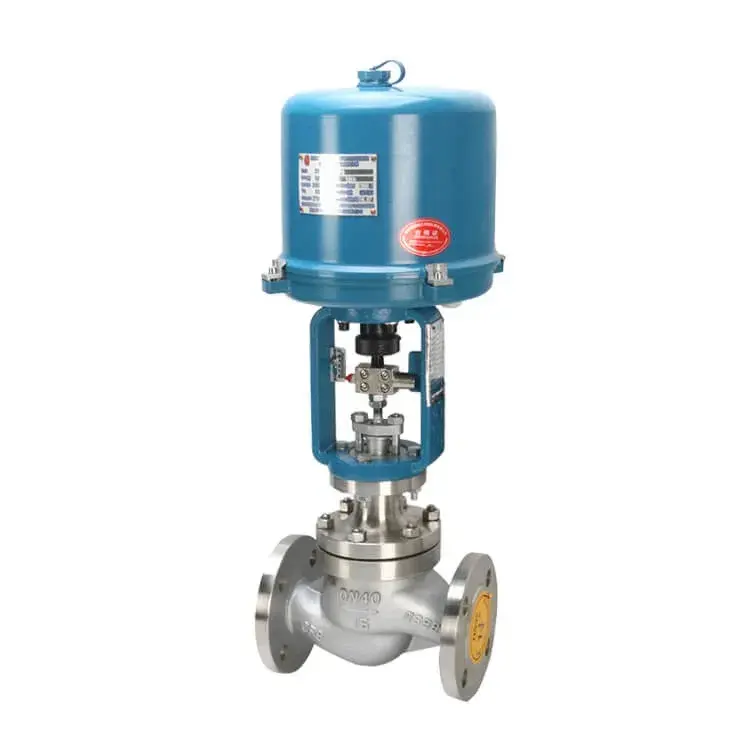

The electric globe control valve is a highly versatile and widely used type of valve designed to control, regulate, and shut off fluid flow in pipelines. Unlike manually operated globe valves, which require an operator to turn a handwheel, the electric globe valve integrates an electric actuator that automatically drives the stem up and down. This actuator movement changes the distance between the disc and the seat, allowing the valve to either open, close, or precisely regulate flow according to operational requirements.
Electric globe valves have found extensive applications in industries where precise control over fluid flow is essential, particularly in chemical production, water treatment, power generation, and process automation systems. They are especially suitable for controlling water, steam, and compressed air. However, they are generally not recommended for handling highly viscous fluids or those prone to crystallization, as these can impair the valve’s performance and longevity.
One of the distinguishing features of electric globe control valves is their easy open/close state identification. Operators can simply observe the exposed height of the valve stem to determine the current position, making them straightforward to monitor and operate even in complex systems.
The working principle of an electric globe control valve revolves around the conversion of electric energy into mechanical motion to move the valve stem. The actuator, powered by electricity, generates torque or linear force to drive the stem downward, pressing the valve disc against the seat. This creates a tight seal that stops the flow of the medium.
When flow regulation is required, the actuator positions the stem at precise intermediate points, thereby controlling the size of the opening and allowing a specific volume of fluid to pass. The electric actuator’s ability to respond to control signals enables automatic modulation based on process requirements.
Key points in the working process:
Signal Reception – The actuator receives a control signal from a control system (e.g., PLC, DCS, or SCADA).
Actuator Operation – Based on the signal, the actuator adjusts its position, either fully opening, fully closing, or partially opening the valve.
Flow Regulation – The movement changes the gap between the disc and the seat, regulating the flow rate accordingly.
Sealing Action – The downward force applied ensures the valve disc remains in close contact with the seat, preventing leakage.
This operational method enables electric globe valves to achieve precise throttling, fast response times, and consistent performance.
Electric globe control valves offer several distinct advantages that make them a preferred choice for many industrial systems:
These valves can provide either linear or equal percentage flow characteristics, ensuring excellent control accuracy. This makes them ideal for applications requiring fine adjustments in process variables such as temperature, pressure, or flow rate.
Electric actuators allow for remote control and monitoring, integrating seamlessly into automated process control systems. Operators can control valve positions without being physically present, which improves safety and operational efficiency.
Manufactured from robust materials such as stainless steel, carbon steel, or alloy steel, electric globe valves can withstand high pressure, high temperature, and corrosive environments. This ensures long service life even under challenging conditions.
The sealing design of globe valves, combined with actuator precision, offers superior shut-off capability, minimizing fluid loss and enhancing process safety.
Whether it is simple shut-off service or precise flow regulation in complex industrial systems, electric globe control valves adapt to various roles, making them a flexible solution for engineers.
Different types of electric globe control valves are available to suit varied operational requirements:
Provide excellent shut-off capability.
Best suited for applications where leakage prevention is critical.
Offer high sealing integrity but may have lower flow capacity than double-seated designs.
Allow higher flow capacity.
Better suited for situations where large flow volumes must be regulated rather than tightly shut off.
Reduced shut-off tightness compared to single-seated types.
Designed for mixing two fluid streams or diverting one stream into two paths.
Commonly used in heating, ventilation, and air conditioning (HVAC) systems, as well as in industrial processes requiring complex flow routing.
Proper installation is essential for achieving optimal performance and extending the service life of electric globe valves.
Ensure the actuator and valve body can be easily mounted and connected to the pipeline. Position the actuator for easy access during operation and maintenance.
Install the valve according to the indicated flow direction on the body to prevent performance issues and damage.
If installed outdoors or in harsh environments, ensure the actuator is properly sealed and weather-protected. Use an actuator with an IP-rated enclosure suitable for dust, moisture, or explosion-prone conditions.
Avoid installing the valve in areas with excessive vibration, or use dampening measures to protect the actuator and stem assembly.
Regular maintenance keeps electric globe valves functioning at peak efficiency.
Inspection – Periodically check the actuator, stem, and sealing surfaces for wear or damage.
Lubrication – Ensure moving parts are properly lubricated as per manufacturer recommendations.
Cleaning – Remove any debris or buildup inside the valve body to prevent performance loss.
Actuator Calibration – Verify the actuator responds accurately to control signals and adjust as necessary.
Choosing a valve with a maintenance-friendly design—such as easy access to internal components—can reduce downtime and lower servicing costs.
When selecting an electric globe valve, adherence to recognized industry standards is critical for safety, reliability, and compatibility.
ISO Standards – International benchmarks for quality management and manufacturing consistency.
ANSI and ASME – Widely recognized standards in North America, covering valve dimensions, pressure ratings, and performance.
API Specifications – American Petroleum Institute standards for valves used in the oil, gas, and petrochemical sectors.
Additionally, look for product certifications such as CE marking for European markets or CCC for Chinese markets. These indicate the product meets regulatory and safety requirements.
Selecting the correct valve requires careful consideration of several factors:
Evaluate temperature, pressure, corrosiveness, and cleanliness of the fluid.
Choose suitable materials (e.g., stainless steel for corrosive media, carbon steel for high-pressure steam).
Consider system flow rate and pressure drop.
Select a valve size and type that balance capacity with control precision.
Match actuator type to system needs: on/off, proportional control, or modulating control.
Ensure compatibility with control signals (e.g., 4–20 mA, 0–10 V, or digital communication).
Account for installation site conditions such as temperature, humidity, and potential explosion hazards.
Select actuators with appropriate ingress protection (IP) and explosion-proof ratings.
Opt for designs with easily replaceable parts and wide availability of spares.
Partner with suppliers offering strong after-sales service.
Electric globe valves are deployed across a broad range of industries, including:
Chemical Industry – For handling process media in reactors, separators, and heat exchangers.
Power Generation – For steam regulation in boilers and turbines.
Water Treatment – For controlling water flow in filtration and distribution systems.
HVAC Systems – For mixing, diverting, or regulating chilled and hot water.
Oil & Gas – For precise flow control in refining and petrochemical plants.
The electric globe control valve is a reliable, precise, and versatile solution for modern process industries. Its integration with electric actuators offers automation-friendly operation, precise flow control, and robust performance in demanding conditions. By understanding its working principle, benefits, installation requirements, and selection criteria, engineers and plant operators can ensure optimal system efficiency and long-term cost-effectiveness.
When chosen correctly and maintained properly, electric globe control valves can significantly enhance operational safety, energy efficiency, and production reliability—making them a smart investment for industries worldwide.
