In today’s fast-paced industrial environment, efficiency, reliability, and precision are non-negotiable. Whether in heating and cooling systems, water treatment plants, oil and gas facilities, or advanced manufacturing lines, controlling the flow of liquids and gases is critical. One component that has steadily gained prominence in modern applications is the 3-way motorized ball valve.
Ball valves have long been valued for their simplicity, durability, and effectiveness in managing flow. With the integration of automation through motorized actuators, these valves have evolved into powerful tools that improve system performance while reducing the need for manual labor. Among them, the 3-way motorized ball valve stands out for its ability to handle more complex fluid routing tasks, offering industries flexibility that traditional two-way valves simply cannot match.
This article explores what a motorized ball valve is, the specific advantages of the 3-way configuration, how it works, its applications, and why it has become indispensable in modern industries.
At its core, a ball valve is a shut-off valve that controls flow using a rotating ball with a bore (or port). By rotating the ball a quarter turn (90 degrees) with respect to the valve body, the bore either aligns with the pipeline, allowing flow, or turns perpendicular to block it. This simple mechanism provides quick and reliable shutoff and flow control.
When automation is added through a motorized actuator, the valve becomes even more versatile. Instead of manual handles, an electric motor provides the torque needed to open, close, or position the valve. This allows for remote operation, integration with control systems, and precise automation, making motorized ball valves a staple in advanced fluid management.
Motorized ball valves generally fall into two categories:
Pneumatic motorized ball valves, powered by compressed air, suitable for fast response and rugged conditions.
Hydraulic motorized ball valves, powered by pressurized fluid, offering higher torque and better performance under extreme conditions.
Each type brings unique benefits, but for many industries, electric motorized actuators are the most practical option, especially when remote monitoring and automated control are key priorities.

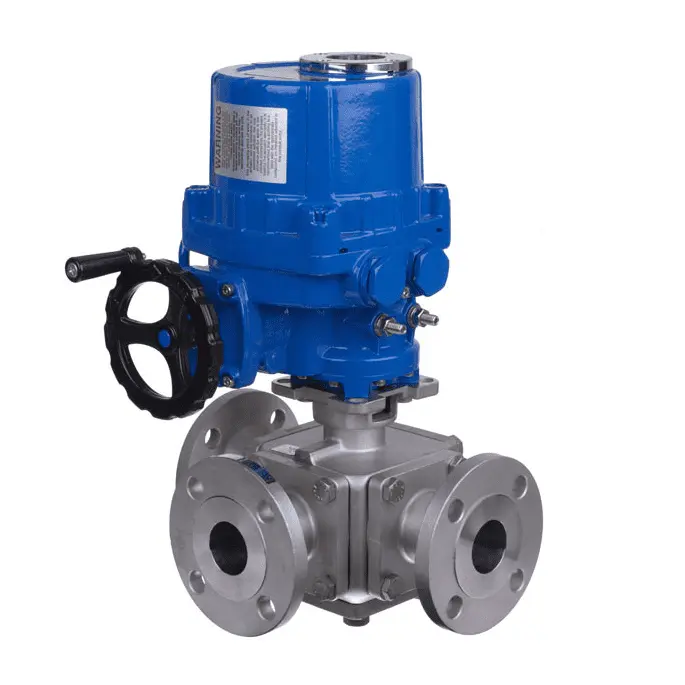

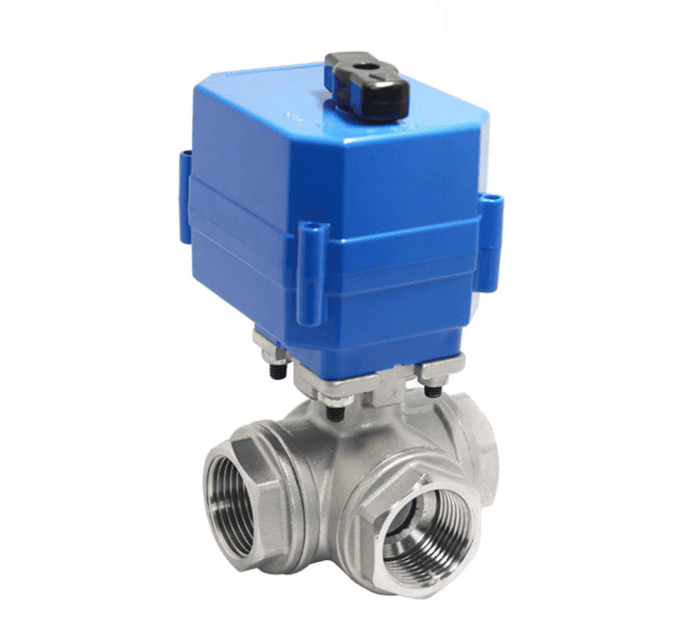

Unlike the traditional two-way ball valve, which provides only open or closed flow paths, a 3-way motorized ball valve introduces a new level of flexibility.
Inside the valve, the ball is designed with three ports. These ports can be configured to redirect flow in multiple directions, mix different fluids, or split a single stream into two separate channels. This makes the valve ideal for more complex processes where simple on/off control isn’t enough.
There are two main configurations:
T-port configuration: Allows flow between three channels simultaneously. It can be used for mixing two inlets into one outlet or distributing one inlet into two outlets.
L-port configuration: Directs flow between two of the three ports at a time, effectively switching flow from one outlet to another.
The ability to choose between these configurations makes the 3-way motorized ball valve an adaptable solution for countless scenarios, from diverting cooling water in HVAC systems to switching chemical feeds in processing plants.
The working principle revolves around the motorized actuator attached to the valve body. The actuator receives electrical signals from a control system or operator command. Based on these signals, it rotates the valve’s internal ball to align the desired ports.
For example:
In a T-port valve, the actuator may align all three ports to allow mixing or create two simultaneous flow paths.
In an L-port valve, the actuator may rotate the ball to connect the inlet to one outlet while blocking the other, then switch positions when required.
This automated control eliminates the need for manual valve operation, enabling seamless integration into industrial automation systems. Operators can manage flows from a centralized control room, reducing labor costs, improving accuracy, and minimizing risks associated with human error.
The modern 3-way motorized ball valve incorporates advanced engineering to meet industrial demands. Some of the standout features include:
Provides remote and automated operation.
Enables precision in flow control and seamless system integration.
Designed with robust materials such as stainless steel, brass, or engineered plastics.
Resistant to wear, corrosion, and aggressive fluids.
L-port and T-port options available to meet different operational needs.
Adaptable to both mixing and diverting processes.
Suitable for extreme temperatures and pressures.
Works reliably with liquids, gases, and even slurries.
Compact design allows for simple integration into pipelines.
Minimal moving parts reduce maintenance requirements.
The versatility of the 3-way motorized ball valve makes it an essential component in numerous sectors:
Used for switching between heating and cooling circuits, regulating chilled or hot water distribution, and ensuring energy efficiency in buildings.
Directs flow between treatment stages, diverts wastewater streams, or mixes chemicals for purification.
Handles aggressive fluids, diverts crude oil or natural gas streams, and manages pressure variations under harsh conditions.
Ensures precise mixing of chemicals, switching between production lines, and handling corrosive substances.
Used in sanitary processes for routing ingredients, cleaning solutions, and mixing operations.
Supports sterile fluid handling, accurate ingredient dosing, and reliable switching between production stages.
The wide scope of these applications highlights the valve’s ability to combine efficiency with adaptability, making it indispensable for industries aiming to optimize processes.
Automated actuation reduces manual labor, ensures consistent performance, and enables integration into modern smart systems.
With multiple configurations, one valve can handle tasks that might otherwise require multiple units.
Lower installation costs (fewer valves required), reduced downtime, and minimal maintenance contribute to long-term savings.
Remote operation minimizes the need for workers to interact directly with hazardous fluids or extreme environments.
Accurate flow control reduces waste, prevents leaks, and supports sustainable operations.
Selecting the right 3-way motorized ball valve requires careful evaluation of:
Material Compatibility: Stainless steel for corrosive media, brass for water systems, or special alloys for aggressive chemicals.
Port Configuration: Choosing between L-port and T-port depending on the process requirements.
Actuator Type: Electric actuators are most common, but pneumatic or hydraulic options may be better for certain environments.
Pressure and Temperature Ratings: Ensuring the valve can withstand system conditions.
Maintenance Access: Considering ease of servicing to reduce downtime.
By analyzing these factors, businesses can maximize both performance and longevity of their flow control systems.
With the growing trend toward Industry 4.0 and smart factories, 3-way motorized ball valves are set to become even more advanced. Modern designs are incorporating:
Smart sensors for real-time monitoring.
IoT connectivity for predictive maintenance.
Energy-efficient actuators to reduce power consumption.
Advanced materials that extend service life under extreme conditions.
These innovations will further enhance reliability, sustainability, and cost-effectiveness, ensuring that motorized ball valves remain central to fluid control systems in the years ahead.
The 3-way motorized ball valve represents a leap forward in flow control technology. Combining the mechanical reliability of ball valves with the automation of electric actuators, it offers industries unparalleled flexibility, efficiency, and safety.
From HVAC systems and water treatment plants to oil refineries and pharmaceutical facilities, these valves provide precise and adaptable control, making them vital to modern infrastructure.
As industries continue to demand smarter, safer, and more sustainable solutions, the 3-way motorized ball valve will remain an essential component in shaping the future of fluid management.
