In the world of industrial automation and process engineering, control valves are the cornerstone of fluid regulation systems. Among the various types available, three-way control valves play a crucial role in a wide range of industrial applications—from heating and cooling systems to complex chemical processing setups. These valves are especially valued for their ability to mix or divert fluid flows, making them indispensable in systems requiring precise temperature control, batch processing, or system balancing.
This article provides a comprehensive overview of 3-way control valves, covering their operating principles, structural types, functional benefits, and essential criteria for selection.

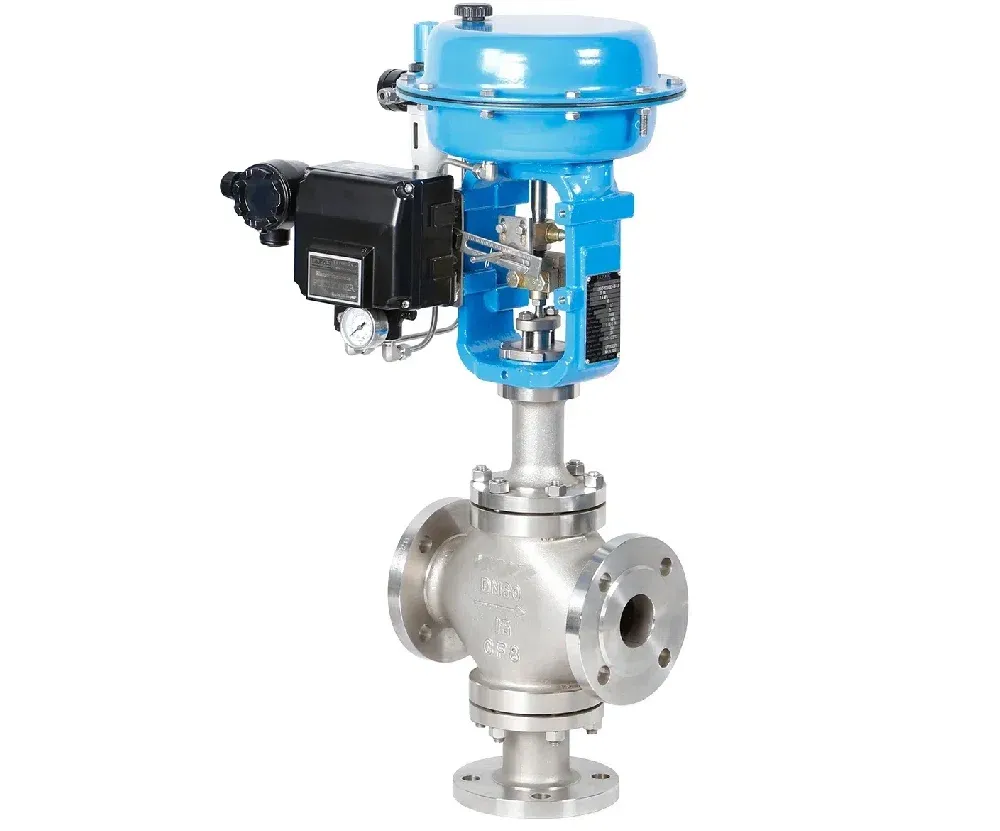

A three-way control valve is a type of valve with three ports designed to direct the flow of fluid within a piping system. These valves typically perform one of two primary functions:
Mixing: Two inlets combine fluid flows into one outlet.
Diverting: One inlet splits the flow into two separate outlets.
Their ability to handle either task with a single device simplifies system design, reduces the need for additional valves and fittings, and minimizes maintenance. These valves are often shaped in a “T” configuration, hence sometimes referred to as T-port valves, with ports arranged to enable dynamic redirection of flow.
Industries such as HVAC, power generation, chemical processing, food and beverage, water treatment, and oil and gas frequently rely on 3-way valves to maintain efficient and stable process control.
Depending on the application's specific requirements, 3-way valves come in various configurations. The most common are balanced and unbalanced designs, each suited to different operational needs.
A balanced three-way valve is engineered for both converging (mixing) and diverging (splitting) flow patterns. Its internal structure is designed to minimize the impact of pressure fluctuations, enabling stable and accurate fluid regulation even under high flow rates or varying system conditions.
Key features:
Suited for applications requiring continuous modulation and precise control.
Balancing components offset internal pressure forces, reducing wear and increasing service life.
Often used in critical service conditions such as steam control, thermal oil circuits, and process heating systems.
Applications:
HVAC systems for regulating heating and cooling water.
Chemical reactors for maintaining temperature by mixing hot and cold fluids.
Steam systems requiring accurate pressure modulation.
An unbalanced three-way valve is typically used for mixing services, where two streams are combined into one. While capable of diverging flow, its unbalanced design makes it unsuitable for precision flow-splitting operations when constant modulation is required.
Key features:
Cost-effective for simple mixing tasks.
Less complex construction and easier maintenance.
Best suited for on-off diverging applications, where fluid is directed to one of two outlets without fine modulation.
Applications:
Batch processes where two ingredients are combined.
Utility systems such as hot and cold water mixing.
Low-pressure, low-temperature environments not requiring balanced force control.
At the core of a 3-way valve is a movable plug or ball that redirects fluid between the three ports. The control mechanism—either manual, pneumatic, or electric—adjusts the valve position to either:
Mix two inlet flows into a single outlet (Mixing Mode), or
Split one inlet flow into two separate outlets (Diverting Mode).
These valves can be configured in several ways depending on the intended control function:
L-Port Configuration: Primarily for simple on-off flow switching between two outlets.
T-Port Configuration: Allows for simultaneous mixing or partial flow between all three ports.
When paired with actuators and control systems, 3-way valves enable highly dynamic and responsive flow control, essential for modern industrial process management.
Three-way valves offer several advantages over multiple two-way valve configurations, including:
System Simplification: Reduces the number of valves, piping, and instrumentation required.
Space Efficiency: Compact design saves space in tight installations.
Lower Maintenance: Fewer components mean less wear, fewer leaks, and lower maintenance costs.
Greater Control Accuracy: Especially in balanced valves, precise modulation improves process efficiency.
Cost-Effectiveness: A single valve performing the work of two can reduce installation and operational costs.
These advantages make three-way valves a preferred choice for engineers aiming to optimize space, performance, and cost in system design.
Choosing the appropriate 3-way control valve requires careful consideration of several technical and operational factors. Here's a detailed guide to help you make the right decision:
The properties of the process fluid play a vital role in valve selection. Consider the following:
Chemical Compatibility: For corrosive or abrasive media, materials such as stainless steel, bronze, or special alloys are necessary.
Viscosity: Highly viscous fluids may require valves with larger ports or specific internal geometries.
Clean or Dirty Service: Fluids with particulates or solids may require self-cleaning or flushable valve designs.
Tip: Always consult chemical resistance charts and material compatibility guides when choosing valve body and seat materials.
Assess both the minimum and maximum pressure and temperature conditions in your system. Valves must be rated to handle worst-case scenarios without failure.
For high-pressure systems, a balanced valve design is more suitable.
For steam or hot oil systems, valve materials must withstand thermal expansion and pressure spikes.
Note: Always check the valve’s ANSI or DIN class rating for compliance with system pressure and temperature requirements.
Proper valve sizing ensures the valve can handle the desired flow capacity (Cv) while maintaining control precision.
Undersized valves may restrict flow and increase pressure drop.
Oversized valves can lead to instability and poor modulation.
Perform a Cv calculation based on the system’s flow rate, pressure differential, and fluid type to determine the correct valve size. Many manufacturers provide sizing software or charts for reference.
Evaluate your existing piping system and available space:
Valve Size Range: Ensure the valve is available in diameters matching your pipeline (commonly from 15mm to 300mm, or ½" to 12").
End Connections: Choose between flanged, threaded, or welded ends based on your system requirements.
Installation Space: Consider actuator size and valve body dimensions to ensure fit in confined areas.
Three-way valves can be actuated in different ways, depending on the level of control needed:
Manual Actuators: Ideal for simple systems where occasional manual adjustment is sufficient.
Pneumatic Actuators: Fast-acting and widely used in industrial automation for remote control.
Electric Actuators: Offer precise control and easy integration into smart systems and PLCs.
When selecting an actuator, ensure it provides sufficient torque, has compatible control signals (e.g., 4–20 mA, 0–10V), and suits your fail-safe preferences (fail-open, fail-close, or lock-in-place).
System safety is paramount. Consider:
Pressure Relief Requirements
Shutoff Characteristics
Compliance with Industry Standards (API, ASME, ISO, CE, etc.)
In critical processes, adding positioners, limit switches, and feedback loops can enhance safety and ensure reliable operation.
Because of their flexibility, 3-way valves are used across a broad spectrum of industries:
HVAC Systems: Regulating chilled or hot water to maintain ambient temperatures.
Chemical Plants: Blending chemicals or diverting flows between reactors.
Food and Beverage: Sanitary mixing and CIP (Clean-in-Place) systems.
Power Plants: Turbine bypass, steam conditioning, and feedwater control.
Pharmaceuticals: Precise dosing and sterile mixing.
Their modular design and broad material availability make them adaptable to nearly any process requiring reliable flow switching or blending.
Three-way control valves are more than just mechanical components—they are intelligent tools for achieving reliable, efficient, and accurate fluid control in complex industrial systems. Whether used for mixing or diverting applications, their ability to manage multiple flow paths with a single device brings significant advantages in terms of space savings, operational simplicity, and cost reduction.
By understanding the different valve types—balanced and unbalanced—and carefully considering factors such as fluid type, pressure and temperature conditions, actuator needs, and safety requirements, engineers and operators can select the ideal 3-way control valve for any process.
As industries continue to embrace automation, energy efficiency, and smart process management, the role of 3-way control valves will only grow in importance—serving as key elements in the pursuit of higher performance and sustainability across sectors.
