Common Issues with Double Acting Pneumatic Actuators

Introduction

Double acting pneumatic actuators are essential components in a wide range of industrial applications. These devices play a critical role in controlling the movement of valves and other mechanical systems by using compressed air to create motion in both directions. While these actuators are known for their efficiency and reliability, like any piece of equipment, they can encounter issues over time. Understanding these common problems is crucial for maintaining smooth operations and ensuring that the actuator performs optimally throughout its lifecycle.

In this article, we will discuss what a double acting pneumatic actuator is, its common problems, and how to address them to maintain optimal functionality.

What is a Double Acting Pneumatic Actuator?

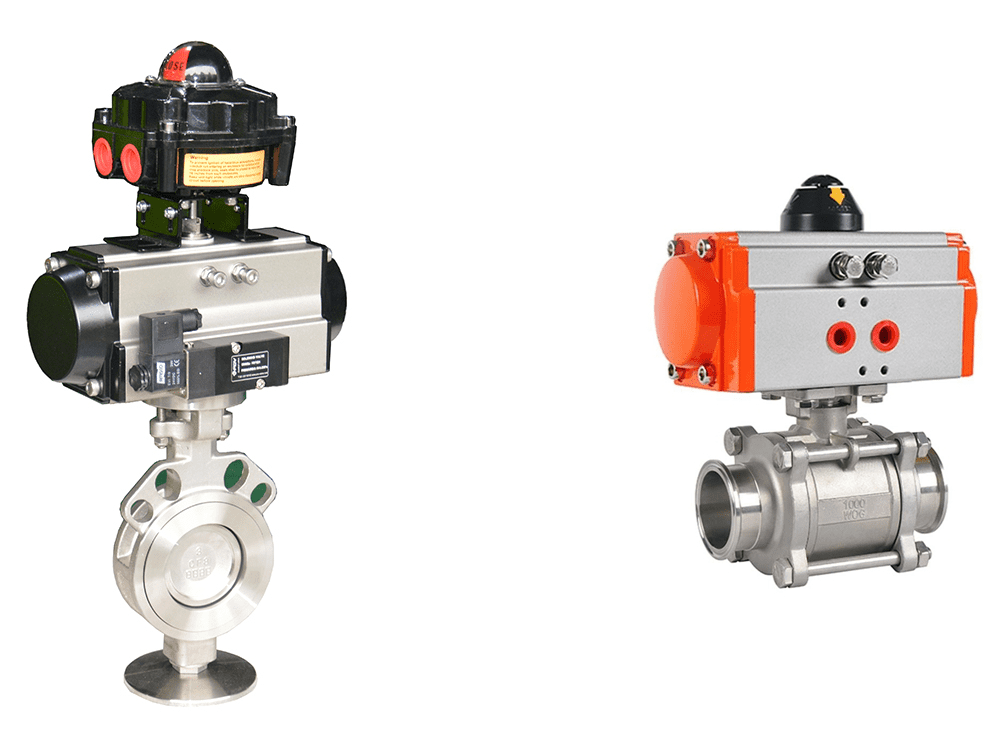

A double acting pneumatic actuator is a device that uses compressed air to move a valve or mechanism in both directions. Unlike single-acting actuators, which only use air to move in one direction and rely on a spring for the return stroke, double acting actuators utilize air pressure for both the opening and closing movements. This design makes them highly efficient for applications where precise control is required, especially in heavy-duty industrial settings such as oil and gas, chemical processing, and water treatment plants.

The actuator consists of a piston or diaphragm inside a cylinder. When compressed air is introduced, it pushes the piston in one direction, and when the air supply is switched to the opposite side, it moves the piston back. This two-way motion provides more consistent force, making double acting pneumatic actuators suitable for more demanding applications compared to their single-acting counterparts.

Despite their advantages, double acting pneumatic actuators can face several issues during operation. These challenges can lead to inefficiencies, reduced productivity, and even system failures if not addressed properly. Let’s explore some of the most common problems encountered with these actuators.

Common Issues of Double Acting Pneumatic Actuators

Air Leaks and Inadequate Supply

One of the most common issues with double acting pneumatic actuators is air leaks. These leaks can occur at various points, including the seals, fittings, and connections between the actuator and the valve. Over time, worn-out seals or improper installation can lead to significant air loss, reducing the actuator's efficiency.

Inadequate air supply is another frequent problem. If the actuator doesn’t receive sufficient air pressure, it may not have enough force to operate correctly. This can result in incomplete valve movements or sluggish operation, affecting the overall system's performance.

Solution

Regular inspection of seals, fittings, and connections is essential to prevent leaks. Ensuring a consistent and adequate air supply is also crucial for optimal performance.

Slow Response Times

Slow response times can significantly impact the efficiency of a system that relies on pneumatic actuators. This problem may arise due to restricted airflow, clogged filters, or incorrect sizing of the actuator relative to the load it’s moving. Additionally, insufficient lubrication in the system can lead to increased friction, further slowing down the actuator’s response.

Solution

Regular maintenance, including cleaning or replacing filters and ensuring proper lubrication, can help maintain optimal airflow and improve response times. Selecting the right-sized actuator for the specific application is also vital to avoid performance issues.

Overheating and Thermal Issues

Although pneumatic actuators typically don’t generate much heat during operation, in certain demanding applications, they can experience overheating. This can occur if the actuator is subjected to excessive cycling without adequate rest periods or if it is exposed to high ambient temperatures. Overheating can lead to internal component damage, which, if left unchecked, may cause the actuator to fail prematurely.

Solution

Ensure that the actuator is used within its recommended operating parameters. If the actuator is frequently overheating, consider reducing the cycle rate or installing cooling systems to help dissipate heat.

Sticking, Jamming, and Malfunctions

Sticking or jamming can occur when internal components such as the piston, seals, or valves become worn, misaligned, or obstructed by debris. These issues often result from a lack of regular maintenance or environmental factors like dirt, dust, or moisture entering the system. Jamming can lead to erratic operation or even complete failure of the actuator, compromising the system it controls.

Solution

Regularly inspect and clean the actuator components, and replace worn or damaged parts as needed. Installing proper filters and environmental safeguards can also help prevent debris from entering the system.

Excessive Operational Noise

Excessive noise during operation is often an indicator of underlying issues within the actuator. High noise levels can be caused by air leaks, vibration due to misalignment, or internal wear and tear on components such as bearings or seals. Ignoring these noise signals can lead to more severe problems over time.

Solution

Identify and address the source of the noise by checking for air leaks, ensuring proper alignment, and inspecting internal components for wear. Timely repairs can prevent further damage and prolong the actuator’s life.

Oscillation or “Hunting” Behavior

Oscillation, also known as “hunting,” is a common issue where the actuator repeatedly overshoots its target position and then corrects itself, causing a back-and-forth movement. This can occur due to improper tuning of the control system, worn seals, or a misaligned actuator. Oscillation can lead to increased wear on components and reduce overall system efficiency.

Solution

Fine-tuning the control system and inspecting the actuator for alignment issues or worn parts can help reduce oscillation. Ensuring proper calibration is key to avoiding hunting behavior.

Seal Deterioration and Wear

Seals are critical components in pneumatic actuators, ensuring that air is properly contained and directed. Over time, seals can deteriorate due to friction, temperature fluctuations, and exposure to corrosive substances. As seals wear out, they lose their ability to maintain proper pressure, leading to air leaks and reduced performance.

Solution

Regularly inspect seals and replace them when signs of wear or damage appear. Using high-quality, durable seal materials can help extend the actuator’s lifespan and reduce maintenance needs.

Corrosion and Environmental Damage

Pneumatic actuators are often exposed to harsh environmental conditions, including moisture, chemicals, and extreme temperatures. Corrosion and environmental damage can compromise the structural integrity of the actuator, leading to reduced efficiency, leaks, and ultimately, failure. Actuators in corrosive environments are particularly vulnerable if not properly protected.

Solution

Choose actuators made from corrosion-resistant materials and consider applying protective coatings. Regular maintenance and environmental monitoring can also help mitigate the impact of corrosive factors.

Incorrect Actuator Sizing or Selection

Selecting the wrong actuator for the application is a common problem that can lead to various operational issues. If the actuator is too small, it may not provide enough force to move the valve or mechanism properly. Conversely, an oversized actuator can result in unnecessary wear and increased energy consumption.

Solution

Ensure that the actuator is properly sized and selected based on the specific requirements of the application, including load, air pressure, and operating environment. Consulting with experts during the selection process can help prevent this issue.

Conclusion

Double acting pneumatic actuators are highly efficient and reliable components used in various industrial applications. However, like any mechanical device, they are prone to certain issues that can affect performance and longevity. By understanding and addressing common problems such as air leaks, slow response times, overheating, and improper sizing, you can ensure the optimal operation of your pneumatic actuators and maintain the efficiency of your systems.

Regular maintenance, proper sizing, and selecting the right materials and designs for specific environments are essential to minimizing downtime and maximizing the lifespan of these actuators. With the right approach, you can prevent common issues and keep your operations running smoothly.
