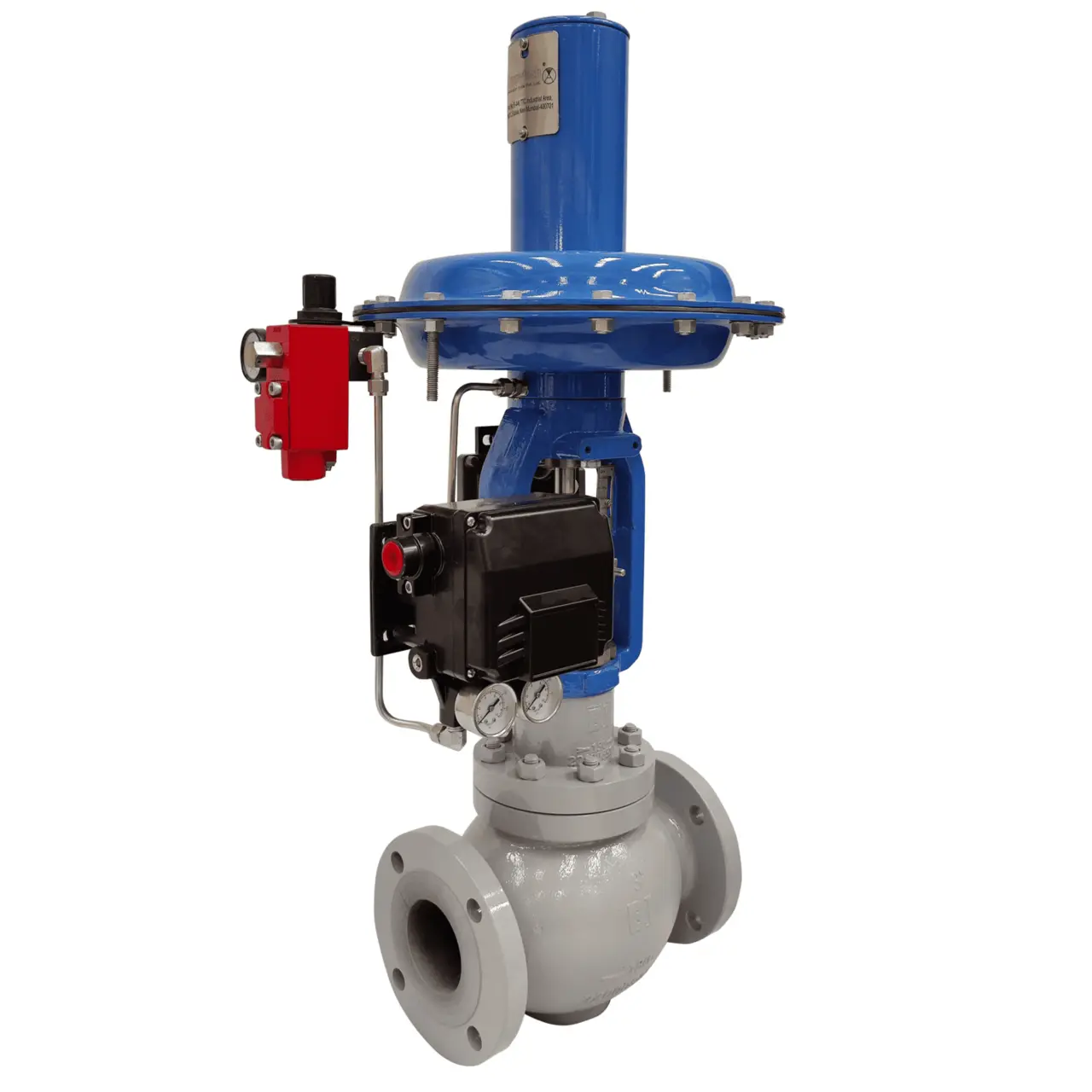

In modern industrial operations, control valves serve as the final control elements in process loops, regulating the flow of liquids, gases, and steam with precision. These valves are integral to industries such as oil and gas, power generation, chemical processing, water treatment, and pharmaceuticals. However, even the most advanced control valve will fail to perform optimally without proper calibration.
Calibration ensures that a control valve accurately translates control signals into the correct mechanical movement, maintaining process efficiency, safety, and reliability. A poorly calibrated valve can lead to:
Process inefficiencies (wasted energy, inconsistent product quality)
Increased maintenance costs (premature wear, frequent repairs)
Safety hazards (overpressure, leaks, or uncontrolled flow)
Regulatory non-compliance (violations of industry standards)
This comprehensive guide explores the step-by-step process of calibrating control valves—both with and without positioners—along with essential tools, common challenges, and industry best practices to ensure optimal performance.
Control valve calibration is the process of adjusting a valve’s response to ensure it accurately follows a control signal (typically 4-20 mA or 3-15 PSI). The goal is to confirm that:
At 3 PSI (or 4 mA), the valve is fully closed (0% stroke).
At 15 PSI (or 20 mA), the valve is fully open (100% stroke).
Intermediate signals produce proportional valve movement.
Ensures Process Accuracy – Prevents flow deviations that could disrupt production.
Extends Valve Lifespan – Reduces mechanical stress from improper operation.
Improves Safety – Mitigates risks of overpressure or leaks.
Meets Industry Standards – Complies with API, ISA, and ISO guidelines.
During installation – Ensures proper initial setup.
After maintenance or repairs – Verifies correct reassembly.
Periodically (annually or biannually) – Accounts for wear and drift.
After process upsets – Checks for damage from abnormal conditions.
Before starting calibration, gather the following tools:
| Tool | Purpose |
|---|---|
| 4-20 mA calibrator / source feeder | Simulates control signals for electronic valves. |
| Pneumatic signal regulator (3-15 PSI) | Provides precise air pressure input. |
| Air supply regulator (20 PSI minimum) | Powers pneumatic actuators. |
| Pressure gauge (3-15 PSI range) | Monitors input signal accuracy. |
| HART communicator (for smart valves) | Configures digital positioners. |
| Multimeter (for mA verification) | Checks electrical signals. |
| Valve datasheet | Provides manufacturer specifications. |
| Calibration software (if applicable) | Logs and analyzes calibration data. |
Pneumatic positioners enhance valve precision by converting control signals into exact mechanical movements. Follow this detailed calibration process:
Isolate the valve from the process.
Depressurize and drain the valve if necessary.
Verify air supply (clean, dry, 20 PSI minimum).
-
Apply a 3 PSI (or 4 mA) signal.
-
Observe valve position—should be fully closed.
-
If not, adjust the zero screw on the positioner until closure is achieved.
-
Increase the signal to 15 PSI (or 20 mA).
-
The valve should fully open.
-
If not, adjust the span screw until full stroke is reached.
Test at 6 PSI (25%), 9 PSI (50%), and 12 PSI (75%).
If nonlinear, fine-tune zero/span or check for mechanical issues.
Cycle the valve 0% → 100% → 0% multiple times.
Ensure consistent positioning (±1% error is acceptable).
Record calibration data (as-found & as-left values).
Update maintenance logs and compliance records.
Some valves rely solely on direct actuator response. Calibration differs slightly:
Connect a 3-15 PSI signal directly to the actuator.
At 3 PSI, adjust the spring tension for full closure.
At 15 PSI, adjust the actuator stroke for full opening.
Test intermediate positions for smooth operation.
Check for stick-slip (jerky movement) and lubricate if needed.
| Issue | Possible Cause | Solution |
|---|---|---|
| Valve doesn’t move | No air supply, blocked signal | Check regulators and tubing |
| Inconsistent positioning | Worn actuator, linkage play | Inspect mechanical parts |
| Slow response | Clogged positioner, low air pressure | Clean or increase supply |
| Excessive hysteresis | Friction in stem/seals | Lubricate or replace seals |
-
Follow ISA-75 & API Standards – Ensures compliance with industry norms.
-
Use Certified Calibration Equipment – Improves accuracy.
-
Implement Predictive Maintenance – Detects issues before failure.
-
Train Technicians Regularly – Keeps skills up-to-date.
-
Maintain Calibration Records – Essential for audits and troubleshooting.
A well-calibrated control valve optimizes process efficiency, reduces downtime, and enhances safety. By following structured calibration procedures—whether with or without a positioner—industries can ensure reliable operation and regulatory compliance.
Investing in regular calibration, quality tools, and skilled personnel pays off in long-term cost savings, improved productivity, and safer operations.
