Introduction

Electric gate valves play a critical role in modern industrial applications, offering a blend of automation, precision, and reliability. These valves have transformed the way fluid flow is controlled across industries, making operations more efficient, cost-effective, and safer. The rise of electric gate valves is part of the broader trend toward automating valve control, which helps reduce the need for manual operation while providing enhanced precision. In this article, we will dive into what electric gate valves are, their working principles, applications, and the benefits they offer to various industries.

What is an Electric Gate Valve?

An electric gate valve is a type of gate valve that is powered by an electric actuator. Unlike manual gate valves, which rely on handwheels to open and close, electric gate valves use electric power to automate the process. The primary function of a gate valve is to regulate the flow of liquids or gases through a pipeline by raising or lowering a gate (or wedge) inside the valve body. When the gate is fully lifted, the flow is unrestricted, and when it is fully lowered, the flow is completely blocked.

Electric gate valves are favored in industries that require precise control of the flow rate and where manual operation would be cumbersome, such as in high-pressure or high-temperature environments. They are typically used for on/off control rather than throttling applications, ensuring that the valve is either completely open or closed.

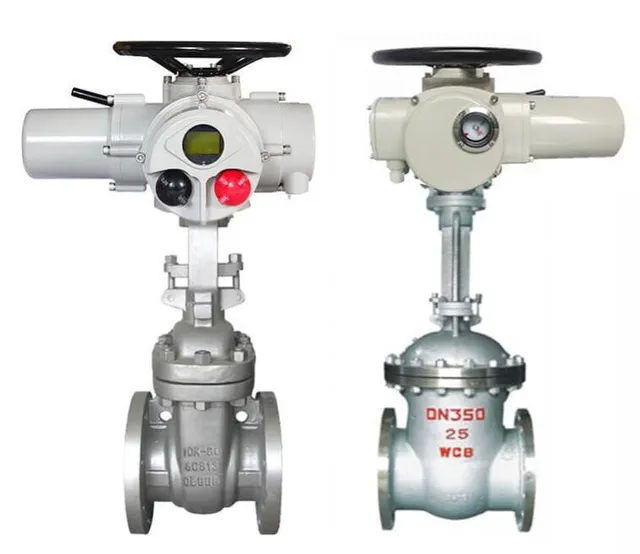

Electric Gate Valve

Working Principle of Electric Gate Valve

The working principle of an electric gate valve is straightforward yet highly effective. The valve is equipped with an electric actuator that converts electrical energy into mechanical motion. When activated, the actuator moves the valve stem, which in turn raises or lowers the gate plate inside the valve body.

Here’s a step-by-step breakdown of how an electric gate valve operates:

Electric Activation

The actuator receives an electrical signal, which prompts it to rotate or move.

Stem Movement

The actuator drives the valve stem, either pushing it upwards to open the valve or pulling it downwards to close the valve.

Gate Plate Movement

As the valve stem moves, it raises or lowers the gate plate inside the valve body, controlling the flow of the medium through the pipeline.

Flow Regulation

When the gate is fully lifted, the pipeline is open, allowing free flow. Conversely, when the gate is fully lowered, the flow is blocked.

Remote Control Capability

Many electric gate valves are designed for remote control. By integrating the valve with a control box and other accessories, operators can open or close the valve from a distance, enhancing operational efficiency and reducing the need for on-site manual control.

This combination of electric power and mechanical motion allows for precise, automated control of the valve, making electric gate valves ideal for a wide range of industrial applications.

Applications of Electric Gate Valve

Electric gate valves are used across various industries due to their robust design, high reliability, and ease of automation. Below are some key sectors where these valves find extensive use:

Paper and Pulp Industry

The paper and pulp industry requires precise control over the flow of water, chemicals, and slurry mixtures during production processes. Electric gate valves ensure consistent control, which is essential for maintaining product quality and process efficiency.

Wastewater Treatment Facilities

In wastewater treatment plants, managing the flow of water and sewage is crucial to ensure the safe and effective treatment of waste. Electric gate valves provide remote and automated control, making it easier to handle large volumes of fluid without requiring constant manual intervention.

Cement Manufacturing Plants

Cement plants deal with high-temperature and high-pressure environments, where reliable flow control is essential. Electric gate valves are ideal for managing the flow of gases and fluids used in the manufacturing process, reducing the risk of leakage or malfunction.

Power Generation Plants

Power plants, whether thermal, nuclear, or hydroelectric, rely on electric gate valves to regulate the flow of steam, water, or other fluids used in the generation of power. The automation and precise control offered by electric gate valves enhance plant safety and operational efficiency.

Why Choose Electric Gate Valve?

Electric gate valves offer numerous advantages over their manual counterparts, making them the preferred choice for many industrial applications:

Automation and Remote Control

The ability to operate electric gate valves remotely is a key advantage, especially in large facilities or hazardous environments. By integrating these valves into automated control systems, operators can manage flow rates without being physically present at the valve site.

Precise Control

Electric gate valves provide precise control over the pipeline’s flow, ensuring optimal performance. Whether it’s completely opening or closing the valve, the actuator ensures accurate positioning, reducing the chances of operational errors.

Reduced Manual Labor

Manually operating valves can be time-consuming and labor-intensive, particularly when dealing with large pipelines or high-pressure systems. Electric gate valves eliminate the need for manual operation, thus saving time and reducing labor costs.

Improved Safety

In industrial environments, safety is paramount. Electric gate valves enhance safety by allowing remote operation, which reduces the need for personnel to be present in potentially hazardous areas. Additionally, the precise control they offer minimizes the risk of accidents caused by improper valve operation.

Reliability and Durability

Electric gate valves are built to withstand harsh operating conditions, including high temperatures, high pressures, and corrosive environments. Their robust design ensures long-term reliability, reducing maintenance costs and downtime.

Energy Efficiency

With modern electric actuators, electric gate valves can operate efficiently with minimal energy consumption. This not only reduces operating costs but also contributes to a more sustainable industrial process.

Conclusion

Electric gate valves have become an essential component in industries where precise control of fluid or gas flow is required. Their automation capabilities, combined with the ability to operate remotely, make them a convenient and efficient solution for various applications, from paper and pulp production to wastewater treatment and power generation. By choosing electric gate valves, industries can enhance operational efficiency, reduce labor costs, and improve overall safety.

In a world that increasingly demands automation and efficiency, electric gate valves stand out as a reliable and effective solution for controlling the flow of pipeline media. Whether you are managing a complex industrial facility or looking to upgrade your existing systems, electric gate valves offer the performance, reliability, and ease of use needed to meet today’s industrial demands.
