Introduction

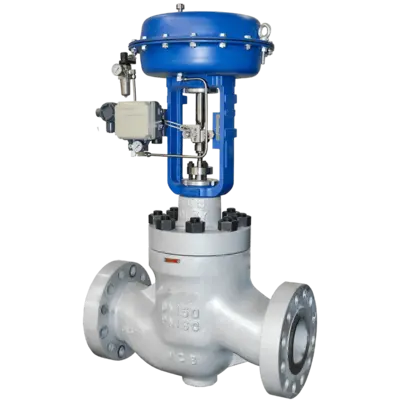

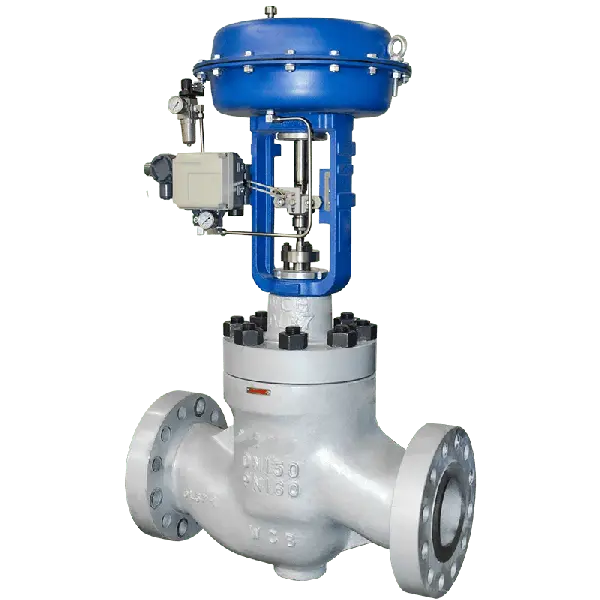

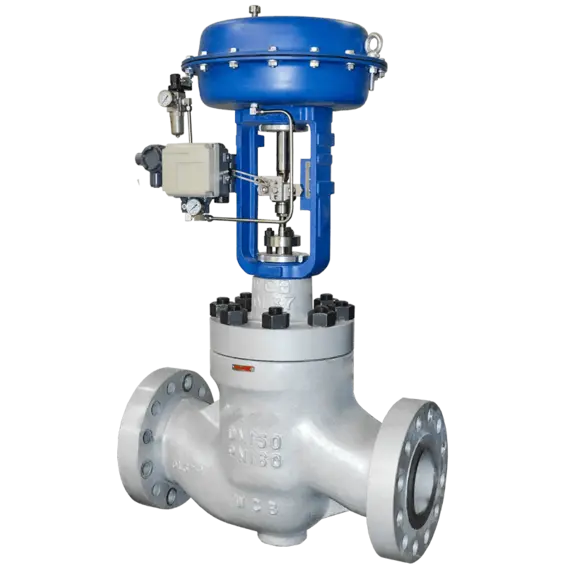

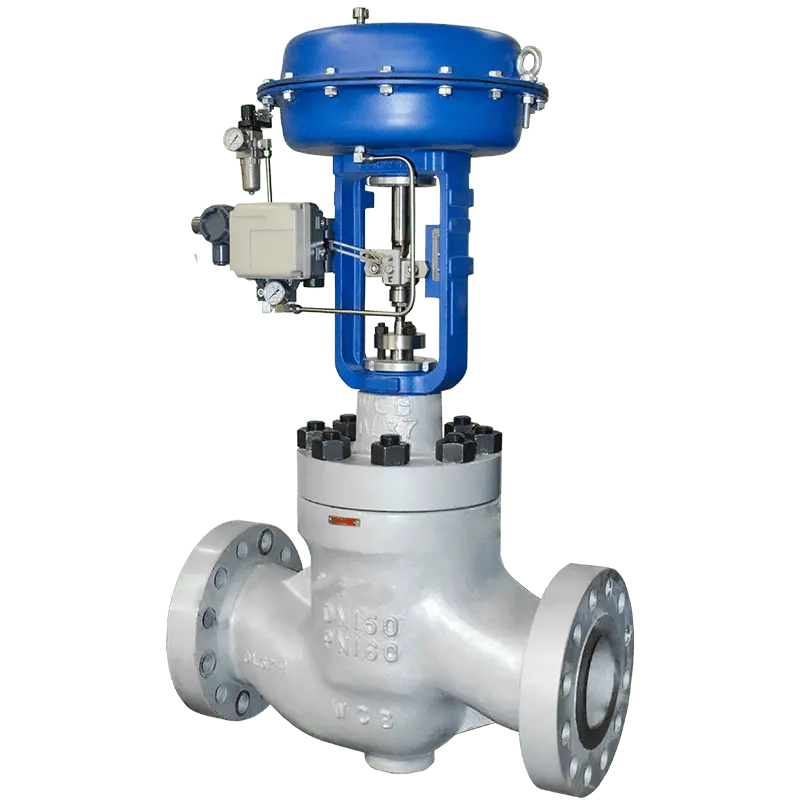

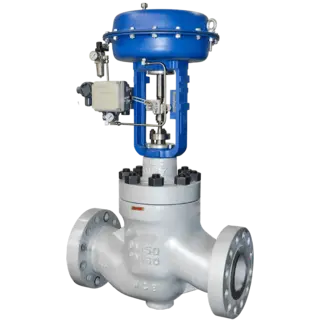

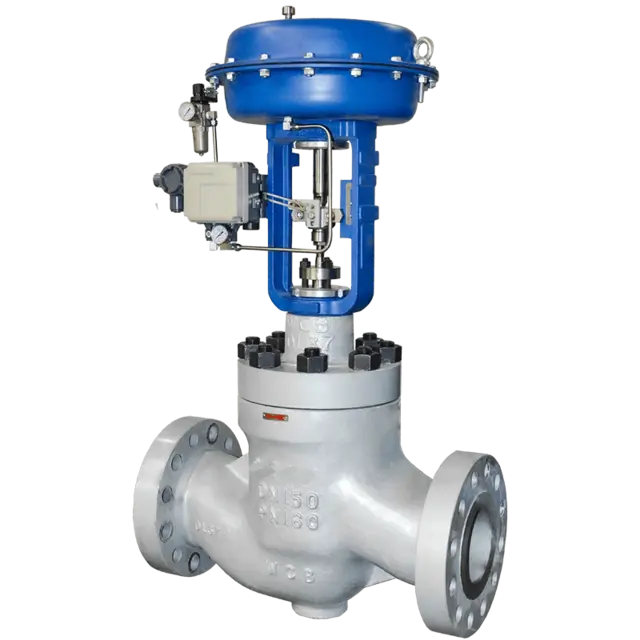

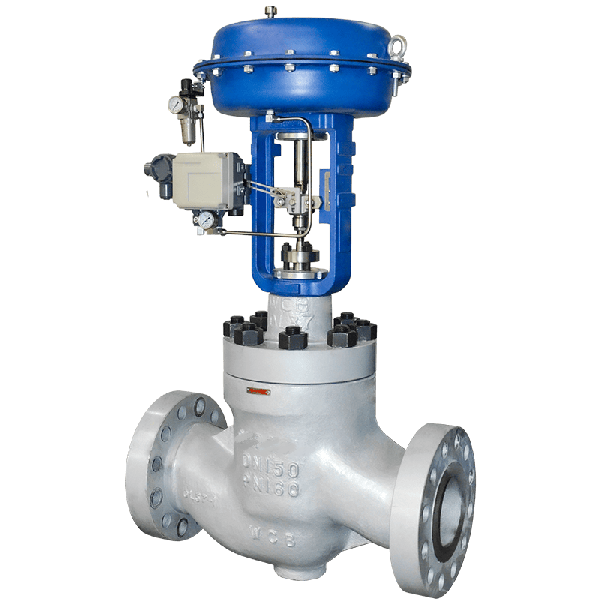

High Pressure Globe Control Valves, also known as Pressure Regulating Valves or Pressure Relief Valves, are essential components designed to maintain and regulate specific pressure levels within systems under high-pressure conditions. These valves play a critical role in ensuring safety, operational efficiency, and the overall reliability of industrial systems. They are commonly used across a variety of industries, particularly where precise pressure control is crucial to prevent system failures or damage.
A key feature of these control valves is their ability to perform under the most demanding conditions, making them an invaluable solution for heavy-load systems. The high performance of high-pressure globe control valves can be attributed to their balanced and cage-guided spools, which enable them to handle both severe service conditions and stringent operational requirements. Thanks to their simple yet versatile construction, they can be used across a wide range of applications, including those involving high temperatures, corrosive fluids, sour service, and noise-sensitive environments.
Performance Advantages of High-Pressure Globe Control Valves
The high-pressure globe control valve stands out due to its superior design and advanced performance features, offering several benefits in industrial applications. These advantages stem from a combination of international design philosophies, robust materials, and precise engineering. Below are some of the key performance advantages:
Modular Design Concept
The valve’s design merges the best aspects of American, Japanese, and German engineering traditions. The American and Japanese designs contribute high-precision control, while the German approach integrates a modular concept. This hybrid design approach ensures flexibility, high reliability, and long-term durability in various industrial settings.
Optimized Valve Body with S-Shaped Distribution
The valve body is engineered with an S-shaped internal cavity that ensures smooth flow without dead ends. This design minimizes turbulence, optimizing flow dynamics and significantly reducing the likelihood of cavitation—a phenomenon that can lead to excessive wear and system damage. Additionally, the valve body incorporates internal guide wings that direct the flow effectively, further reducing the interaction forces of the medium within the valve.
Balanced and Stable Sleeve Guidance
High-pressure globe control valves use sleeve guidance for smooth operation. The large diameter of the guide enhances dynamic stability, allowing for smooth control under varying pressure conditions. This design ensures that the valve operates efficiently even in high-flow or high-pressure situations.
Floating Valve Seat and Tapered Sealing Surface
A floating valve seat and tapered sealing surface are used to ensure optimal alignment of the sealing subcomponents. This design enhances the sealing efficiency, reducing leakage and ensuring reliable performance over time. The tapered sealing surface also contributes to the valve’s ability to handle high pressures without compromising its sealing integrity.
Precise Flow Control Characteristics
The control characteristics of these valves are accurately managed through sleeve window technology. The flow characteristics are finely tuned to match the specific application requirements, with options for equivalent percentage, linear, and quick-opening flow characteristics. This allows for precise control over fluid flow and pressure within the system.
High Differential Pressure Handling
The balanced internal structure of the valve allows it to withstand large differential pressures. As a result, these valves can be used in applications with significant pressure variations, reducing the need for additional pressure-reducing equipment and minimizing operational costs. The small operating force required to control the valve makes it energy efficient, further contributing to system efficiency.
Leakage Control and Compliance
The valves are designed to meet stringent leakage standards, ensuring that they do not compromise system integrity. These valves meet the leakage level requirements as defined in GB/T 17213.4-2005 and IEC 60534-4:1999, achieving Class IV leakage control. This ensures that the pressure-regulating valves do not leak excessively during operation, contributing to better system reliability and safety.
Wide Range of Pipeline Connections
High-pressure globe control valves offer flexibility in installation, with a variety of available pipeline connections. These valves are compatible with different flange types, including RF (Raised Face), RJ (Ring Joint), and welding options such as SW (Socket Weld) and BW (Butt Weld). This versatility makes them suitable for different industrial standards and installation configurations.
Compliant with Industry Standards
The valve’s flange distance meets international standards, including GB/T 17213.3-2005, IEC 60534-3-1:2000, and ISA S75.03-1992. This ensures that the valve can be seamlessly integrated into existing systems that adhere to these globally recognized specifications.
Applications of High-Pressure Globe Control Valves
High-pressure globe control valves are utilized in a wide range of industries and applications that require precise pressure control and regulation. Some key applications include:
Oil and Gas Industry
In upstream and downstream oil and gas operations, these valves are critical for regulating the pressure of fluids in pipelines, tanks, and reactors. They ensure that the pressure remains within safe operating limits, preventing overpressure situations that could result in equipment failure or catastrophic accidents.
Chemical Processing
In chemical plants, where precise control of fluid pressure is essential for safety and process optimization, high-pressure globe control valves help maintain pressure levels within tight specifications. These valves are especially effective in handling corrosive chemicals and high-temperature processes.
Power Generation
Power plants, including those that rely on steam, gas, or hydroelectric systems, use high-pressure globe control valves to maintain the correct pressure in boilers, turbines, and other key components. This ensures the stability of the power generation process and minimizes the risk of system failure.
Water Treatment and Distribution
In municipal water systems, high-pressure globe control valves regulate pressure levels in pipelines to ensure proper distribution and avoid damage to infrastructure. They are also used in desalination plants to control the pressure in reverse osmosis systems.
HVAC Systems
In large commercial and industrial HVAC systems, these valves control the pressure of refrigerants and other fluids circulating through the system, ensuring efficient heat exchange and reducing the risk of overheating or freezing in critical components.
Conclusion
High-pressure globe control valves are essential tools for industries requiring precise pressure control and regulation in demanding conditions. Their robust design, ability to handle high pressures, and versatility make them ideal for a wide range of applications. Whether dealing with corrosive chemicals, high temperatures, or fluctuating pressures, these valves provide reliable and efficient performance.
With advanced features such as modular design, optimized valve bodies, dynamic sleeve guidance, and accurate flow control, high-pressure globe control valves continue to meet the rigorous demands of modern industrial systems. Their compliance with international standards ensures that they can be seamlessly integrated into existing infrastructure, making them a vital component for ensuring safety, efficiency, and performance in high-pressure applications.
As industries evolve and the demands for more efficient, durable, and cost-effective solutions increase, high-pressure globe control valves will continue to play a crucial role in maintaining the stability and safety of critical systems worldwide.
