Introduction
In the world of automation and mechanical engineering, actuators play a crucial role in converting energy into mechanical motion. Among the various types of actuators available, pneumatic and electric actuators are two of the most widely used. Each type has its own set of advantages and disadvantages, making them suitable for different applications. This article delves into the intricacies of pneumatic and electric actuators, exploring their working mechanisms, key differences, and factors to consider when choosing the best actuator for your project.
What is a Pneumatic Actuator?

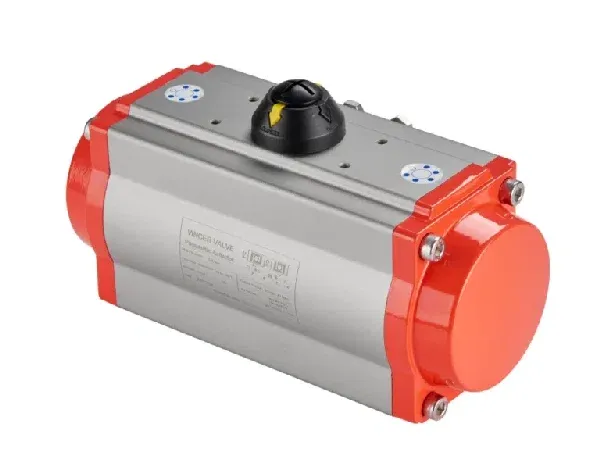

A pneumatic actuator is a device that converts energy, typically in the form of compressed air, into mechanical motion. These actuators are known by several names within the industry, including pneumatic cylinders, air cylinders, and air actuators. Regardless of the terminology, they all refer to the same device.
Pneumatic actuators consist of a piston, cylinder, and control valves or ports. They can convert energy into either linear or rotary mechanical motions, depending on whether the application requires a pneumatic rotary actuator or a linear actuator.
How Does a Pneumatic Actuator Work?
Pneumatic actuators rely on the presence of pressurized gas or compressed air entering a chamber. As the pressure within the chamber builds up and exceeds the required levels compared to the atmospheric pressure outside, it creates a controlled kinetic movement of a piston or gear. This movement can be directed in either a straight line (linear motion) or a circular path (rotary motion).
The simplicity of pneumatic actuators lies in their reliance on compressed air, which is readily available in many industrial settings. The absence of complex electrical components makes them relatively easy to maintain and repair. However, their efficiency can be affected by factors such as air quality, pressure fluctuations, and the need for a continuous supply of compressed air.
What is an Electric Actuator?
An electric actuator, on the other hand, is a device that creates movement of a load or performs an action requiring force, such as clamping, using an electric motor to generate the necessary force. Electric actuators are known for their precision, control, and ability to handle complex motion profiles.
How Does an Electric Actuator Work?
An electric actuator operates by converting the rotary motion of an electric motor into linear motion. The motor spindle, or rotor, rotates and is directly coupled to a helical screw via the drive shaft. As the spindle rotates, the helical screw turns within a ball screw nut, driving the nut forward or backward along the screw.
A hollow piston rod is attached to the ball screw nut, creating linear motion as the motor rotates clockwise or counterclockwise. The motor is controlled by an electric drive, which allows for variable rotation speeds and, consequently, adjustable linear speeds of the actuator. A feedback mechanism provides positional information, enabling the actuator to be programmed to move to specific positions, stop, and then continue or return to its rest position.
The power of the motor determines the torque that can be generated, which in turn dictates the force that can be applied through the actuator. Electric actuators are highly versatile and can be used in a wide range of applications, from simple positioning tasks to complex motion control systems.

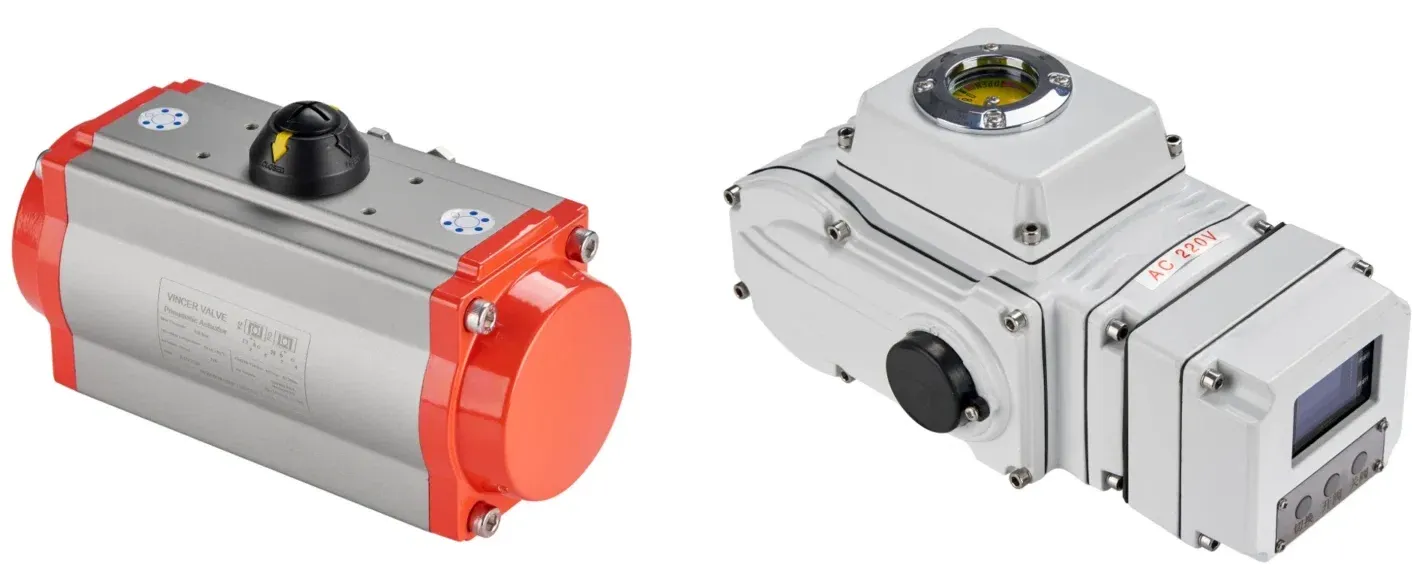

Key Differences Between Pneumatic and Electric Actuators
Energy Source
Pneumatic actuators use compressed air, while electric actuators rely on electricity. This fundamental difference affects their suitability for various environments and applications.
Control and Precision
Electric actuators offer superior control and precision compared to pneumatic actuators. They can be programmed for complex motion profiles and provide accurate positional feedback, making them ideal for applications requiring high precision.
Speed and Force
Pneumatic actuators are generally faster and can generate higher forces in a compact form factor. However, electric actuators can achieve similar performance with the right motor and drive configuration.
Maintenance and Durability
Pneumatic actuators are known for their durability and low maintenance requirements, as they have fewer moving parts and are less susceptible to electrical issues. Electric actuators, while more complex, offer longer service life and reduced wear and tear due to their precise control mechanisms.
Cost
Pneumatic actuators are typically less expensive upfront and have lower operating costs in environments where compressed air is readily available. Electric actuators, while more costly initially, can be more cost-effective in the long run due to their energy efficiency and reduced maintenance needs.
Environmental Impact
Electric actuators are generally more environmentally friendly, as they do not require compressed air and can be powered by renewable energy sources. Pneumatic actuators, while efficient, rely on compressed air, which can be energy-intensive to produce.
How to Choose the Best Actuator for Your Project?
Selecting the right actuator for your project involves considering several factors, including the specific requirements of your application, environmental conditions, and budget constraints. Here are some key considerations to help you make an informed decision:
Application Requirements
Determine the type of motion required (linear or rotary), the force needed, and the level of precision and control. Electric actuators are better suited for applications requiring high precision and complex motion profiles, while pneumatic actuators are ideal for high-speed, high-force applications.
Environmental Conditions
Consider the operating environment, including temperature, humidity, and exposure to dust or corrosive substances. Pneumatic actuators are generally more robust and can operate in harsh conditions, whereas electric actuators may require additional protection or cooling mechanisms.
Energy Efficiency
Evaluate the energy efficiency of the actuator. Electric actuators are typically more energy-efficient, especially in applications requiring frequent starts and stops. Pneumatic actuators, while efficient, can be less energy-efficient due to the need for continuous compressed air supply.
Maintenance and Lifespan
Assess the maintenance requirements and expected lifespan of the actuator. Pneumatic actuators are known for their durability and low maintenance, while electric actuators offer longer service life and reduced wear and tear due to their precise control mechanisms.
Cost
Consider both the initial cost and the long-term operating costs. Pneumatic actuators are generally less expensive upfront and have lower operating costs in environments with readily available compressed air. Electric actuators, while more costly initially, can be more cost-effective in the long run due to their energy efficiency and reduced maintenance needs.
Integration and Control
Evaluate the ease of integration with your existing systems and the level of control required. Electric actuators offer greater flexibility in terms of control and integration with automation systems, making them suitable for complex applications.
Conclusion
Both pneumatic and electric actuators have their own unique advantages and disadvantages, making them suitable for different applications. Pneumatic actuators are known for their speed, force, and durability, making them ideal for high-speed, high-force applications in harsh environments. Electric actuators, on the other hand, offer superior precision, control, and energy efficiency, making them suitable for applications requiring complex motion profiles and high precision.
When choosing the best actuator for your project, it is essential to consider the specific requirements of your application, environmental conditions, energy efficiency, maintenance needs, and cost. By carefully evaluating these factors, you can select the actuator that best meets your needs and ensures optimal performance and reliability.
In conclusion, the choice between pneumatic and electric actuators ultimately depends on the specific demands of your project. Both types of actuators have their place in the world of automation, and understanding their differences and capabilities will help you make an informed decision that aligns with your project goals.
